4-206 Service Manual

7510

3X 500-sheet drawer (3TM) removals

3X 500-sheet drawer (3TM)

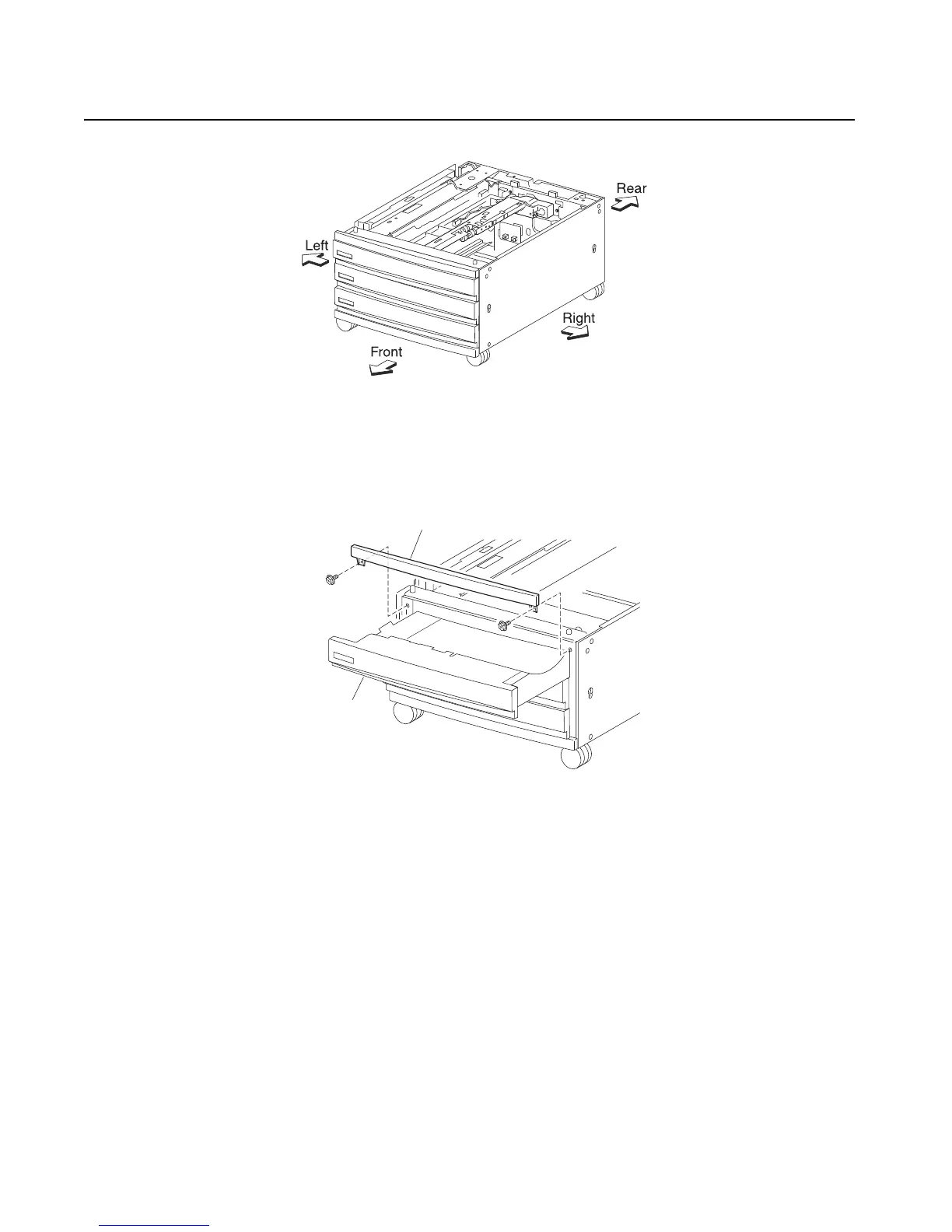

—top cover removal

1. Pull out tray 2 assembly (A).

2. Remove the two screws securing the top cover (B).

3. Remove the top cover (B).
