Repair information 4-219

7510

3X 500-sheet drawer (3TM)—media out actuator removal

1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal

(tray 2)” on page 4-215 or “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on

page 4-213.

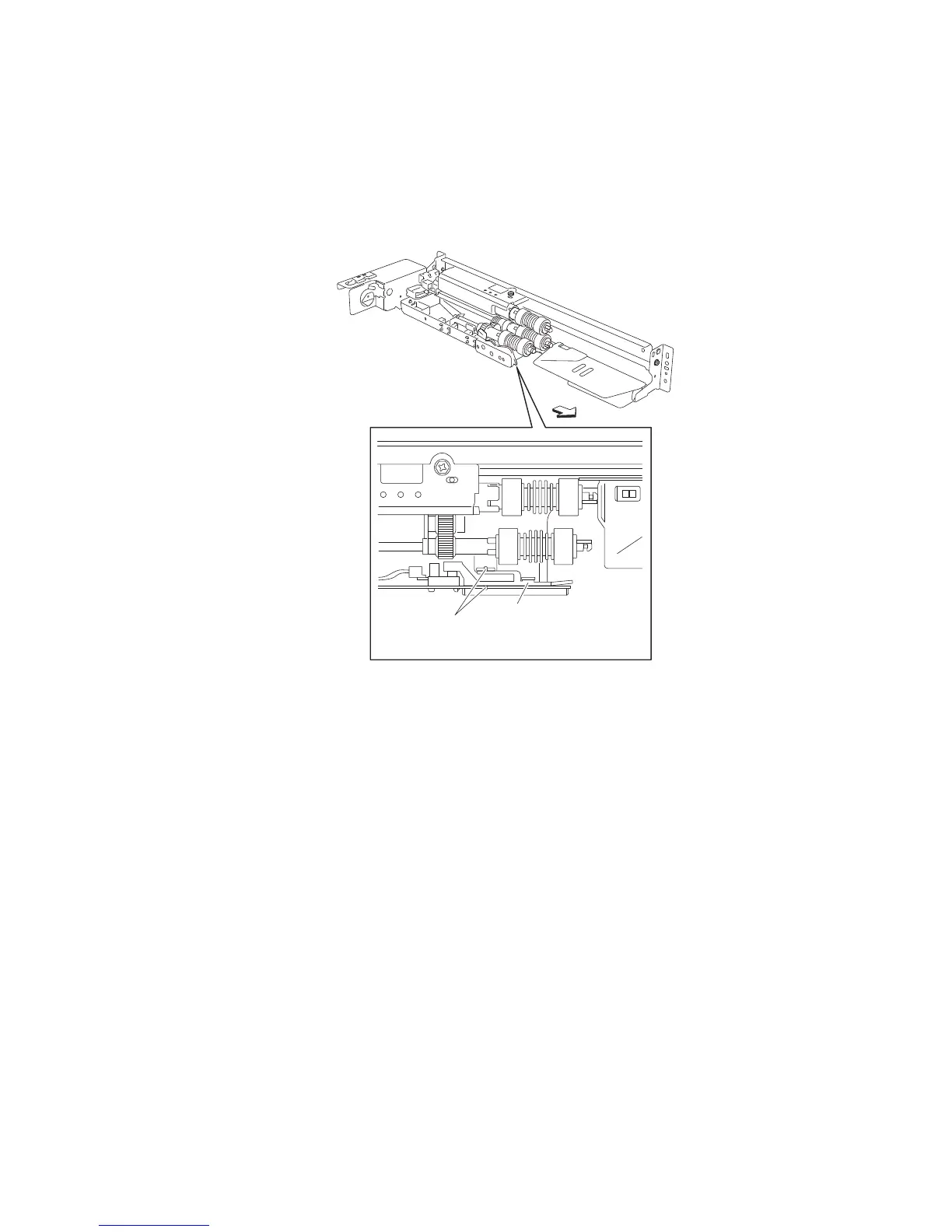

2. Release the two bosses on the media out actuator (A) from the media feed unit assembly.

3. Remove the media out actuator (A).

Front

Bosses

Lower view
