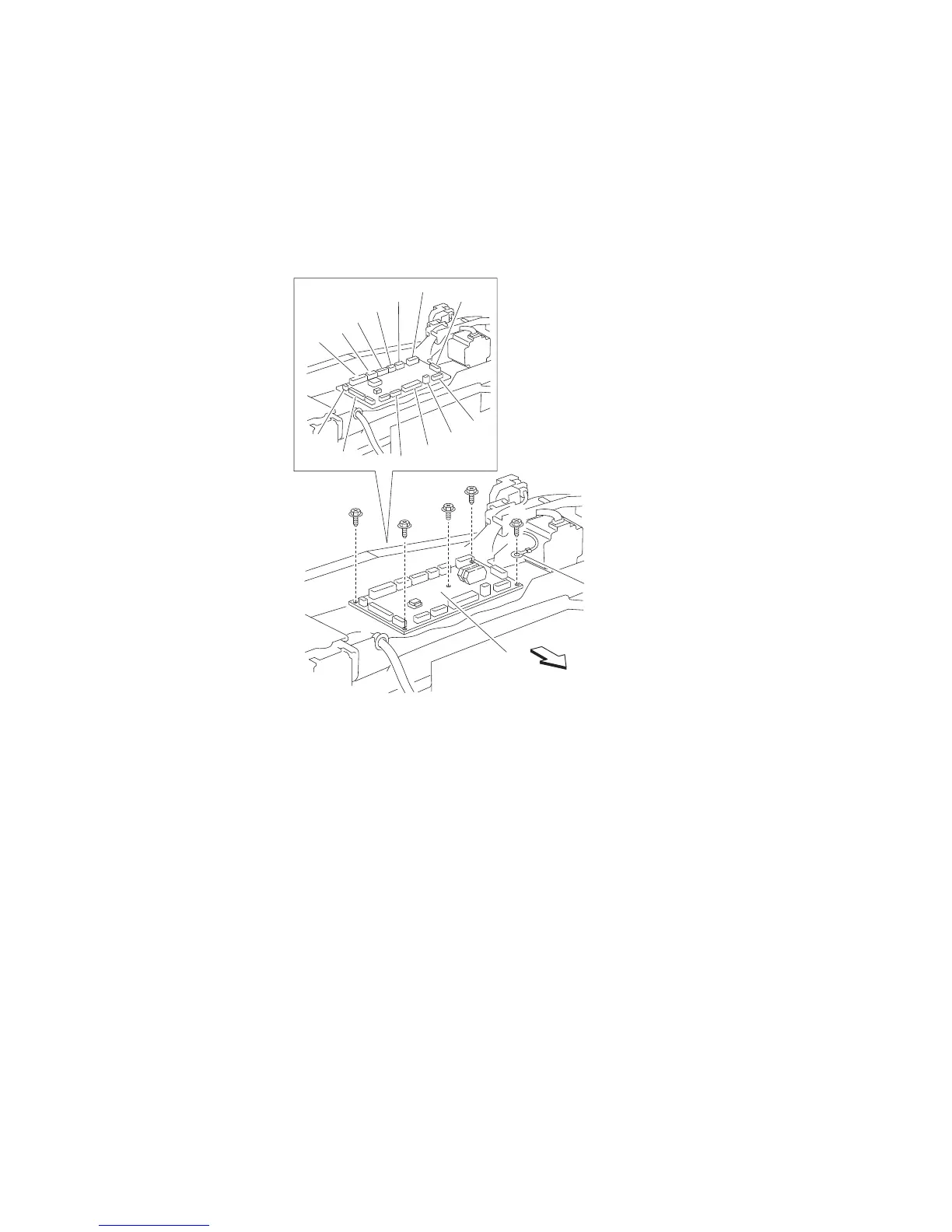

ADF controller card assembly removal

1. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-131.

2. Disconnect all connectors from the ADF controller card assembly (A).

3. Remove the five screws securing the ADF controller card assembly (A).

4. Remove the ADF controller card assembly (A).

Replacement note: Ensure that all connections are properly reconnected.

Replacement note: Ensure that the ground wire is reconnected.

P760

P759

P758

P785

P761

P751

P752

P753

P754

P755

P786

P756

P757

Rear

Ground wire
