4-158 Service Manual

7510

6. Remove the sensor (document set) (A).

Sensor (sheet through) removal

1. Open the ADF left cover assembly.

2. Lift the document tray assembly.

3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-131.

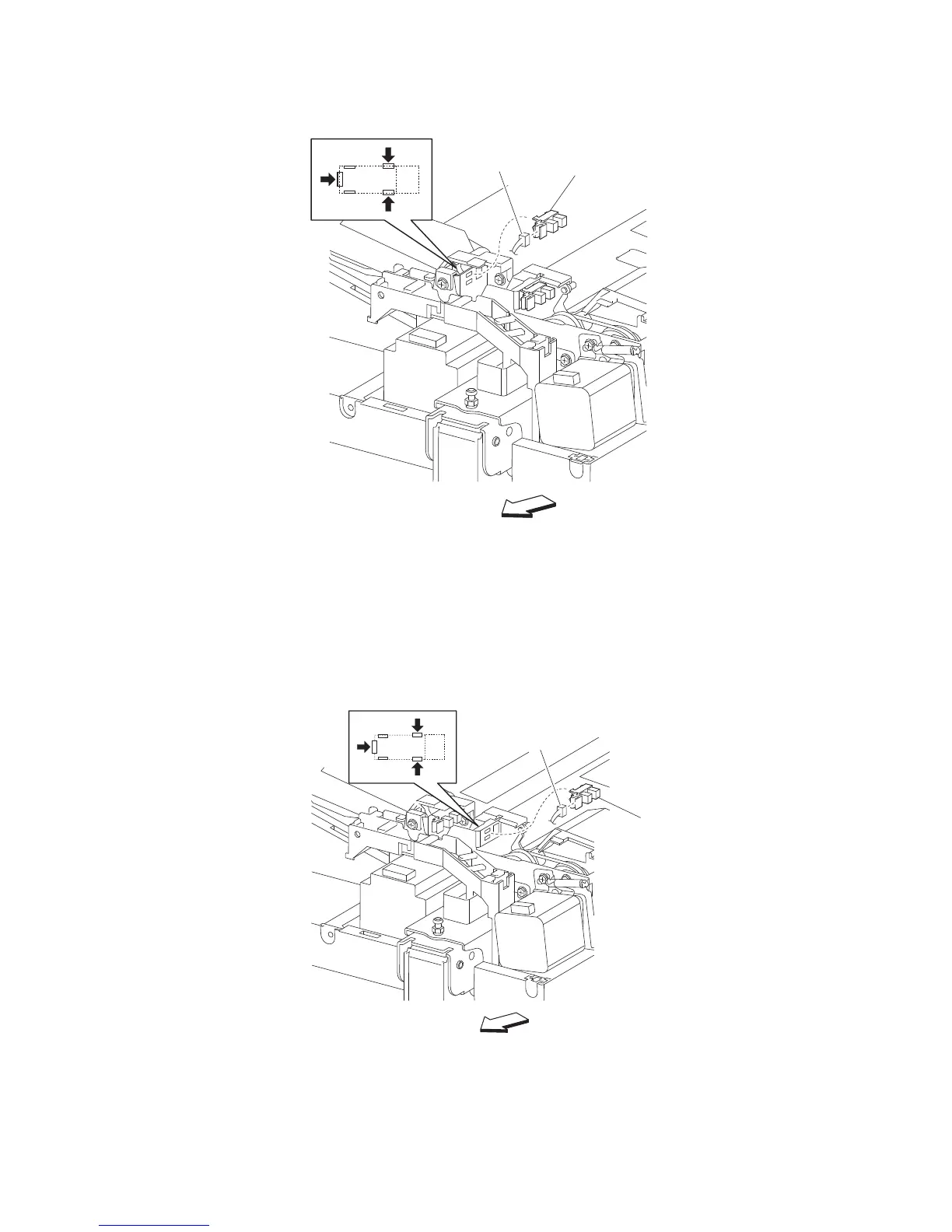

4. Disconnect the connector from the sensor (sheet through) (A).

5. Release the hooks securing the sensor (sheet through) (A).

6. Remove the sensor (sheet through) (A).

Connector

Rear

Connector

Default Chapter3
