7-52 MFP Service Manual

7510

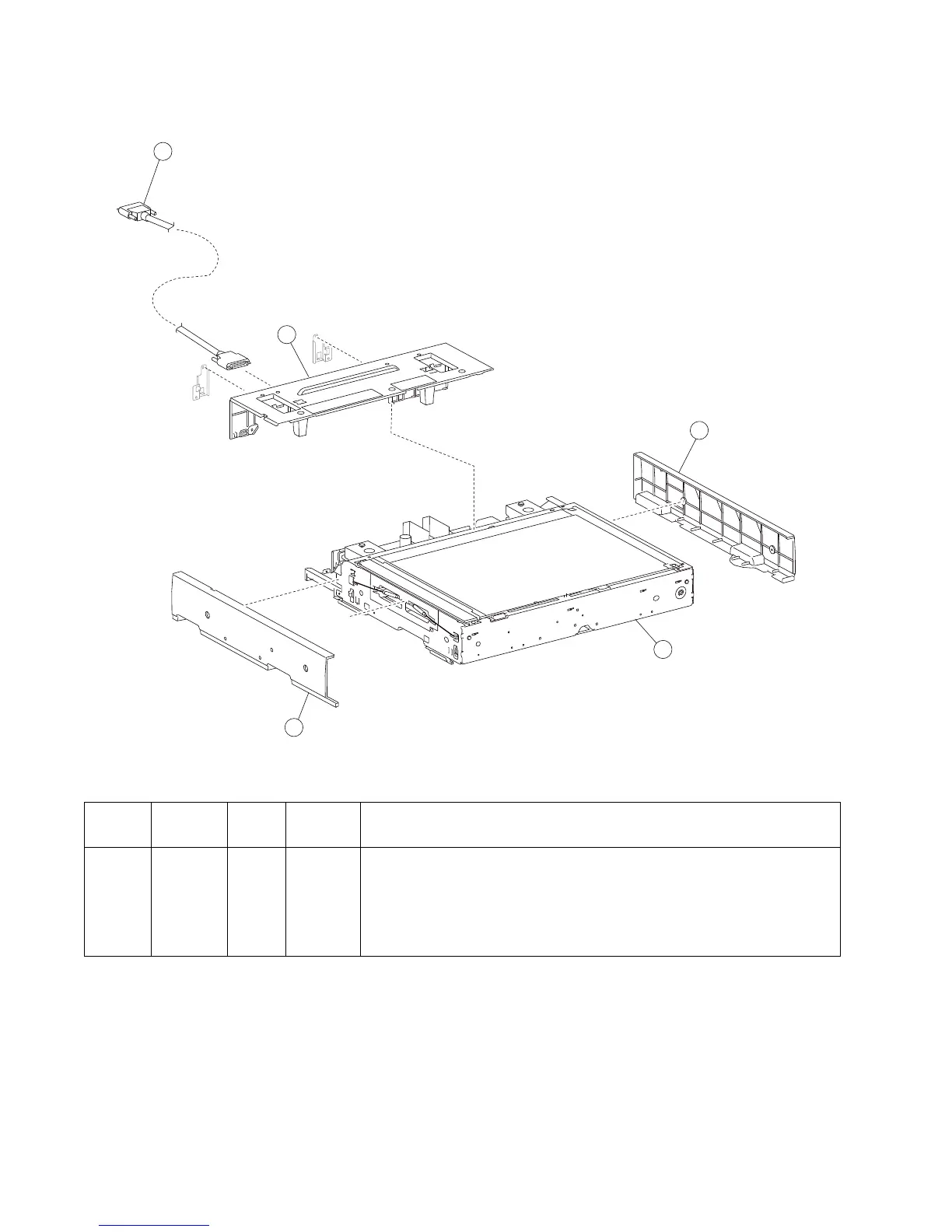

Assembly 42: Scanner covers

Asm

Index

Part

number

Units/

mach

Units/ kit

or pkg

Description

1 40X3852 1 1 Scanner right cover

2 40X4094 1 1 Complete scanner assembly (this comes assembled)

3 40X3851 1 1 Scanner left cover

4 40X3855 1 1 Scanner interface cable assembly

5 40X3856 1 1 Scanner rear cover assembly
