Repair information 4-93
7510

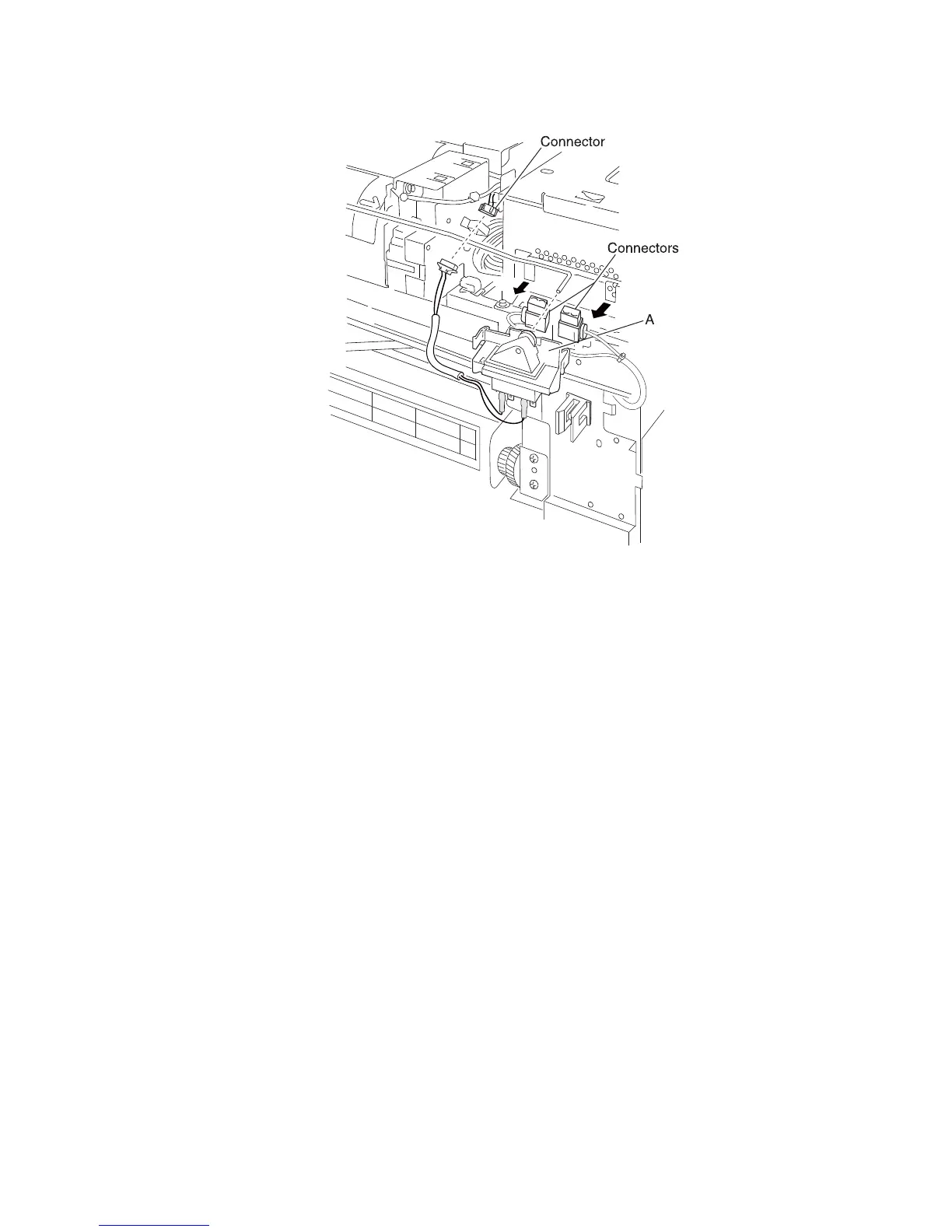

6. Remove the main power switch actuator (A).
CMYK toner add motor assembly removal
1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3.
2. Remove the front left cover. See “Front left cover removal” on page 4-9.
3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39.
4. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly removal”
on page 4-39.
5. Remove the inner cover. See “Inner cover removal” on page 4-43.
6. Remove the three CMY toner add assemblies. See “CMY toner add assembly removal” on page 4-47.
7. Remove the K toner add assembly. See “K toner add assembly removal” on page 4-48.
8. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
9. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4.
10. Remove the top cover assembly. See “Top cover assembly removal” on page 4-4.
11. Remove the main power switch actuator. See “Main power switch actuator removal” on page 4-92.
12. Remove the two screws securing the CMYK toner add motor assembly (A) to the machine.
13. Lift the CMYK toner add motor assembly (A) slightly, and pull it towards the front of the machine.
14. Release the harnesses from the clamps.
15. Disconnect the connector from the CMYK toner add motor assembly (A).
16. Release the tabs securing the four sensors (toner RFID) to the assembly.
17. Remove the four sensors (toner RFID).
To Next Page
