7. Remove the appropriate CMY toner add assemblies (A).
K toner add assembly removal
Warning: Ensure the three CMY toner add assemblies are removed before removing the K toner add assembly,
or damage will occur.
1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3.
2. Remove the front left cover. See “Front left cover removal” on page 4-9.
3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39.
4. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly removal”
on page 4-39.
5. Remove the inner cover. See “Inner cover removal” on page 4-43.
6. Remove the three CMY toner add assemblies. See “CMY toner add assembly removal” on page 4-47.
7. Remove the screw securing the K toner add assembly (A) to the machine.
Warning: Pull the shutter to reduce toner spillage into the machine.
8. Remove the K toner add assembly (A).

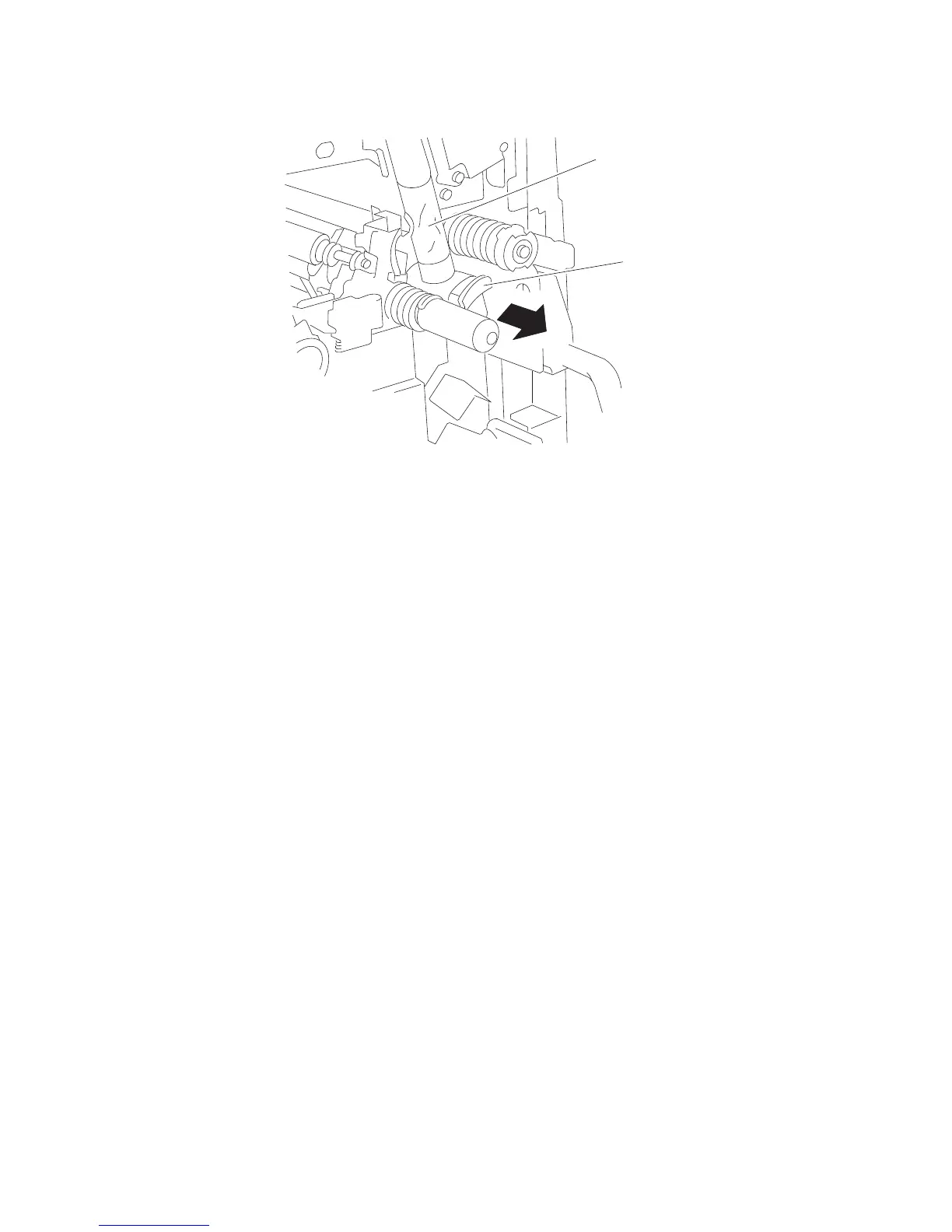

A
Shutter
