Name: Lexmark 940e - X Color Laser
Brand: Lexmark
Rating: 4 (1 reviews)

To Next Page

To Previous Page

Parts catalog 7-19

7510

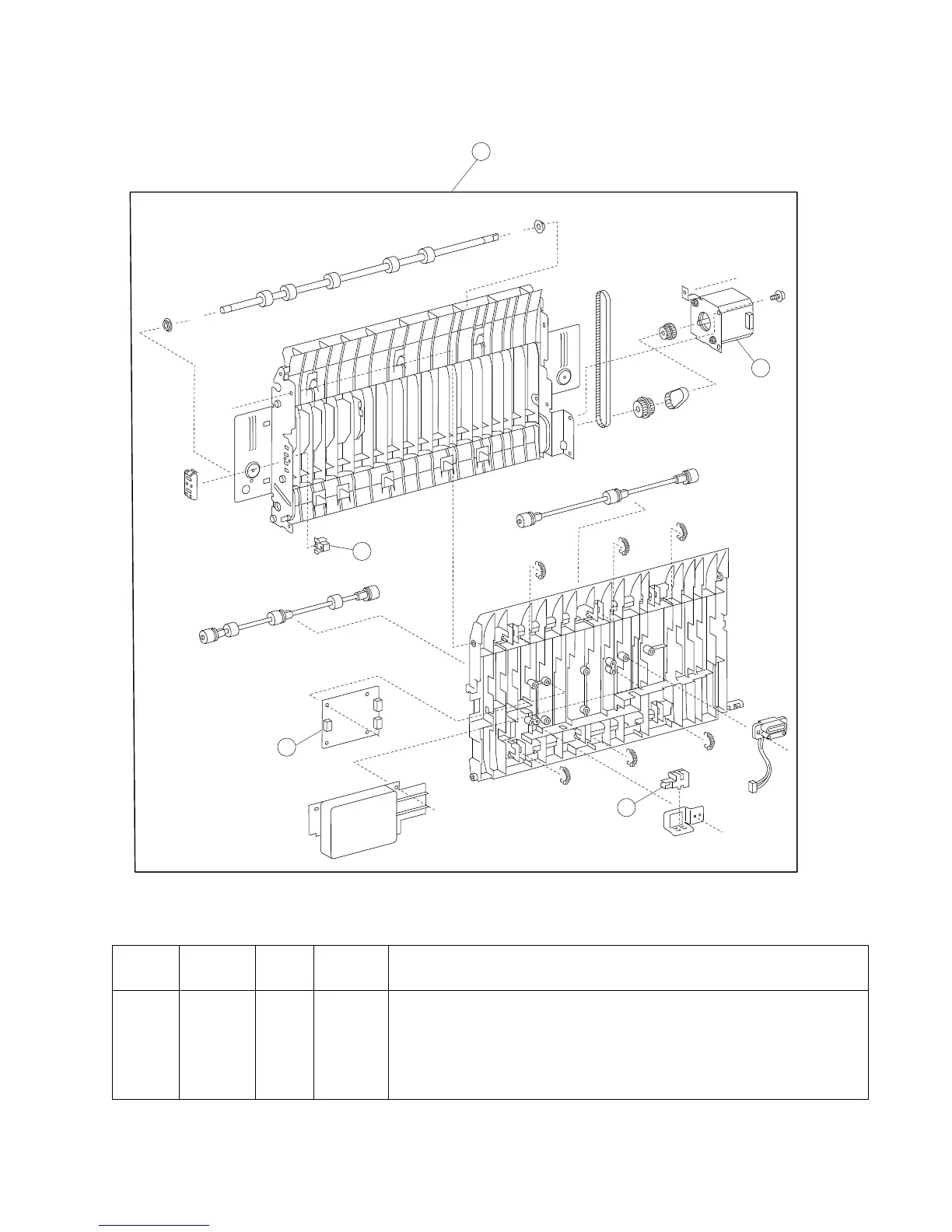

Assembly 17: Duplex 2

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3799 1 1 Duplex unit assembly (this comes assembled)

2 40X3802 1 1 Duplex drive motor

3 40X3801 1 1 Sensor (duplex wait)

4 40X3800 1 1 Duplex controller card assembly

5 40X3803 1 1 Switch (duplex left door interlock)
