7-20 MFP Service Manual

7510

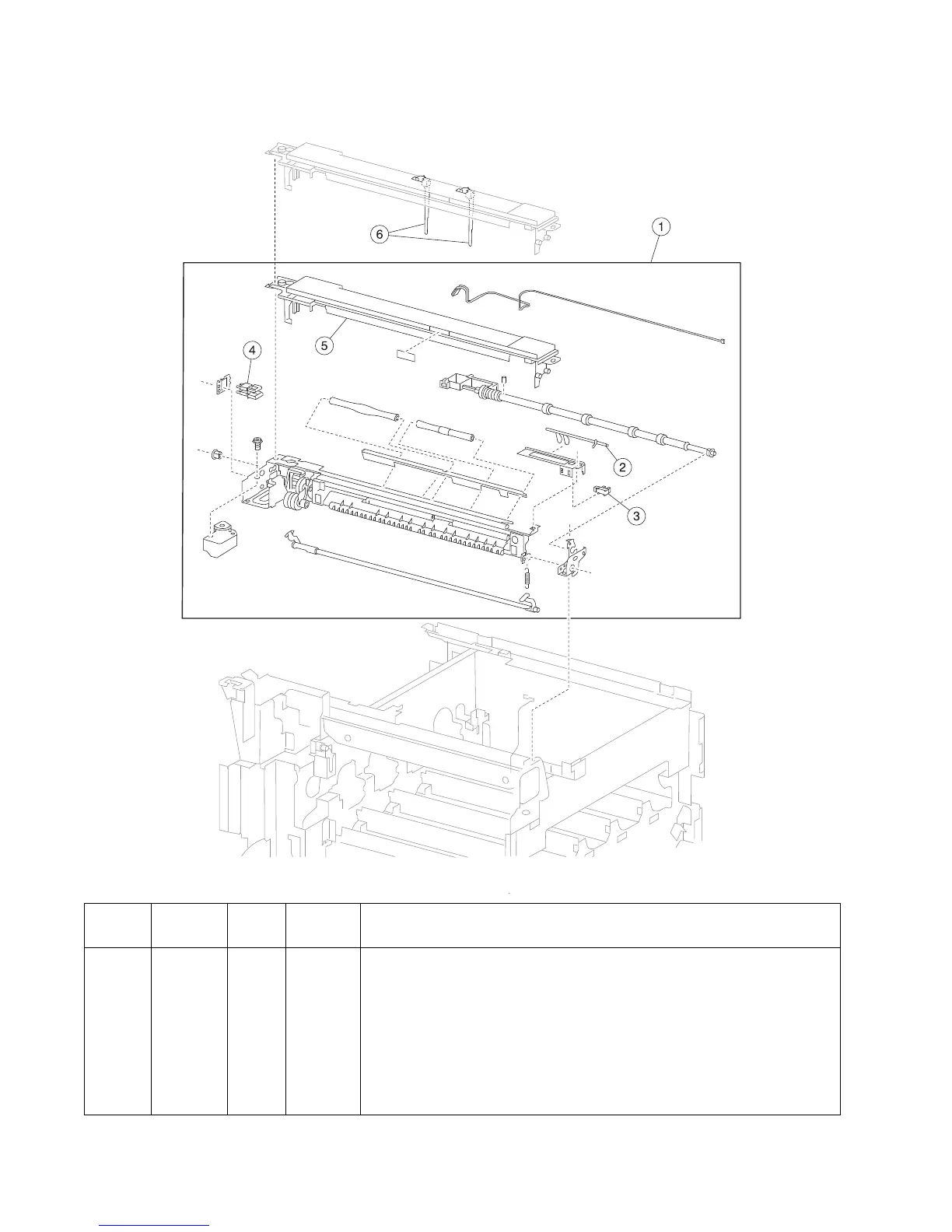

Assembly 18: Standard media exit shift

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3705 1 1 Standard media exit shift assembly (this comes assembled)

2 40X3707 1 1 Standard bin full actuator

3 40X3688 30 1 Sensor (standard bin full)

4 40X0553 3 1 Switch (printer left door interlock)

5 40X3706 1 1 Standard exit top cover

6 40X4080 1 3 Standard output bin paper weight assembly

• Paper weight (2)

• Installation template
