Lexmark 940e - X Color Laser Service Manual

4-114 Service Manual
7510

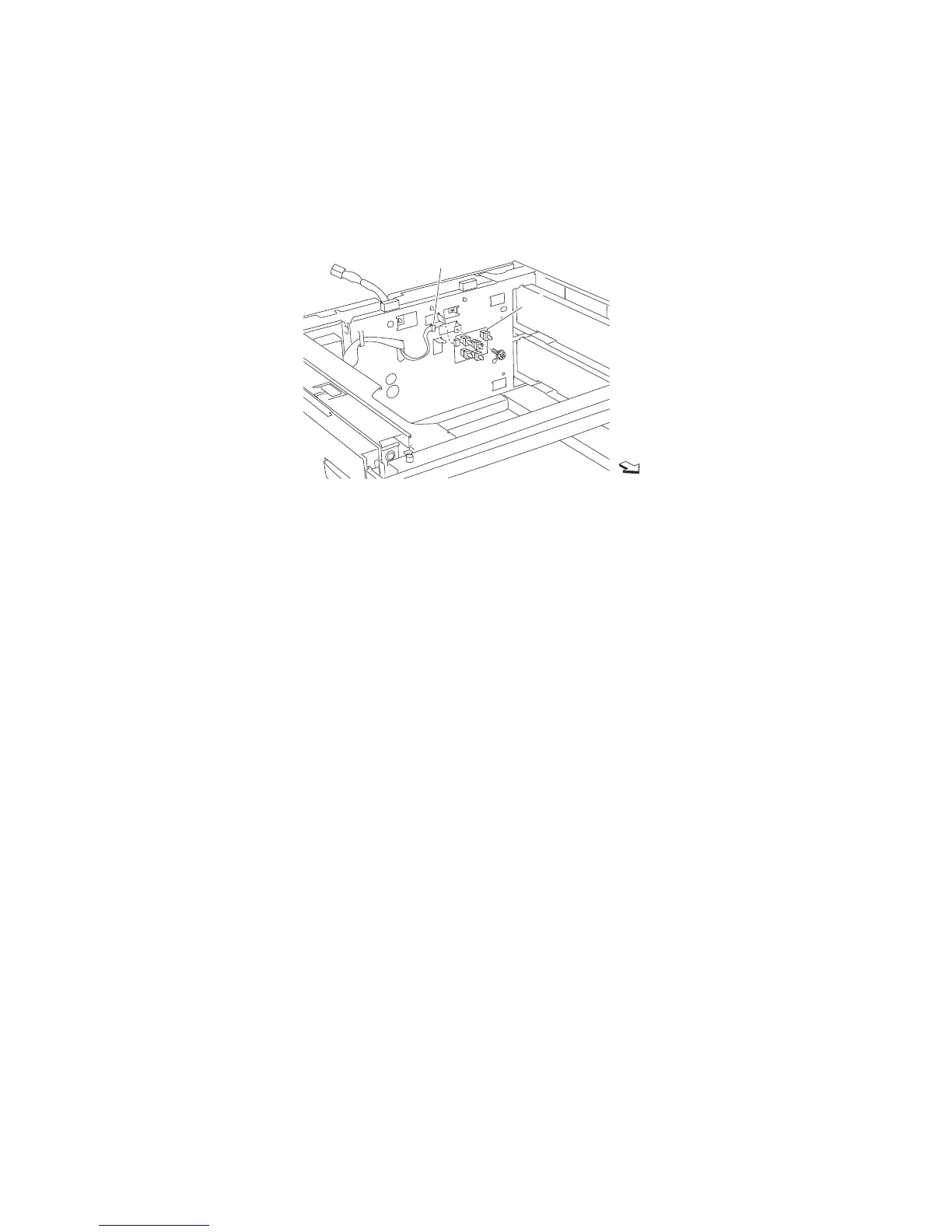

Switch (media size) removal
Note: This procedure can be applied to tray 1 or tray 2 switch (media size).
1. Remove media Tray 1 and media Tray 2.
2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine.
3. Remove the connector from switch (media size) (A).
4. Remove the switch (media size) (A).
A
Connector
Front
