4-12 Service Manual
7510
Duplex media exit turn guide removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-8.
4. Remove the printer left door assembly. See “Printer left door assembly removal” on page 4-26.
5. Lay the printer left door assembly on a flat surface.

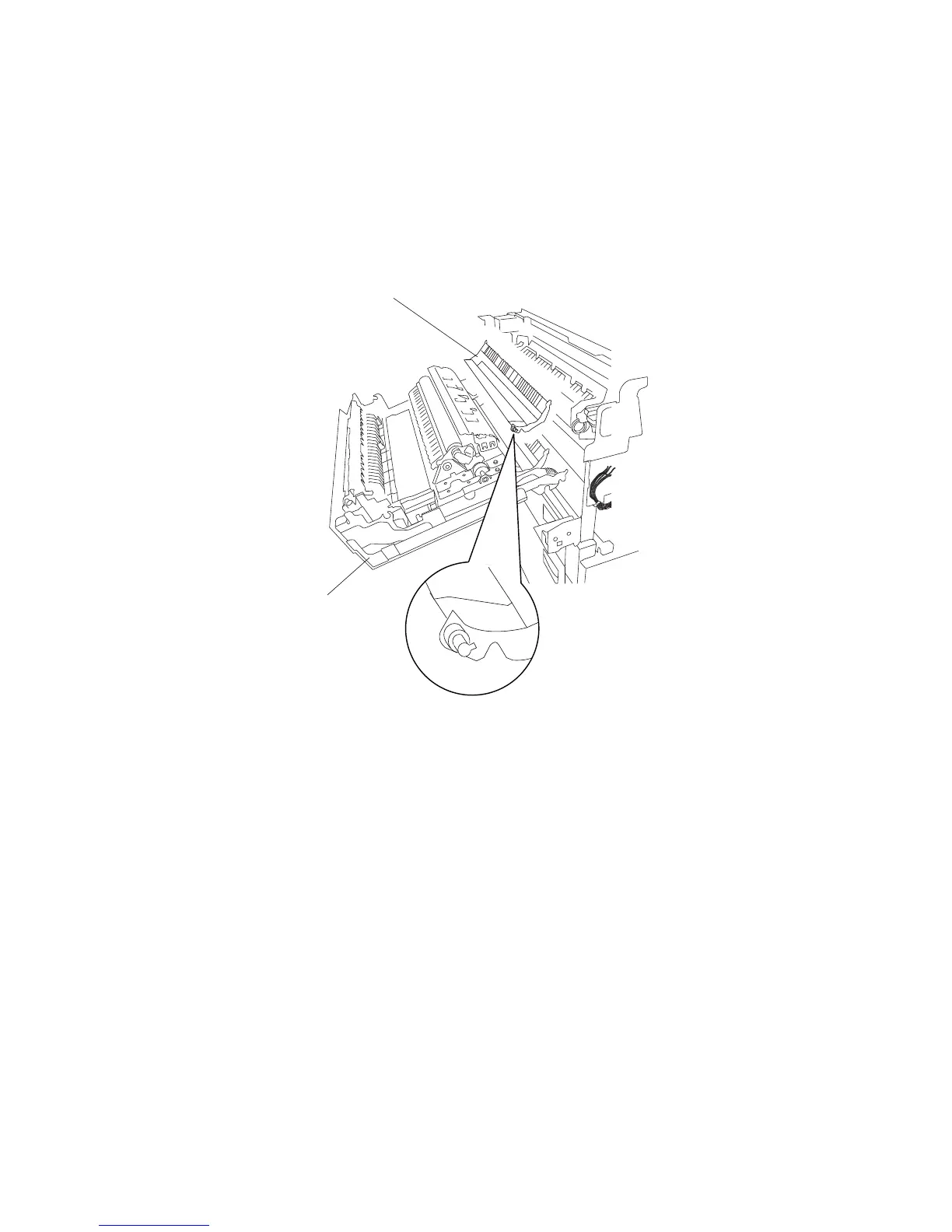

6. Move the duplex media exit turn guide (A) toward the rear, and release the hook from the front hinge.
7. Remove the duplex media exit turn guide (A).
Replacement note: When replacing the printer left door assembly (B), ensure that the black lines are aligned on
the damper assembly (C), or the door will not properly operate.
A
B
