4-176 Service Manual
7510

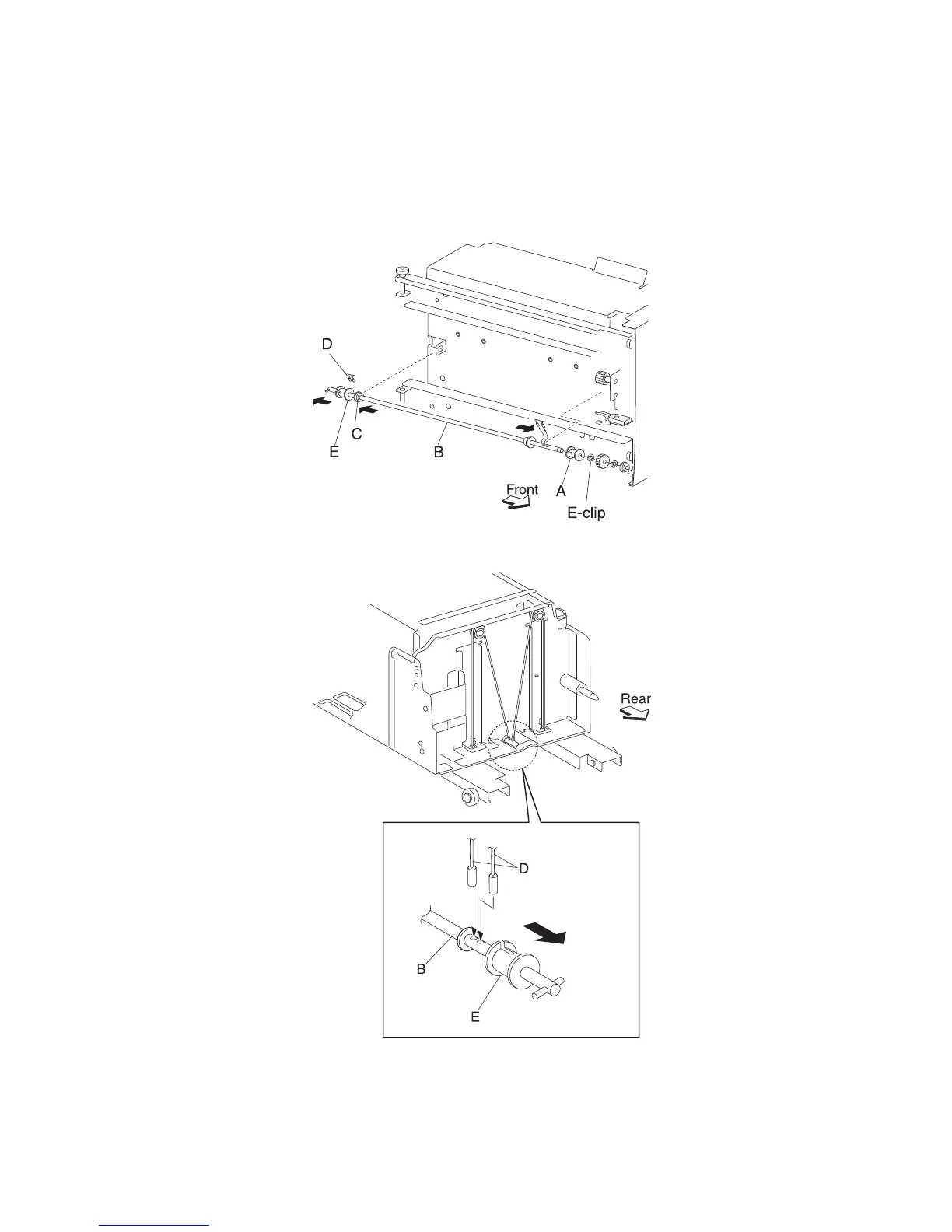

5. Gently move the tray lift shaft assembly (B) toward the rear of the tray and detach the rear bushing (C) from the
frame.
Note: Do not remove the front lift cable pulley (A), or the front lift cables will become detached.
6. Move the rear portion of the tray lift shaft assembly (B) away from the frame.
7. Move the rear the rear lift cable pulley (E) toward the rear of the tray to release the two tray 4 rear cables (D) from
the tray lift shaft assembly (B).
8. Remove the two tray 4 rear cables (D) from the tray lift shaft assembly (B).
9. Place the TTM media tray 4 assembly back to its upright position.
10. Remove two E-clips with a prying tool securing the two small pulleys (F) on the rear of the frame assembly.
11. Remove two small guides (G) and two small pulleys (F).
To Next Page
