Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 170
Parameter Description
Location
(Strip Height, Strip X,
and Strip Z
measurements only)
Specifies the strip position from which the measurements are performed.
Left - Left edge of the strip.
Right - Right edge of the strip.
Center - Center of the strip.
Left Edge
Right Edge
Specifies the features that will be considered as the strip's left and right edges. You can
select more than one condition.
Rising - Rising edge detected based on the strip edge parameters.
Falling - Falling edge detected based on the strip edge parameters.
Data end - First valid profile data point in the measurement region.
Void - Gap in the data that is larger than the maximum void threshold. Gaps connected
to the measurement region's boundary are not considered as a void.
See "Strip Start and Terminate Conditions" in the Gocator Measurement Tool Technical
Manual for the definitions of these conditions.
Select Type Specifies how a strip is selected when there are multiple strips within the measurement
area.
Best - The widest strip.
Index Left - 0-based strip index, counting from left to right.
Index Right - 0-based strip index, counting from right to left.
Index 0-based strip index.
Min Height Specifies the minimum deviation from the strip base. See "Strip Step Edge Definitions"
in the Gocator Measurement Tool Technical Manual on how this parameter is used for
different base types.
Support Width Specifies the width of the region around the edges from which the data is used to
calculate the step change. See "Strip Step Edge Definitions" in the Gocator
Measurement Tool Technical Manual on how this parameter is used by different base
types.
Transition Width Specifies the nominal width needed to make the transition from the base to the strip.
See "Strip Step Edge Definitions" in the Gocator Measurement Tool Technical Manual on
how this parameter is used by different base types.

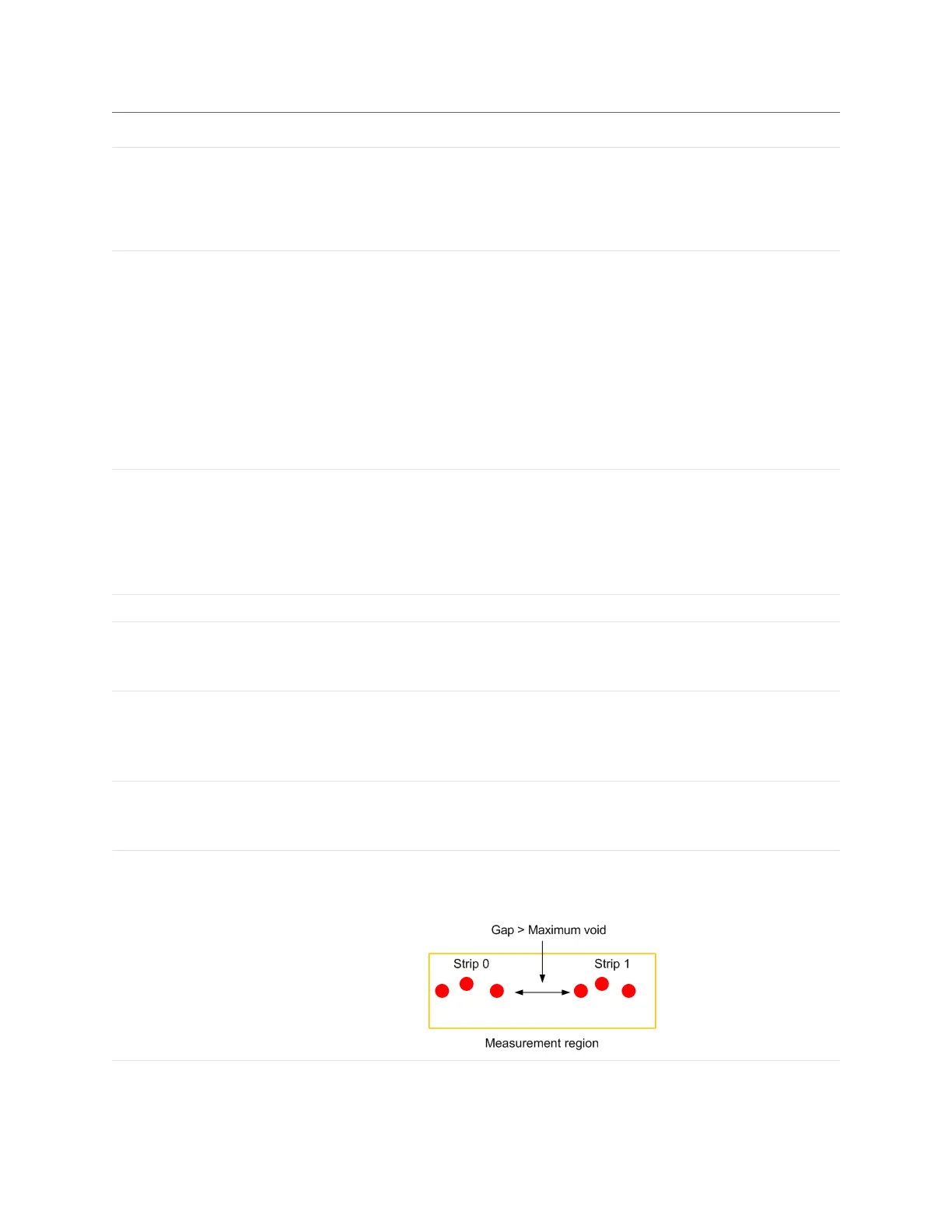

Max Void Width The maximum width of missing data allowed for the data to be considered as part of a
strip when Void is selected in the Left or Right parameter. This value must be smaller
than the edge Support Width.
