Gocator 2300 & 2880 Series
Gocator Web Interface • Measurement • 192
Parameter Description
Width Tolerance The maximum variation from the nominal width (+/- from the nominal value).
Length Tolerance The maximum variation from the nominal length (+/- from the nominal value).
Angle Tolerance The maximum variation from the nominal orientation (+/- from the nominal value).
Partial Detection Enable if only part of the opening is within the measurement region. If disabled, the
opening must be completely in the region of interest for results to be valid.
Depth Limit Data below this limit (relative to the surface) is excluded from the opening
calculations.

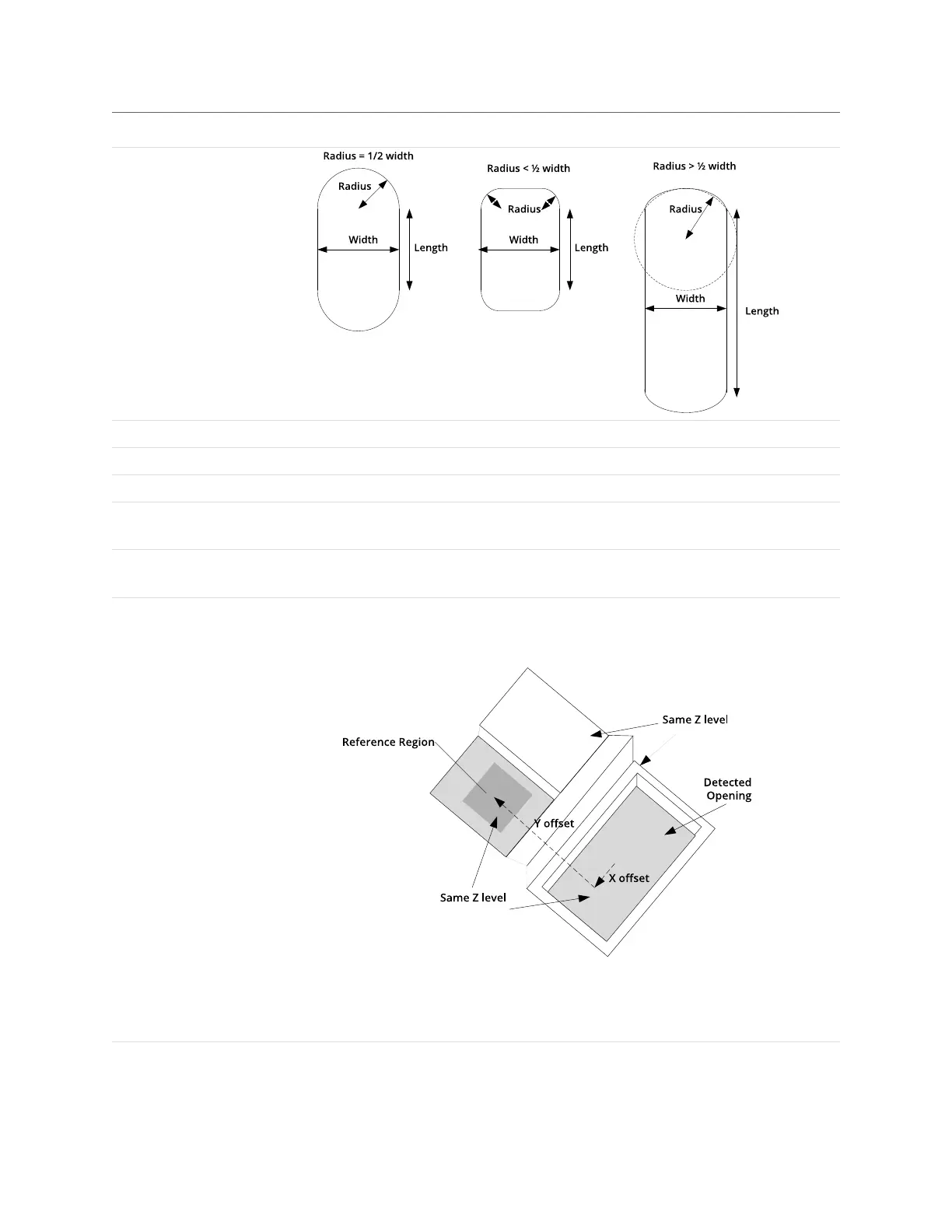

Reference Regions The algorithm uses reference regions to calculate the Z position of the opening.
Reference regions are relative to the center location of the feature. This option is
typically used in cases where the surface around the opening is not flat.
When the Reference Regions setting is disabled, the tool measures the opening's Z
position using the all data in the measurement region, except for a bounding
rectangular region around the opening.
