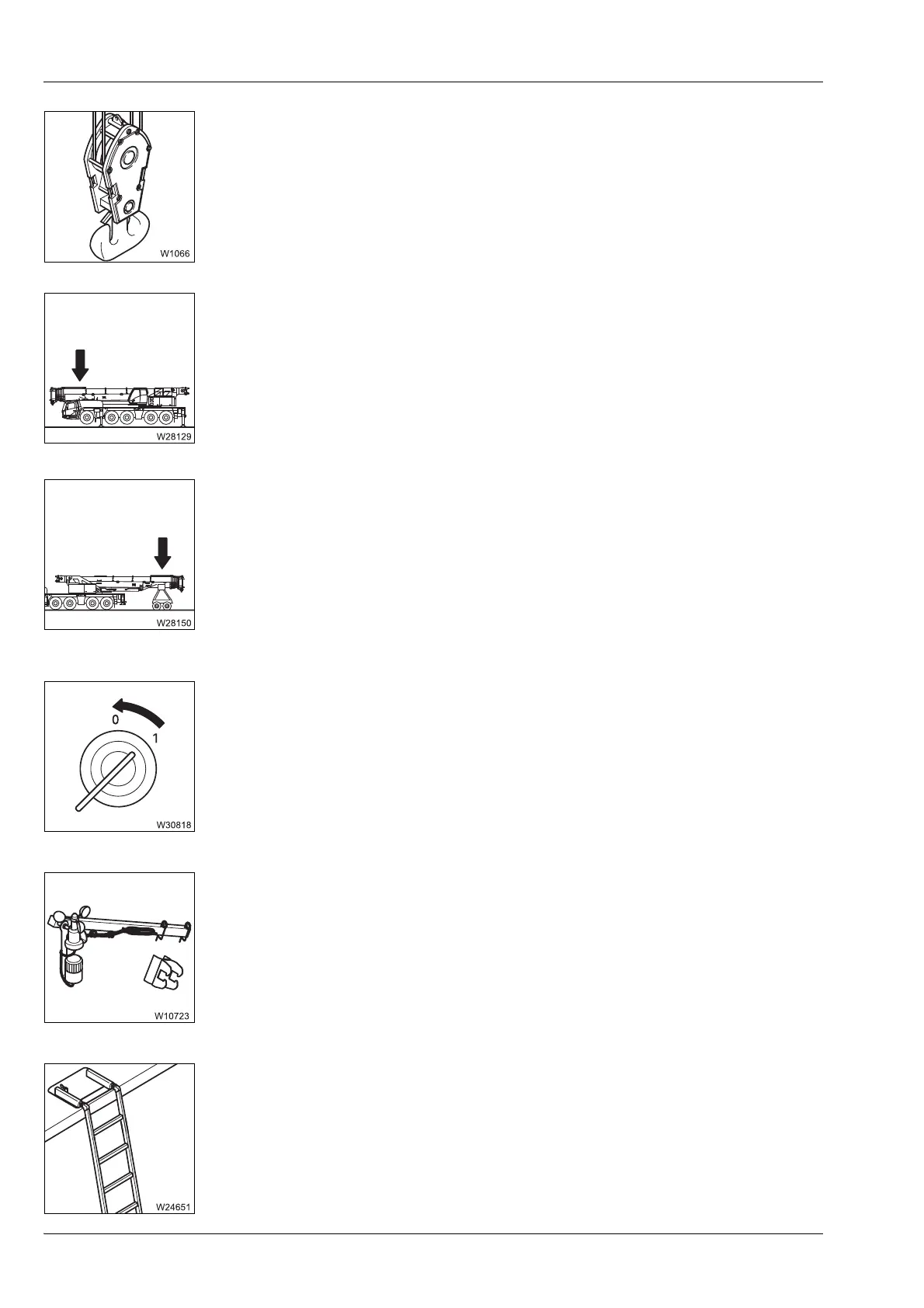

Rigging work
11.1 Rigging work checklists for crane operation with the main boom
11 - 6 3 302 633 en Operating Instructions GMK5250L
27.09.2017
5. Depending on transport:
– Attach the hook block to the bumper;
à p. 11 - 96 or
– Set down the hook block and unreeve the hoist rope;
à Setting down the hook block, p. 11 - 100,
à Unreeving hoist rope, p. 11 - 111.
6. For on-road driving without a dolly:
– Turn the superstructure to the 180° position to the front with the RCL
adjusted accordingly,
– Place the main boom on the boom rest.
7. For on-road driving with a dolly:
– Set down the superstructure on a dolly with the RCL adjusted accord-
ingly and switch on the boom floating position;
à p. 6 - 13,
– Switch on the slewing gear freewheel;
à p. 6 - 12,
– If necessary, switch on the boom pre-tensioning;
à p. 6 - 14,
– Switch off the houselock;
à p. 10 - 17.
8. Switch off the engine for crane operation;
à p. 9 - 9.
9. Remove the anemometer and the air traffic control light;
à p. 11 - 126.
10. Fold in all ladders and retract extend all stair treads;
à Ladders, p. 4 - 5,
à Step at the crane cab, p. 11 - 141.
