82
Chapter2 Muting
F3SG-SR
User’s Manual
System Operation and Functions
2-13-5. Dynamic Muting
The Dynamic Muting function can configure a new muting zone while the MUTING state is enabled,
based on a result measuring a workpiece height for a certain period of time.
This materializes the safer Muting function with a limited muting zone adjusted according to a
workpiece height.
Usage example
This function cannot be used for an application in which a workpiece height gets larger after measuring
the zone as shown below.
Zone measurement start condition
After the muting start condition is satisfied and the full detection zone is muted, blocking a part of the
F3SG-SR causes the Zone Measurement to start.
Zone measurement
The Zone Measurement monitors the highest and lowest parts of a passing workpiece during the
dynamic muting measurement time Tdyn (3 s: Can be changed). (Void spaces in workpiece(s) are
ignored.)
Zone determination
A zone enclosed by the highest and the lowest parts of the workpiece is set as a new muting zone.
Configuring a dynamic muting allowable beam allows the muting zone to be expanded by the number
of allowable beams. Configuring a dynamic muting allowable beam prevents unintended line stop due
to swing of a workpiece, etc. (The factory default setting of the dynamic muting allowable beam is 1.)

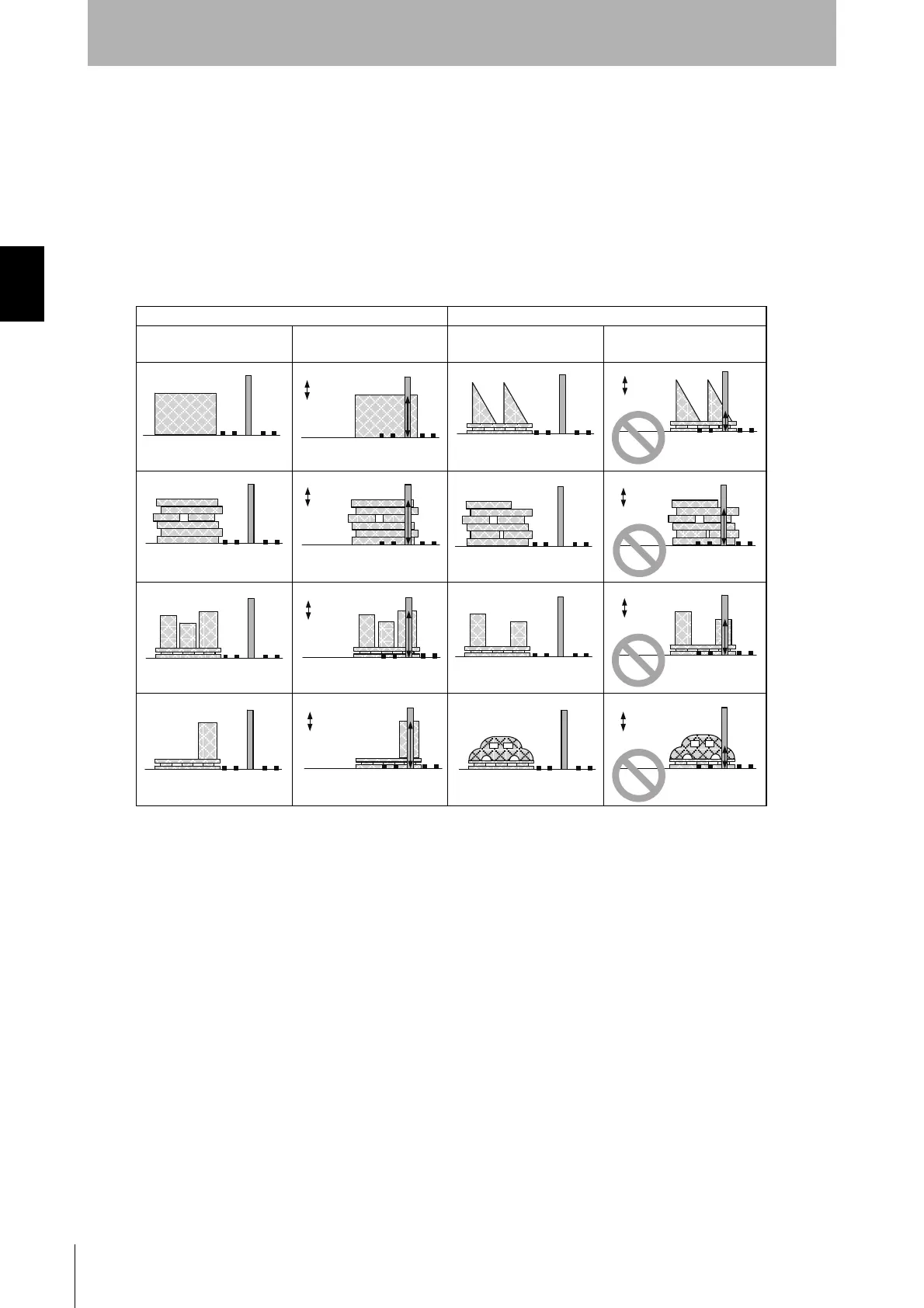

Applicable Example NOT Applicable Example
Application Examples Position after Zone
Measurement
Application Examples Position after Zone
Measurement
New zone
New zone
New zone
To Next Page
