F3SG-SR
User’s Manual
Chapter5 Dimensions
Wiring and Installation
E

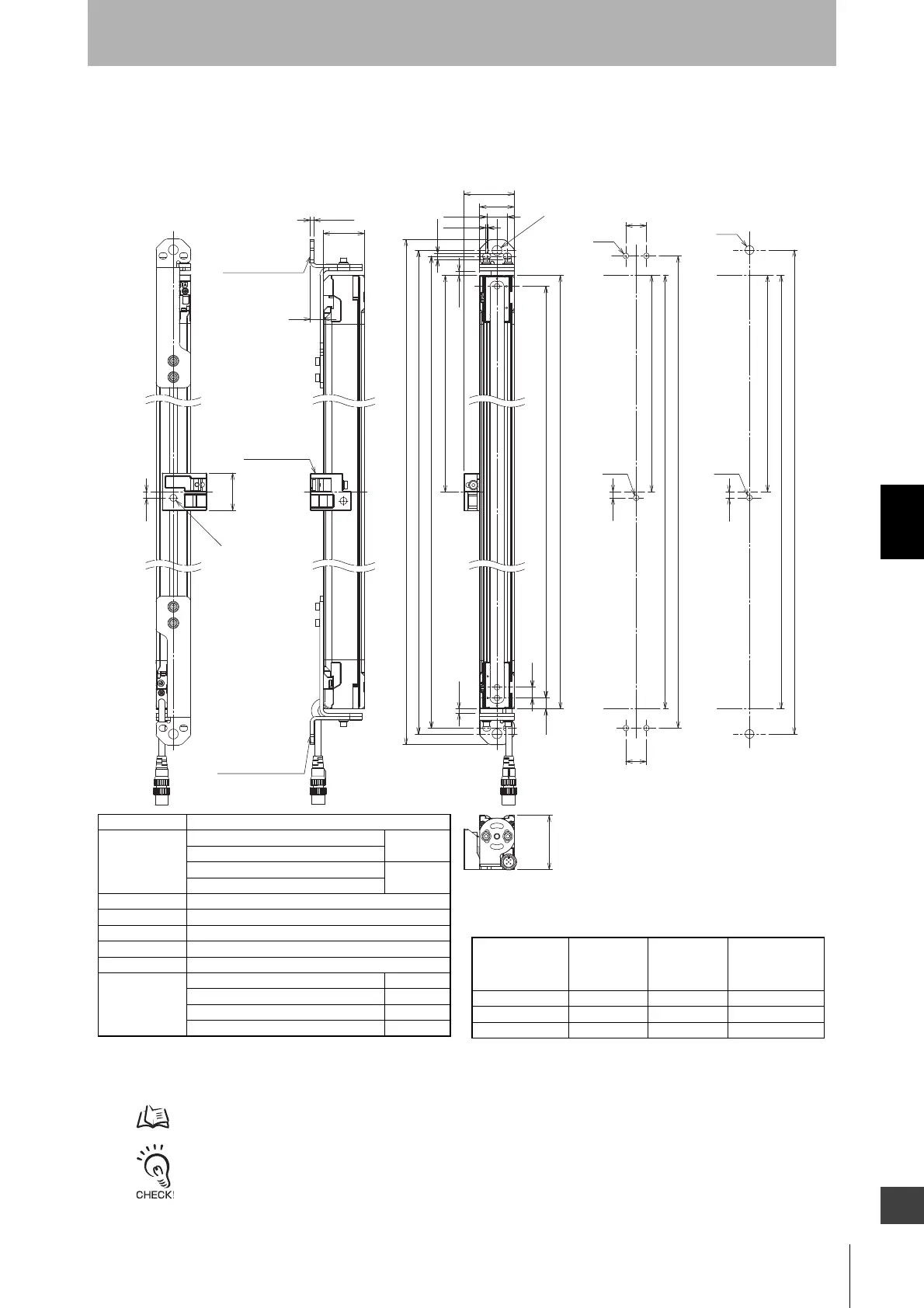

5-2-1-3. Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-
LSGTB-SJ) and Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)
 Backside Mounting
5-3-4-3. Mounting with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Side-Mount
Brackets (Intermediate Brackets) (F39-LSGF)
- Use the brackets of specified quantities and locations according to the dimensions. The other brackets than described
above may not meet the specified ratings and performance.
- When you use the sensor in a situation where the sensor is under a load, increase the number of the brackets used.
- Beam alignment cannot be performed in combination with Adjustable Top/Bottom Brackets and Side-Mount Brackets
with the Brackets fixed to the wall surface.
34.4
5.7
6.3 dia.
50
38
3.2
Adjustable
Top/Bottom
Bracket
(F39-LSGTB-SJ)
12
Side-Mont
Bracket
(F39-LSGF)
Adjustable
Top/Bottom
Bracket
(F39-LSGTB-SJ)
P
10
N2
D
C(Protective height)
G
H
I
F
9 dia.
19
32
46.7
5.8
1.7
N1
19
4-M5
C
F
G
5.7
2-M5
or M6
19
<Screw for Adjustable
Top/Bottom Bracket: M5 *1>
C
F
H
5.7
2-M8
2-M5
or M6
<Screw for Adjustable
Top/Bottom Bracket: M8 *1>
[ Unit : mm ]
*1. Side-Mount Bracket: M5 or M6
*2. For the model of protective height of 0160, the numbers corresponding to dimensions N1 and N2 are 20 to 30.
*3. The number of brackets required to mount either one of emitter and receiver.
*4. The side-mount brackets (intermediate brackets) are included with the light curtain.
Dimension C 4-digit number of the type name (Protective height:  )
Dimension D
F3SG-SR-14
C-20
F3SG-SR25
F3SG-SR-45
C-40
F3SG-SR-85
Dimension G C+27.2+N1+N2
Dimension H C+38+N1+N2
Dimension I C+58+N1+N2
Dimension N1 0 to 30 *2
Dimension N2 0 to 30 *2
Dimension P
F3SG-SR-14 10
F3SG-SR-25 20
F3SG-SR-45 40
F3SG-SR-85 80
Protective height
(Dimension C)
Number of
Adjustable
Top/Bottom
Bracket *3
Number of
Intermediate
Bracket *4
Dimension F
0160 to 0840 2 0 -
0880 to1680 2 1 1000 mm max.
1760 to 2480 2 2 1000 mm max.
