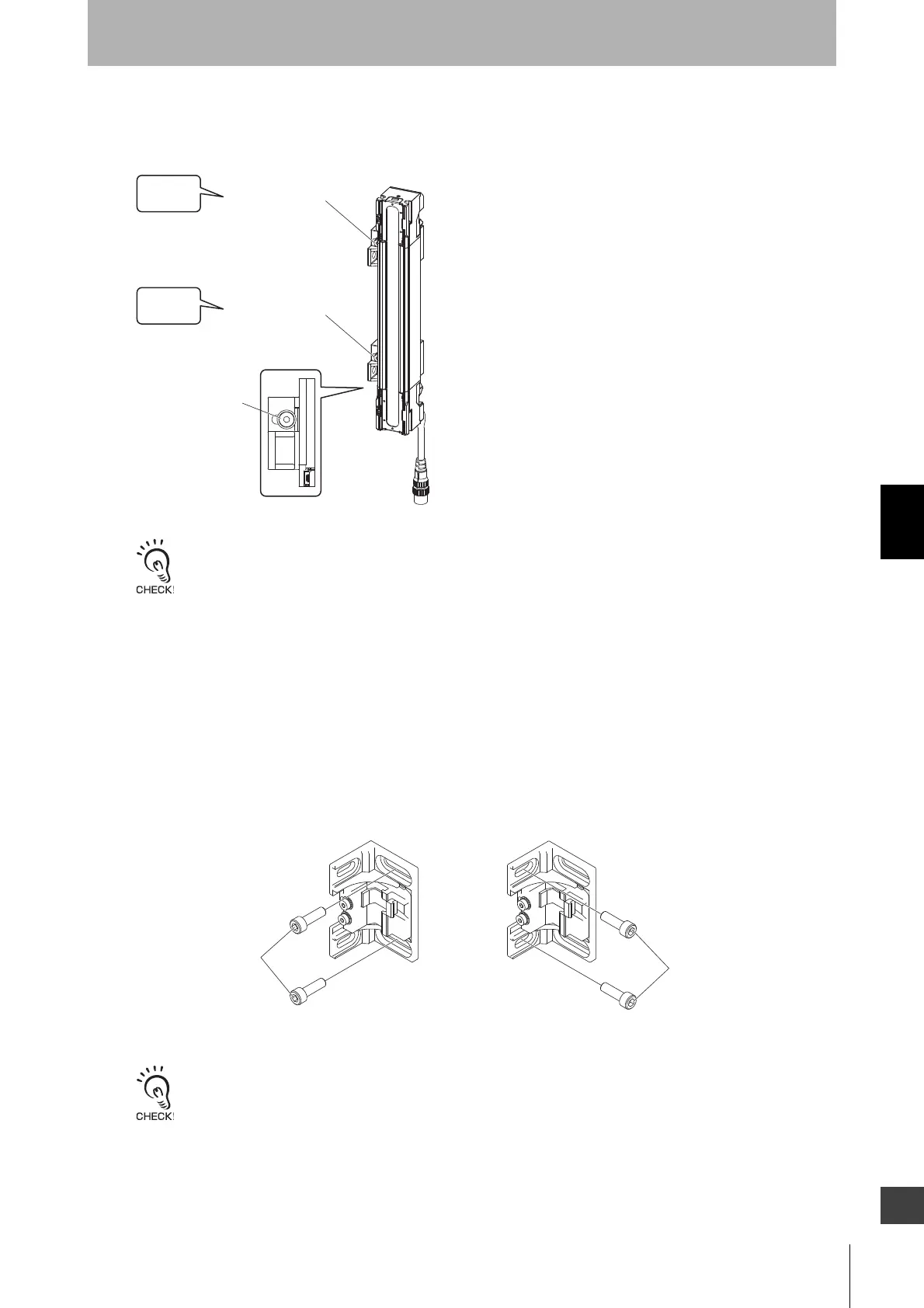

3. Securely tighten the Mounting Screws to fix the Side-Mount Bracket to the sensor housing. The
recommended torque to tighten the Mounting Screws is 3.0 N•m. Then loosen the Alignment Screws
(hexagon socket head cap screws (M4×22)). (Fig. 3)
Tightening screws with a torque that considerably exceeds the recommended torque may cause failure.
5-3-4-2. Mounting with Adjustable Side-Mount Brackets (Intermediate
Brackets) (F39-LSGA)
1. Securely tighten the screws to fix the Adjustable Side-Mount Bracket to the mounting position of the
wall surface. When using more than one Adjustable Side-Mount Brackets, align them in the same line
using the sides of the brackets that do not face the wall, before attaching the bracket to the sensor.
(Fig. 1)
Screws to mount the brackets to the wall are not included.
Mounting Screw
Mounting Screw
Mounting Screw
Securely
tighten
Securely
tighten
Fig. 3
<Backside mounting>
<Side mounting>
Fig. 1
M5/M6
M5/M6
