Omron F3SG-SRB Series - F3 SJ-B;A Conversion Cable

299
F3SG-SR
User’s Manual
Chapter5 Wiring
Wiring and Installation
E
5-4-3-7. F3SJ-B/A Conversion Cable
Used to convert the wiring for F3SJ-B/-A, F3SR-B or F3SN Safety Light Curtain to that for the F3SG-SR.
Do not connect the Conversion Cable for the following purposes. Failure to do so may result in failure.
1. Connecting with the F39-SGIT-IL3, F39-GCNY2 or F39-GCNY3
2. Connecting between the F3SG-SR's
Conversion Cables are only for PNP connection. To use for NPN, connect the 24 VDC line and the 0 VDC line in reverse.
There are the restrictions on the functions related to wiring when using Conversion Cables.

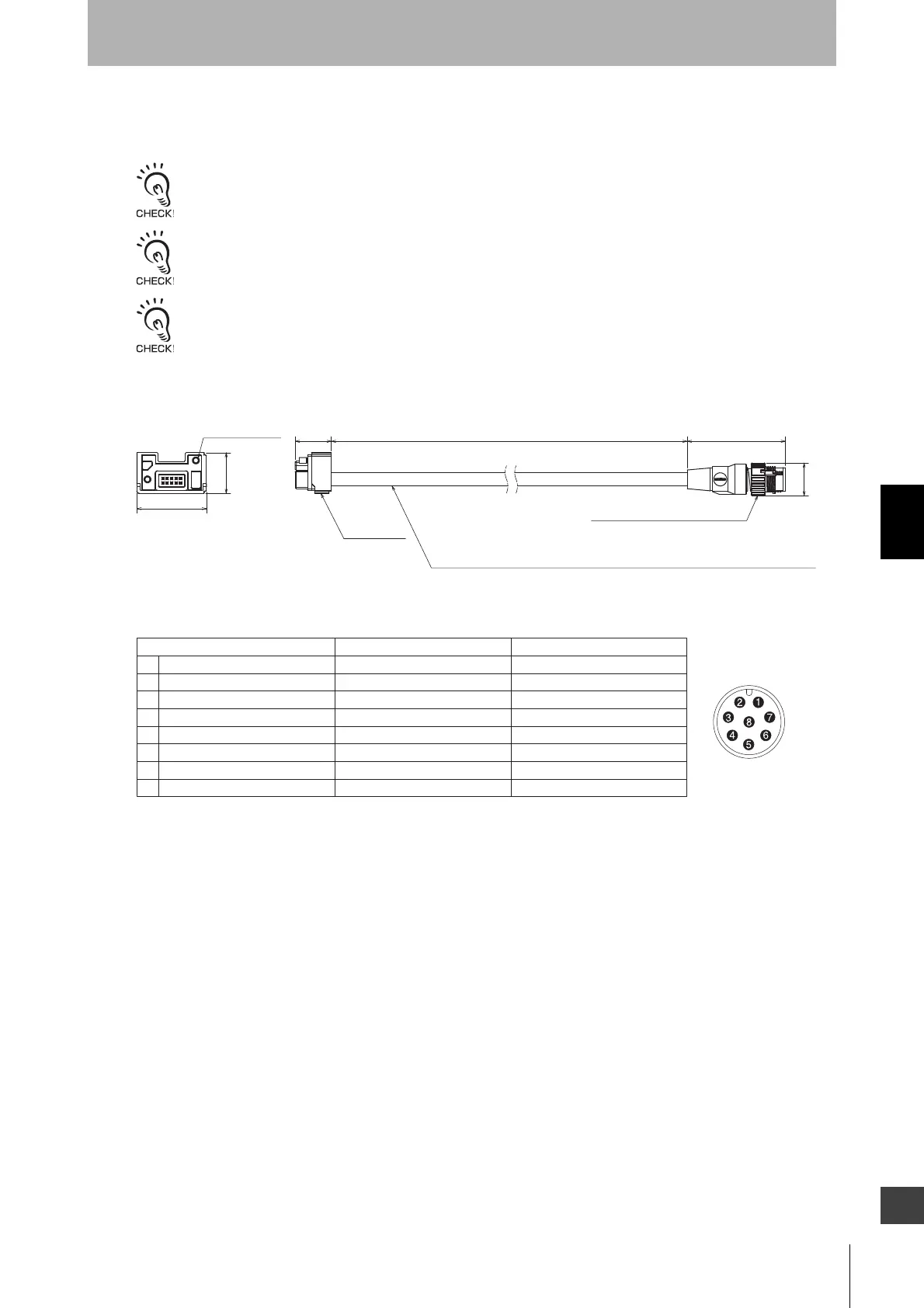

 F3SJ-B/A Conversion Cable for Emitter (F39-JGR3K-SJ-L, sold separately)
<Internal wiring diagram>
(Unit: mm)
Connector
M12 IP67 connector, 8-wire
14.9 dia.
2-M2.5 screw
31.6
18.5
44.7
300
16.4
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5
(Cross section of conductor: 0.2 mm
2
/insulator diameter: dia. 1.1 mm)
Connected to connector of F3SJ-A/-B, F3SR-B or F3SN emitter cable
F3SJ-A/-B
F3SR F3SN
1
2
3
4
5
6
7
8
Not used
+24 VDC
Test input
Not used
Communication line (+)
Communication line (-)
0 VDC
Not used
Not used
+24 VDC
Test input
Not used
Communication line (+)
Communication line (-)
0 VDC
Not used
Not used
+24 VDC
Test input
Not used
RS-485(A)
RS-485(B)
0 VDC
Not used
Male
