213
F3SG-SR
User’s Manual
Chapter4 Changing Settings with SD Manager 3
Setting with SD Manager 3
E
4-3-4-5. Reduced Resolution
First, carry out 4-3-1. Preparing to Change Settings.
Next, click the icon below on the Top page.

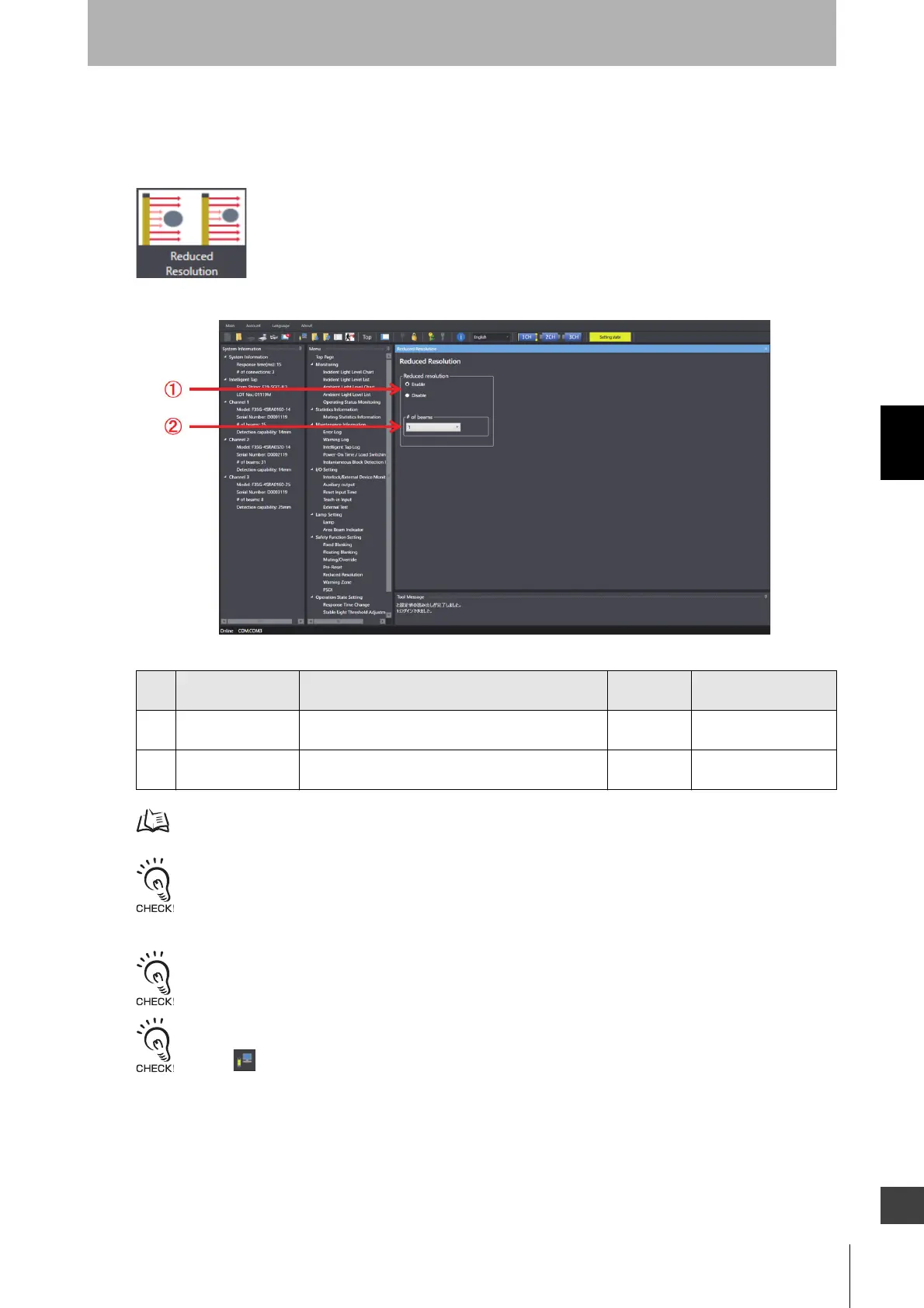

The setting screen below is displayed.
For more information on reduced resolution, refer to 2-17. Reduced Resolution.
For more information on reduced resolution, refer to  Detection capability on 2-17. Reduced Resolution
It is not possible to configure the Reduced Resolution function together with the Muting function. To enable settings of
the Reduced Resolution function, disable the Muting function.
After changing the Muting function from Enable to Disable or from Disable to Enable, check the settings of these
functions again.
Affected functions: External Device Monitoring (EDM), Start Interlock, Restart Interlock, Auxiliary Output
When changing the settings is complete, confirm the settings and write the configuration to the F3SG-SR.
To enable the written configuration, refer to 4-2-7-3. Writing Configuration into Intelligent Tap.
When connecting the Intelligent Tap to a F3SG-SR and trying to return the F3SG-SR to [Detecting], follow step 4 of
4-1-3-2. Connection Procedure When Using USB Connector to restart the F3SG-SR and Intelligent Tap, or click the
[Monitor] button.
No. Function name Description Initial value
Configurable value or
numerical range
1 Reduced resolution Select Enable or Disable for the Reduced Resolution
function.
Disable Enable/Disable
2 No. of beams Select desired number of beams to be ignored. Up to
three beams can be configured.
1 1 to 3 beams
(in 1-beam increments)
