191
F3SG-SR
User’s Manual
Chapter4 Changing Settings with SD Manager 3
Setting with SD Manager 3
E

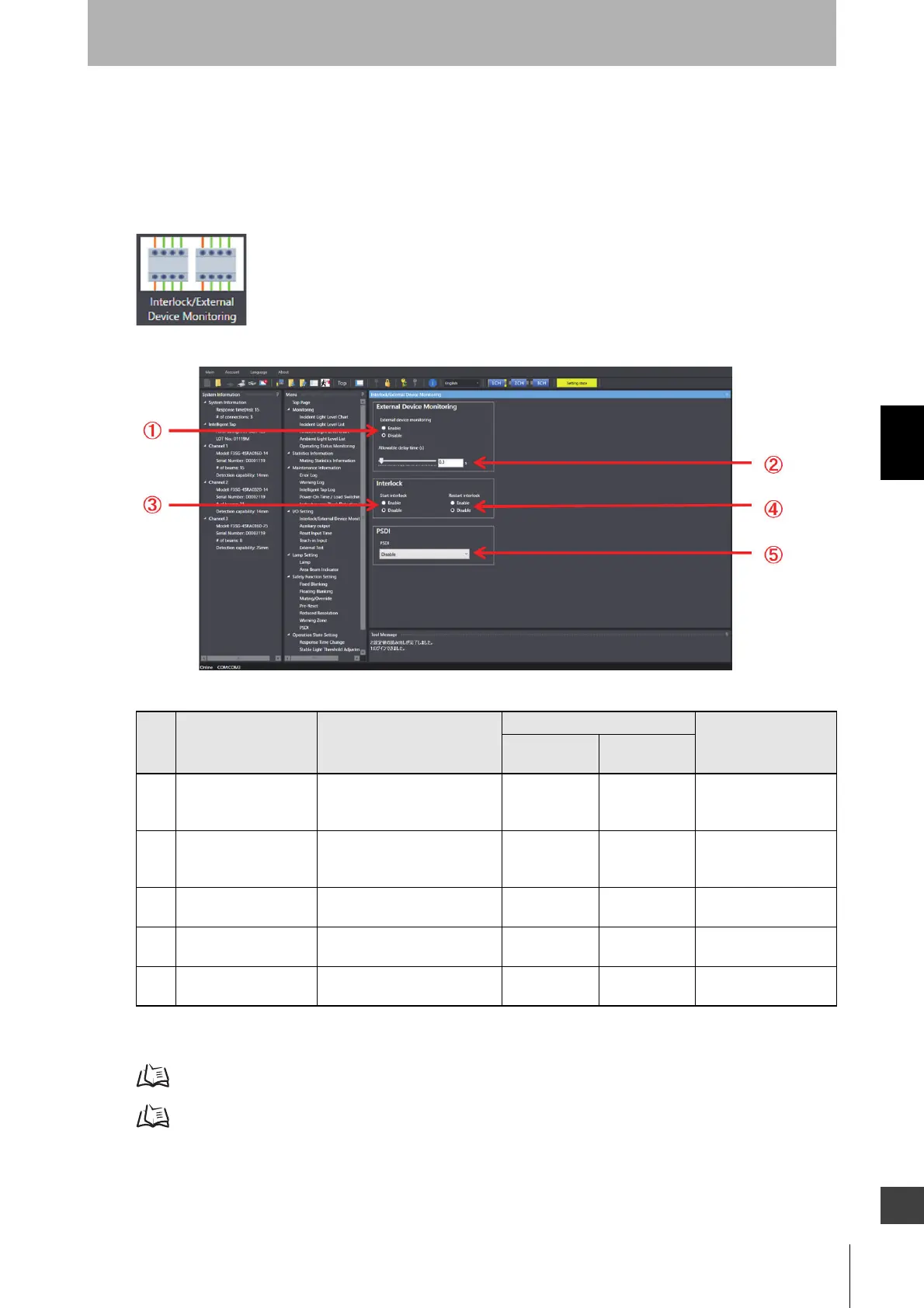

4-3-2. I/O Settings
4-3-2-1. Interlock/External Device Monitoring (EDM)/PSDI
First, carry out 4-3-1. Preparing to Change Settings.
Next, click the icon below on the Top page.
The setting screen below is displayed.
* For this function, setting parameters are kept individually in each case that the muting function is set enabled or disabled. When
changing of the muting state from enabled to disabled or vice versa, confirm the setting of this function again.
For more information on function combinations, refer to Considerations for enabling and disabling Muting function with SD
Manager 3 on 2-1. Combination of Functions.
• For more information on external relay monitoring, refer to 2-11. External Device Monitoring (EDM).
• For more information on start interlock and restart interlock, refer to to 2-8. Interlock.
No. Function name Description
Initial value
Configurable value or
numerical range
Muting enabled
*
Muting disabled
*
1 External device
monitoring
Select Enable or Disable for the
External Device Monitoring
function.
Disable Disable Enable/Disable
2 Allowable delay time Select desired delay time for the
External Device Monitoring
function.
0.3 s 0.3 s 0.1 to 4 s
(in 0.1 s increments)
3 Start interlock Select Enable or Disable for the
Start Interlock function.
Disable Disable Enable/Disable
4 Restart interlock Select Enable or Disable for the
Restart Interlock function.
Disable Disable Enable/Disable
5 PSDI Select Enable or Disable for
PSDI function.
Disable Disable Disable/Single break
/Double break
To Next Page
