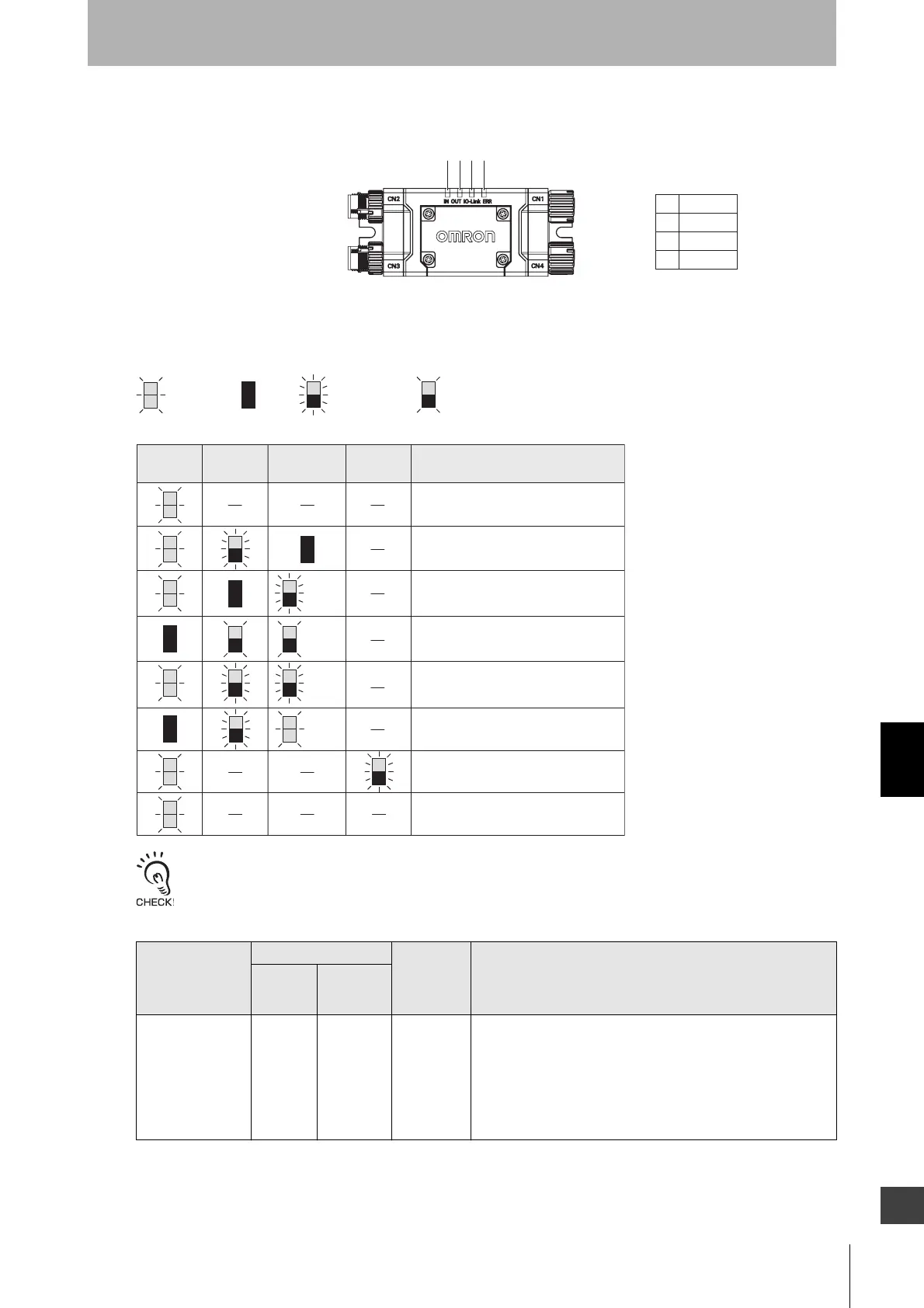

8-1-4. Troubleshooting for Intelligent Tap
If the Intelligent Tap detects any failure, it transitions to the LOCKOUT state. Under the LOCKOUT
state, the ERR indicator is turned ON. Identify an error according to the combination of the indicators
when the error occurs. See the following troubleshooting tables to take measures.
• The signals output to IO-Link or IN and OUT indicators show the statuses of the F3SG-SR/PG or Intelligent Tap except
their LOCKOUT state.
• The muting inputs A and B are kept in the OFF state when the LOCKOUT state occurs due to the power supply voltage
error.
Description
Checking by
Error code
(HEX)*
Cause and measures
Indicator
SD Manager 3/
SD Manager 3
Mobile APP
Communication
error
X X 1D The communication lines or other lines may be short-circuited or
broken.
Check the cables for cascading or extension cables.
If the wiring is extended with cables other than specified, the
cables used for extension may not have performance equivalent
or greater than the specified cables. Use cables with the same
performance or more than the specified cables.
