Omron F3SG-SRB Series User Manual

83
F3SG-SR
User’s Manual
Chapter2 Muting
System Operation and Functions
E
 Dynamic muting allowable beam
The dynamic muting allowable beam allows the muting zone measured by the Zone Measurement to
be expanded by the number of additional beam(s) specified as allowable beam.

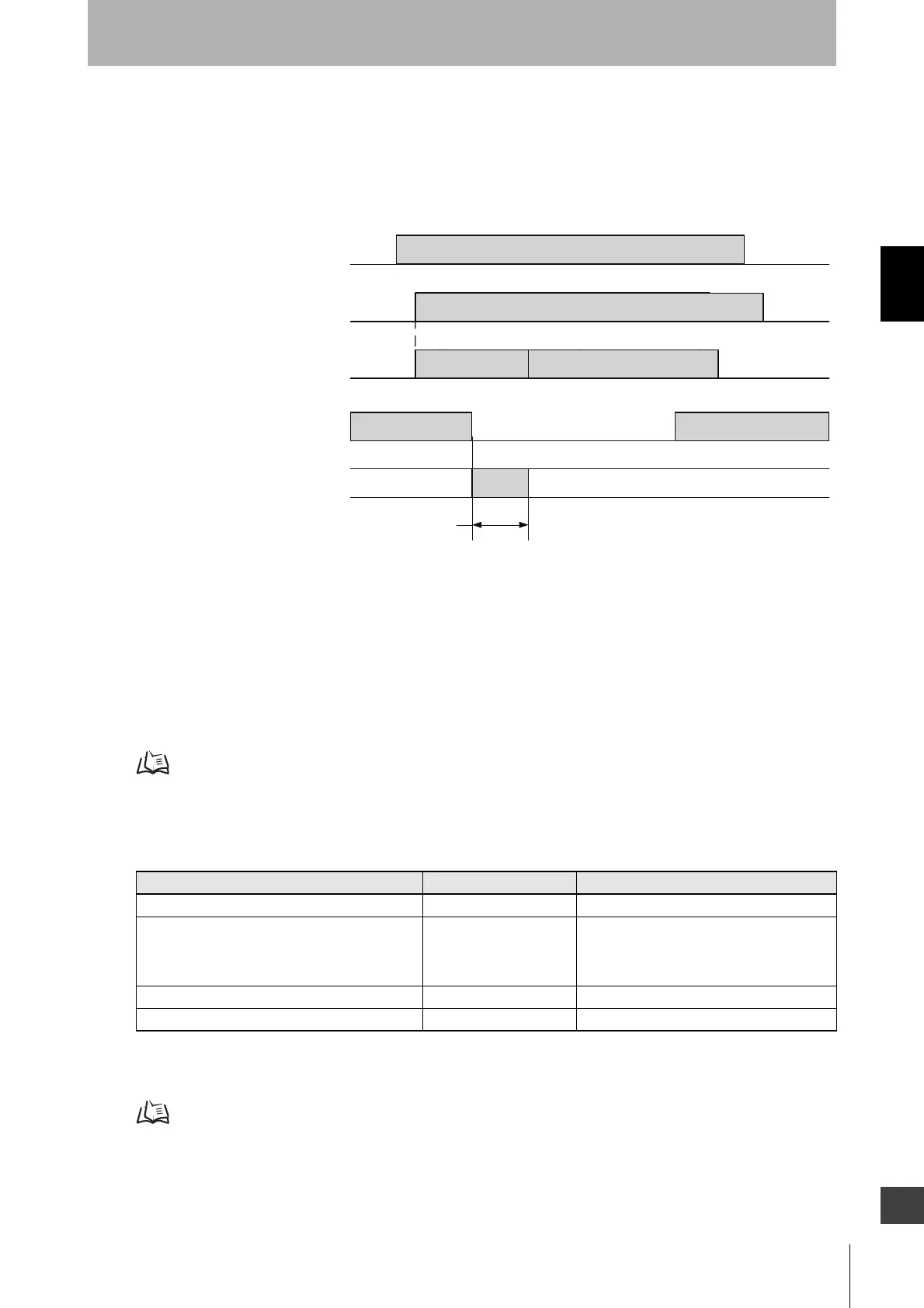

 Timing chart
2-13-6. Factory Default Setting
The muting mode is set to Standard Muting Mode and the Dynamic Muting to Disable.
2-13-7. Setting with Intelligent Tap
If the Pre-Reset function is enabled by the DIP Switch, the Muting function is disabled.
Otherwise the Muting function is always being enabled.
Refer to Chapter 3 Setting with Intelligent Tap for more information on setting this function by the Intelligent Tap.
2-13-8. Setting with SD Manager 3
The user can make changes to the settings of this function by the SD Manager 3.
*Setting parameters of the following functions is saved according to the states where the Muting function is enabled and disabled
with the SD Manager 3, respectively. After changing the Muting function from Enable to Disable or from Disable to Enable, also
check the settings of these functions again.
Affected functions: External Device Monitoring (EDM), Start Interlock, Restart Interlock, Auxiliary Output
Refer to 2-26-6. Muting Statistics Information for more information.
Function Initial value Configurable value or numerical range
Muting function * Enable Enable/Disable
Muting mode Standard muting mode Standard Muting (Installation Example1) /
Standard Muting (Installation Example2) Exit-
only muting mode/Position detection muting
mode
Setting by Manual Manual/Teach-in
Statistics data recording Enable Enable/Disable
ON
OFF
Tdyn: Measurement time
Muting Input A
MUTING state
ON
OFF
ON
OFF
Enabled
Disabled
Zone Measurement
Beam state
Unblocked
Blocked
Partial Zone
Tdyn (3 s)
All Zone
Muting Input B
