207
F3SG-SR
User’s Manual
Chapter4 Changing Settings with SD Manager 3
Setting with SD Manager 3
E

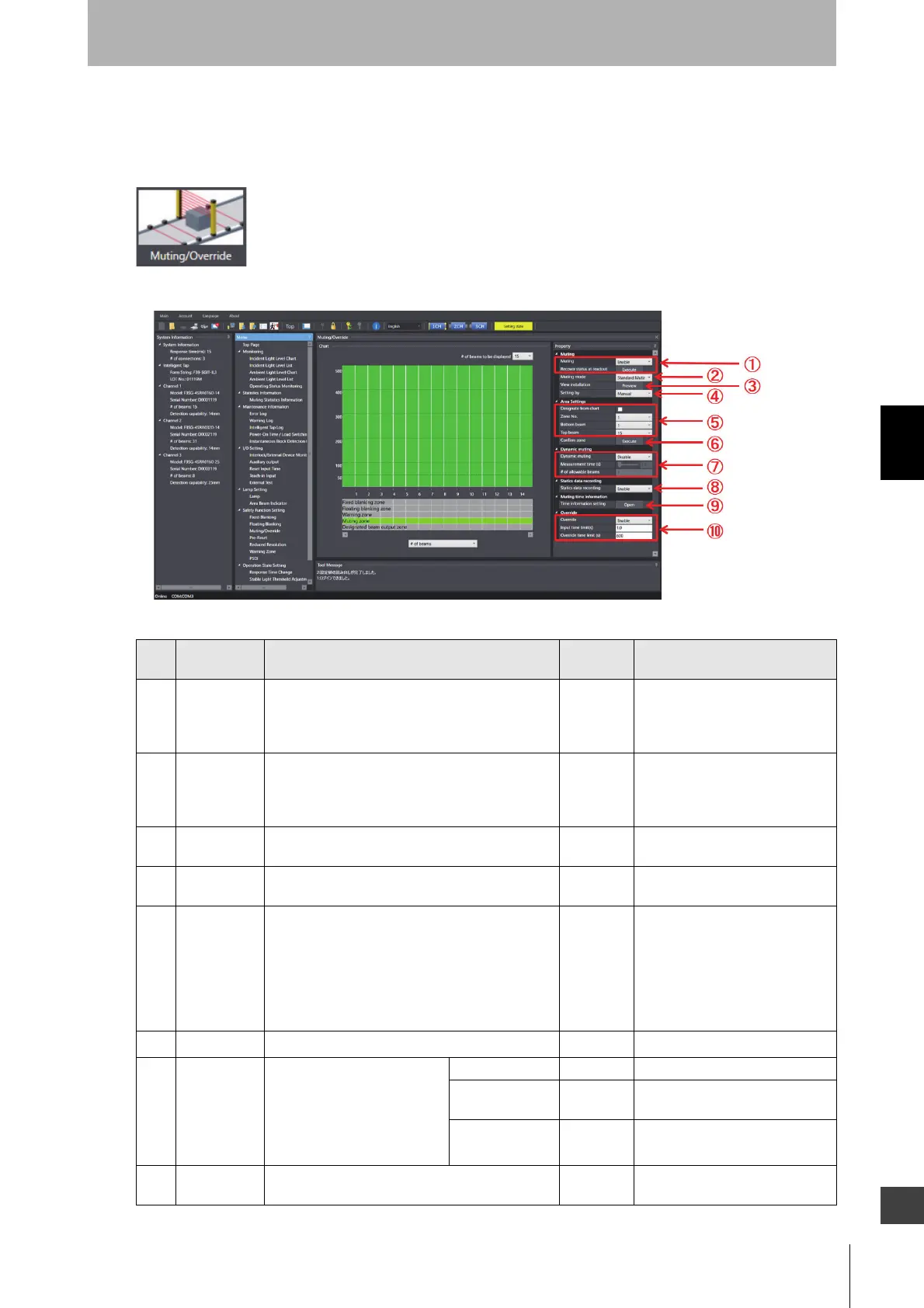

4-3-4-3. Muting/Override
First, carry out 4-3-1. Preparing to Change Settings.
Next, click the icon below on the Top page.
The setting screen below is displayed.
No.
Function
name
Description Initial value
Configurable value or numerical
range
1 Muting Select Enable or Disable for the Muting function.
When you want to restore the readout settings
received from the F3SG-SR, execute [Recover
status at readout].
Enable Disable/Enable
2 Muting mode Select a desired muting mode. Standard
Muting
Standard muting (Installation
example 1)/Standard muting
(Installation example 2)/Exit-only
muting/Position detection muting
3 View
installation
Shows installation conditions. - -
4 Setting by Select manual setting using SD Manger 3 or setting
by teach-in.
Manual Manual/Teach-in
5 Zone setting Select a desired zone number. To configure zone
settings, specify desired bottom and top beam
numbers from the drop-down list, or directly on the
chart. When you check the [Designate from chart]
box, you can specify a zone range by dragging red
lines shown on the chart. In both cases above,
execute [Confirm zone] to confirm the settings.
Bottom/Top
beam:
All beams
Desired beam
(in 1-beam increments)
6 Confirm zone Confirm the settings of the zone. - -
7 Dynamic
muting
Select Enable or Disable,
measurement time and the
number of allowable beams for
the Dynamic Muting function.
Set the measurement time by
moving the pointer of the bar.
Dynamic muting Disable Disable/Enable
Measurement
time
3 s 1 to 25 s (in 0.1 s increments)
Number of
allowable beams
1 0 to 5 beams
(in 1-beam increments)
8 Statistics data
recording
Select Enable or Disable for recording of muting
statistic data.
Enable Disable/Enable
To Next Page
