Reduced resolution zone is displayed in the Information assigned section only when the reduced resolution is enabled.
4-4-1-2. Operating Status Monitoring
This function can be used only when the F3SG-SR is connected to the Intelligent Tap and a PC.
On the Top page, click the icon below.
The F3SG-SR enters detecting state, and the safety outputs are turned ON/OFF according to the beam state and
settings.

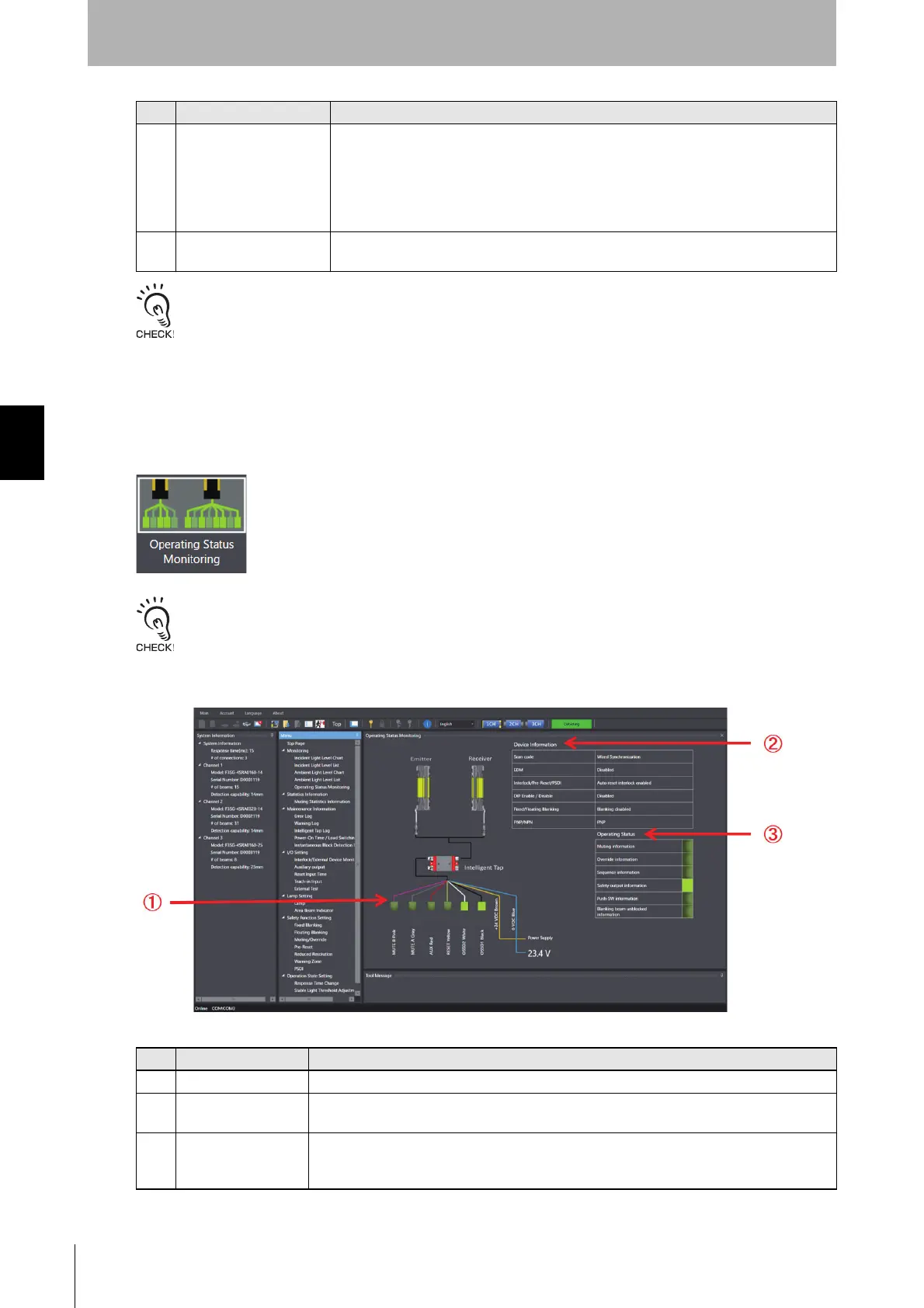

The screen below is displayed.
6 Information assigned Shows a function assigned to the beams. The following five functions can be assigned.
-Fixed blanking zone
-Floating blanking zone or Reduced resolution zone
-Warning zone
-Muting zone
Designated beam output zone
7 Select unit of horizontal
axis
Switch the unit of the horizontal axis on the chart between the number of beams and
sensor length.
No. Function Description
1 External wiring status Shows ON or OFF state of signal lines.
2 Sensor Information When DIP Switch Enabled is selected, it shows a state of DIP Switch settings. When
Configuration Tool Enabled is selected, it shows setting parameters saved in the F3SG-SR.
3 Operating Status
Monitoring
Shows the ON/OFF state of inputs and outputs of the F3SG-SR.
Shows Muting information, Override information, Sequence information, Safety output
information, Push-SW, and Blanking beam unblocked information.
