Omron F3SG-SRB Series User Manual

357
F3SG-SR
User’s Manual
Chapter8 Optional Accessories (Sold Separately)
Appendix
E

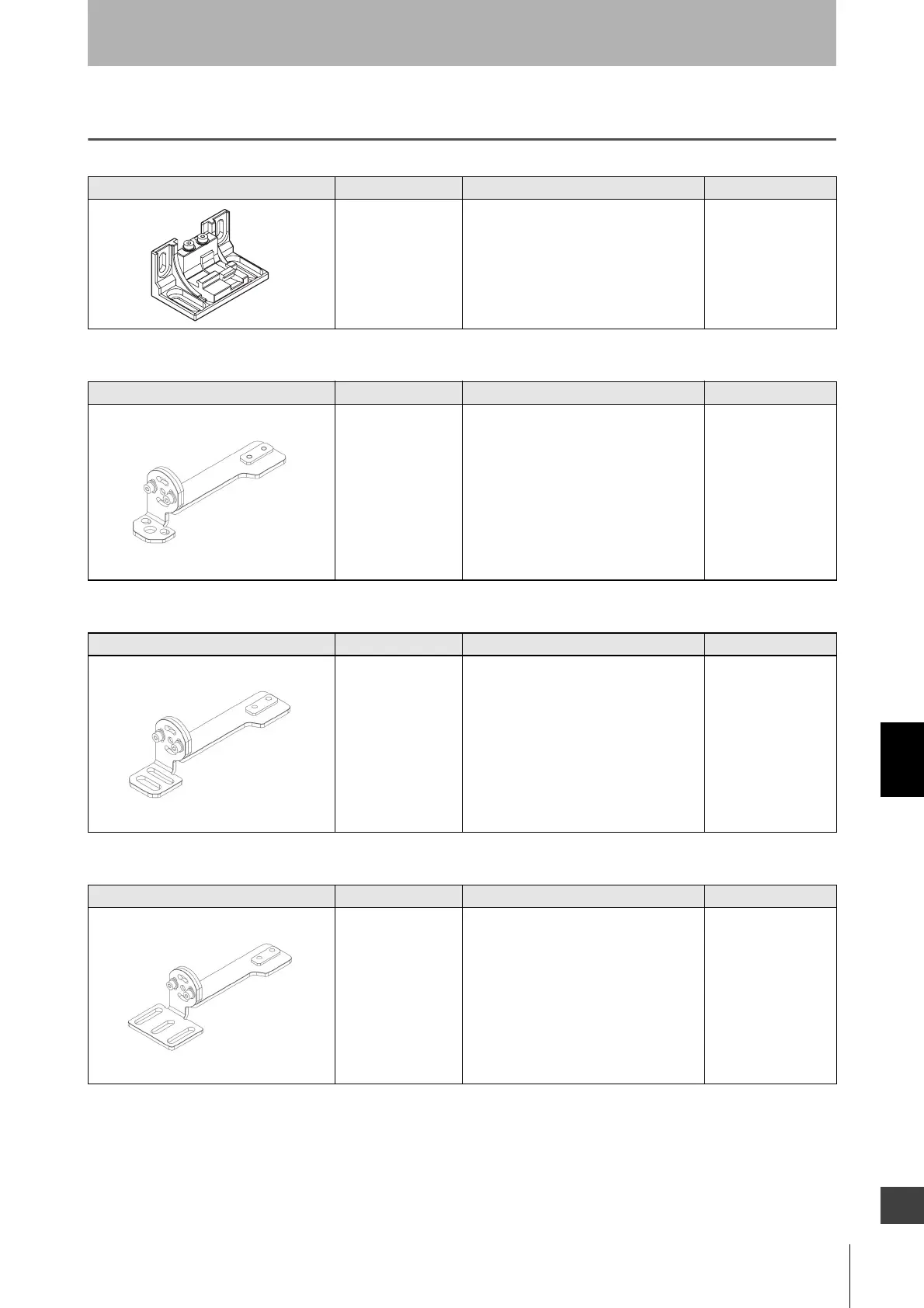

8-2. Optional Accessories (Sold Separately)
Adjustable Side-Mount Bracket (Intermediate Bracket)
Adjustable Top/Bottom Bracket (F3SJ, F3SN Adapter)
Adjustable Top/Bottom Bracket (F3SG-RA/RE Adapter)
Adjustable Top/Bottom Bracket (MS4800, F3SR Adapter)
Appearance Model Application Remarks
F39-LSGA Bracket to mount the F3SG-SR. Beam
alignment after mounting possible.
The angle adjustment range is ±15°.
Side mounting and backside mounting
possible.
A set of 2 brackets.
Appearance Model Application Remarks
F39-LSGTB-SJ Bracket to mount the F3SG-SR. Use this
bracket at the top and bottom positions of
the F3SG-SR. Beam alignment after
mounting possible.
The angle adjustment range is ±22.5°.
Side mounting and backside mounting
possible.
Use this bracket when replacing an
existing F3SJ or F3SN Safety Light
Curtain with F3SG-SR.
A set of 2 brackets.
Appearance Model Application Remarks
F39-LSGTB-RE Bracket to mount the F3SG-SR. Use this
bracket at the top and bottom positions of
the F3SG-SR. Beam alignment after
mounting possible.
The angle adjustment range is ±22.5°.
Side mounting and backside mounting
possible.
Use this bracket when replacing an
existing F3SG-RA/RE Safety Light Curtain
with F3SG-SR.
A set of 2 brackets.
Appearance Model Application Remarks
F39-LSGTB-MS Bracket to mount the F3SG-SR. Use this
bracket at the top and bottom positions of
the F3SG-SR. Beam alignment after
mounting possible.
The angle adjustment range is ±22.5°.
Side mounting and backside mounting
possible.
Use this bracket when replacing an
existing MS4800 or F3SR Safety Light
Curtain with F3SG-SR.
A set of 2 brackets.
