Chapter2 Auxiliary Output
F3SG-SR
User’s Manual
System Operation and Functions
2-12-2. Factory Default Setting
It is configured to the inverted signal of the safety outputs.
2-12-3. Setting with Intelligent Tap
The user cannot make any changes to the settings of this function by the DIP Switch on the Intelligent
Tap.
When the Pre-Reset is enabled by the Dip Switch on the Intelligent Tap, the factory default setting is
inverted signal of the safety outputs.

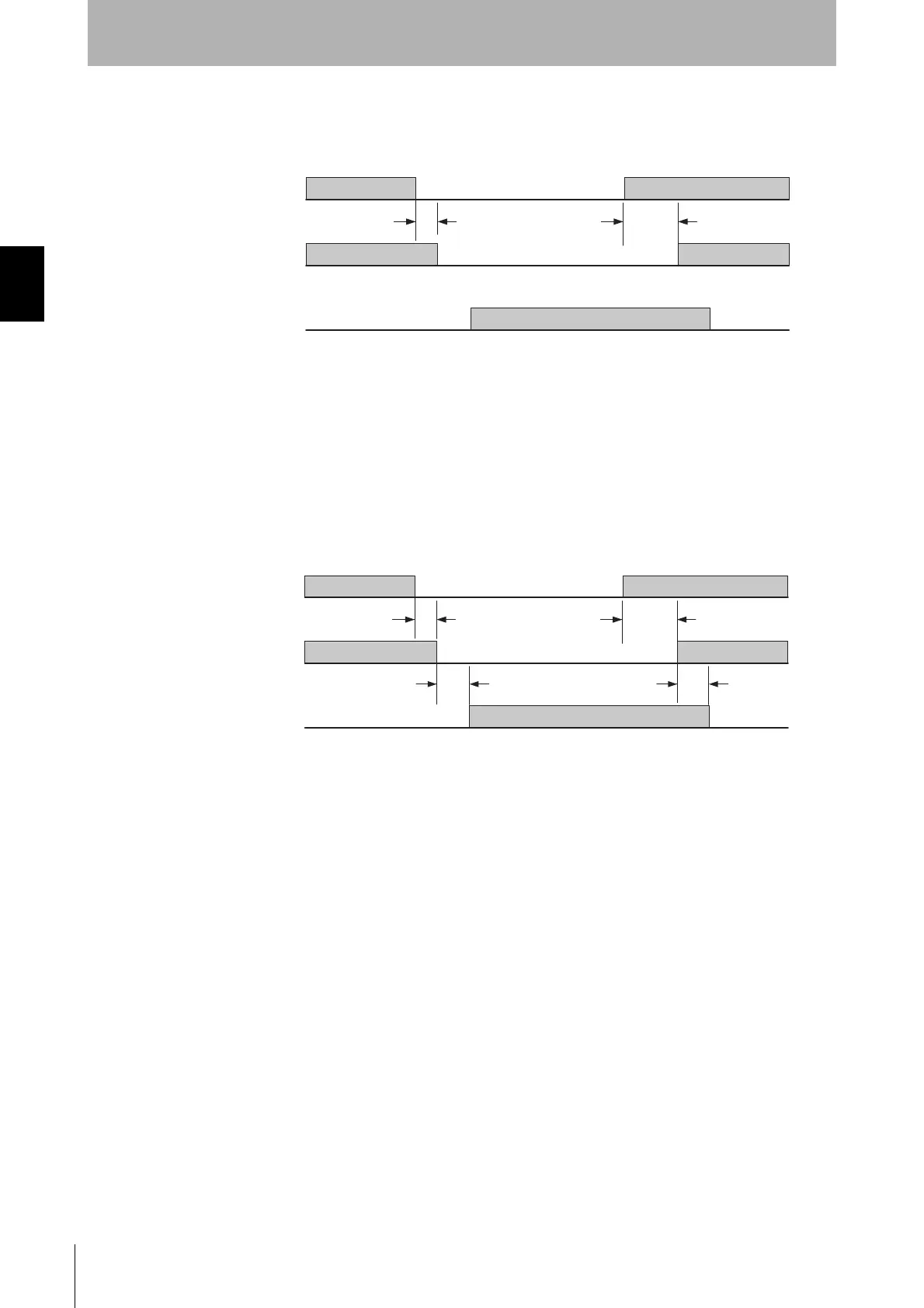

Toff Ton
Beam state
Unblocked
Blocked
OSSD
ON
OFF
AUX
Ton: OFF to ON response time
Toff: ON to OFF response time
ON
OFF
Toff Ton
Beam state
Unblocked
Blocked
OSSD
ON
OFF
AUX
Ton: OFF to ON response time
Toff: ON to OFF response time
ON
OFF
100msmax. 100msmax.
