Chapter5 Dimensions
F3SG-SR
User’s Manual
Wiring and Installation
5-2-6. Spatter Protection Cover
 Spatter Protection Cover (F39-HSG, sold separately)

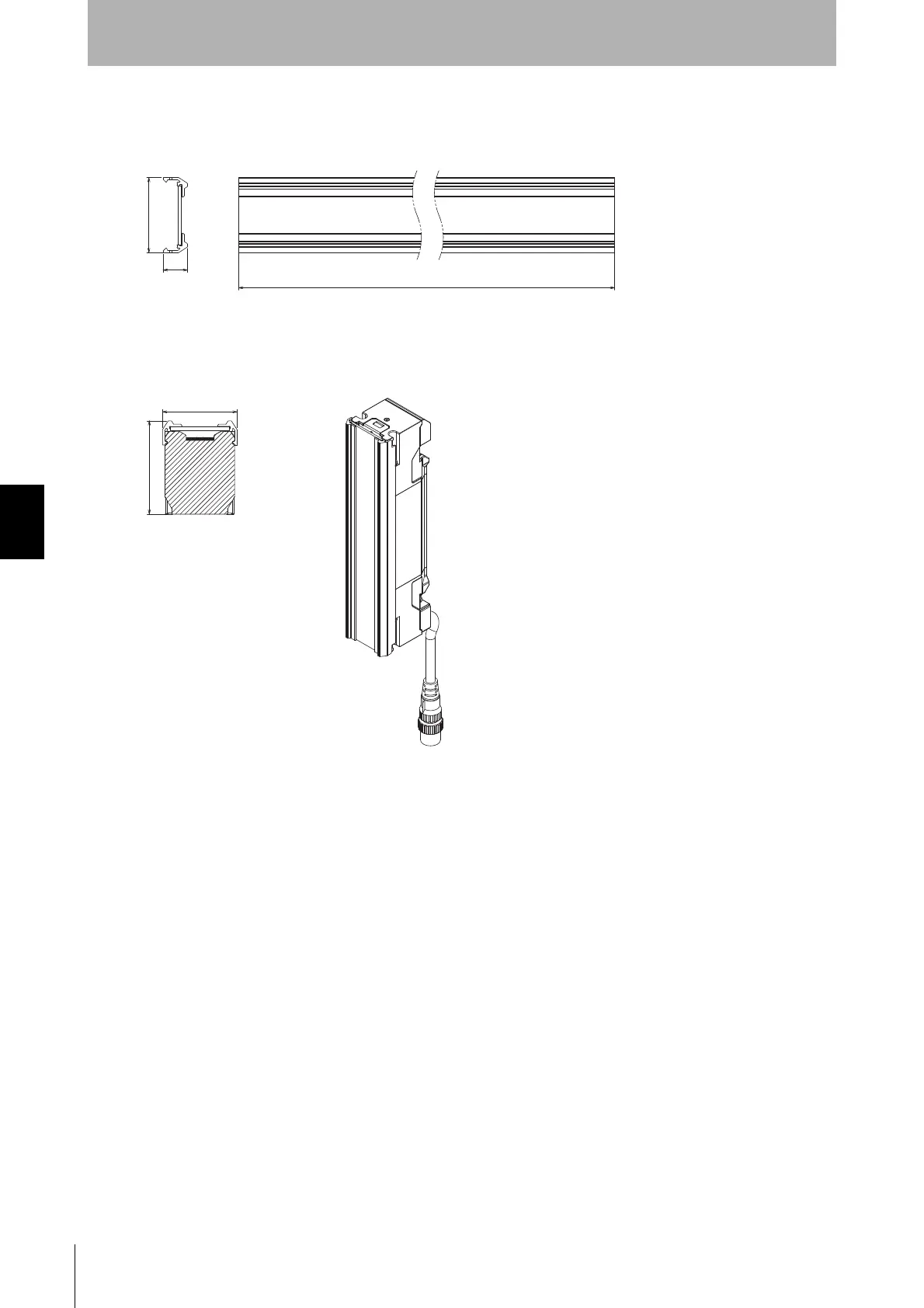

 Assembly Dimensions
Material: PC resin (Transparent cover)
ABS resin (Side wall)
[Unit: mm]
L=
L
34.2
11.1
[Unit: mm]
34.2
42.8
