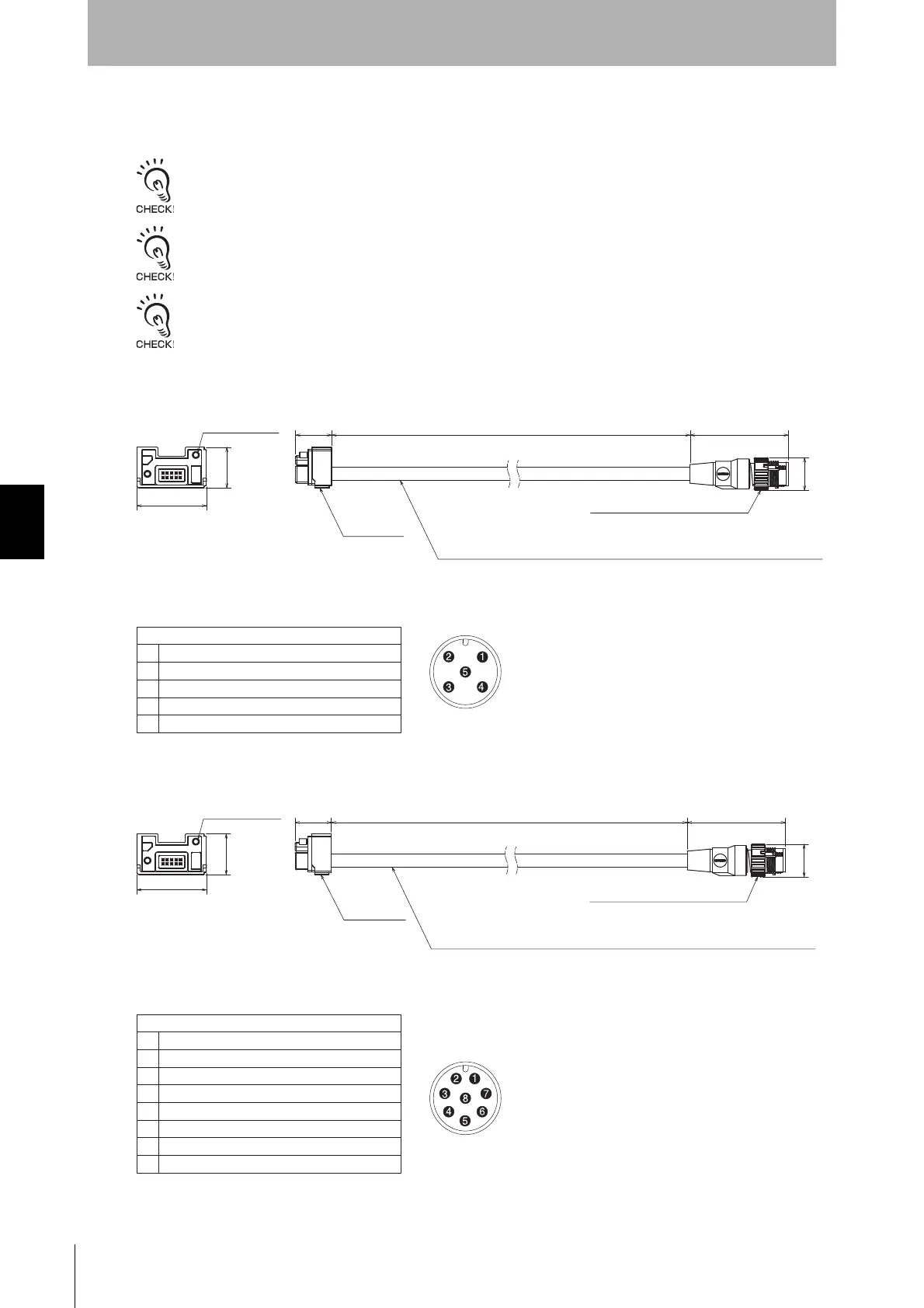

5-4-3-9. MS48 Conversion Cable
Used to convert the wiring for MS4800 Safety Light Curtain to that for the F3SG-SR.
Do not connect the Conversion Cable for the following purposes. Failure to do so may result in failure.
1. Connecting with the F39-SGIT-IL3, F39-GCNY2 or F39-GCNY3
2. Connecting between the F3SG-SR's
Conversion Cables are only for PNP connection. To use for NPN, connect the 24 VDC line and the 0 VDC line in reverse.
There are the restrictions on the functions related to wiring when using Conversion Cables.
 MS48 Conversion Cable for Emitter (F39-JGR3K-MS-L, sold separately)
<Internal wiring diagram>
 MS48 Conversion Cable for Receiver (F39-JGR3K-MS-D, sold separately)
<Internal wiring diagram>
Connector
M12 IP67 connector, 5-wire
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5
(Cross section of conductor: 0.2 mm
2
/insulator diameter: dia. 1.1 mm)
44.7
14.9 dia.
300
31.6
18.5
2-M2.5 screw
16.4
(Unit: mm)
Connected to connector of MS4800 transmitter cable
MS4800
1
2
3
4
5
0 VDC
+24 VDC
Not used
Not used
Not used
Male
Connector
M12 IP67 connector, 8-wire
14.9 dia.
2-M2.5 screw
31.6
18.5
44.7
300
16.4
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5
(Cross section of conductor: 0.2 mm
2
/insulator diameter: dia. 1.1 mm)
(Unit: mm)
Connected to connector of MS4800 receiver cable
MS4800
1
2
3
4
5
6
7
8
+24 VDC
0 VDC
Not used
OSSD 2
Start or EDM (Mode Select)
EDM
Auxiliary Out
OSSD 1
Male
