Omron F3SG-SRB Series User Manual

195
F3SG-SR
User’s Manual
Chapter4 Changing Settings with SD Manager 3
Setting with SD Manager 3
E

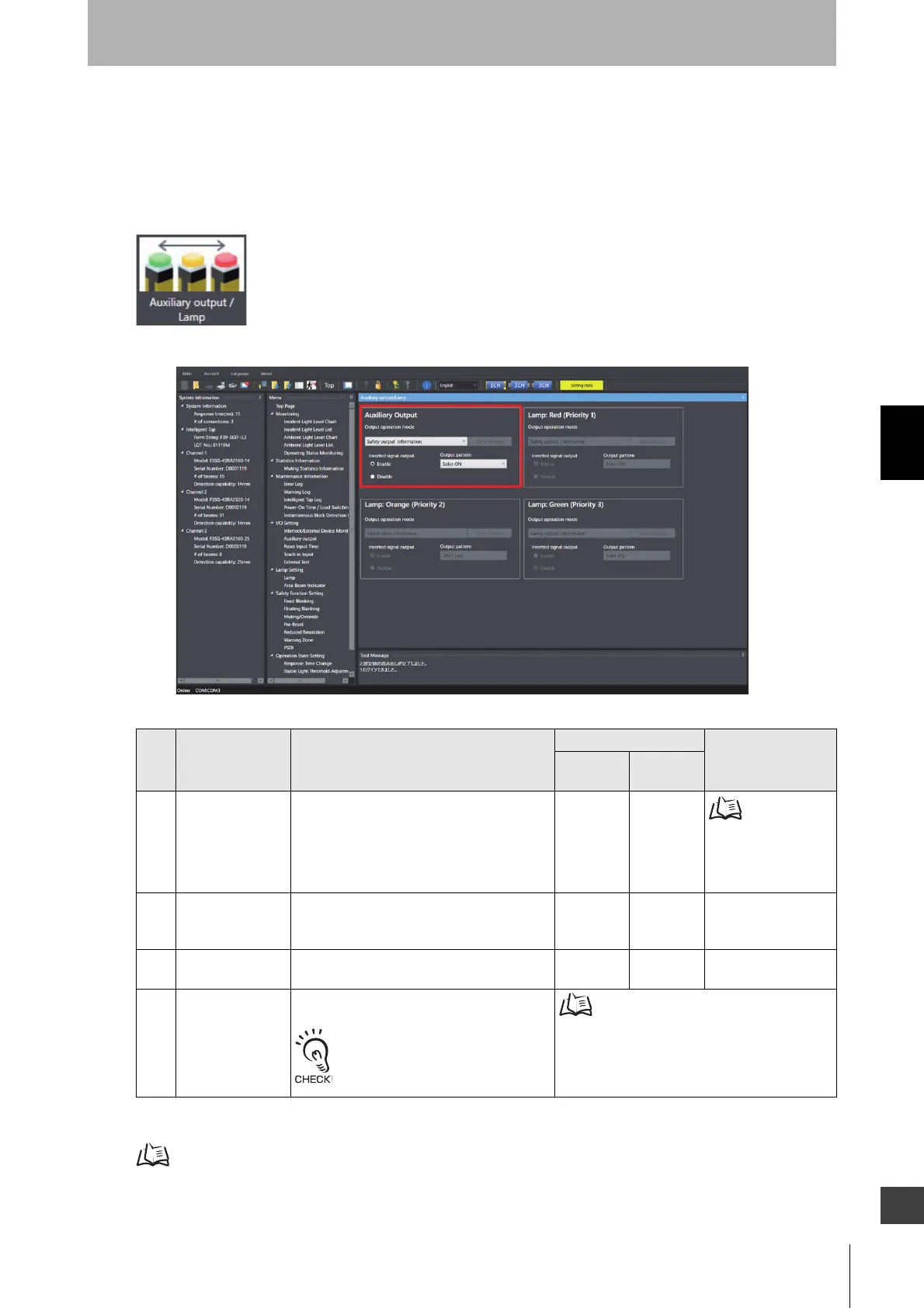

4-3-3. Auxiliary Output/Lamp Setting
4-3-3-1. Auxiliary Output
First, carry out 4-3-1. Preparing to Change Settings.
Next, click the icon below on the Top page.
The setting screen below is displayed.
*1 For this function, setting parameters are kept individually in each case that the muting function is set enabled or disabled.
When changing of the muting state from enabled to disabled or vice versa, confirm the setting of this function again.
For more information on function combinations, refer to Considerations for enabling and disabling Muting function with SD
Manager 3 on 2-1. Combination of Functions.
*2 The auxiliary output is in the pattern described on  Timing chart in 2-12. Auxiliary Output.
No. Function name Description
Initial value
Configurable value or
numerical range
Muting enabled *2
Muting
enabled *1
Muting
disabled *2
1 Output operation
mode of auxiliary
output
Select the information or signal output by the
auxiliary output.
Safety
output
information
Safety
output
information
 Information (Output
operation mode)
assigned to Auxiliary
output
2 Inverted signal
output of auxiliary
output
Select Enable or Disable for inverted signal of
the auxiliary output.
Enable Enable Enable/Disable
3 Output pattern of
auxiliary output
Select a desired output pattern of the auxiliary
output.
Solid-ON Solid-ON Solid-ON/ON 1 time
*2
4 Zone setting Opens a zone setting screen for the
Designated Beam Output function.
The [Zone setting] button is only active
when the [Designated beam output
information] option is selected for the
[Output operation mode].
For more information on settings, refer to
4-3-3-2. Designated Beam Output.
