Chapter2 Warning Zone
F3SG-SR
User’s Manual
System Operation and Functions

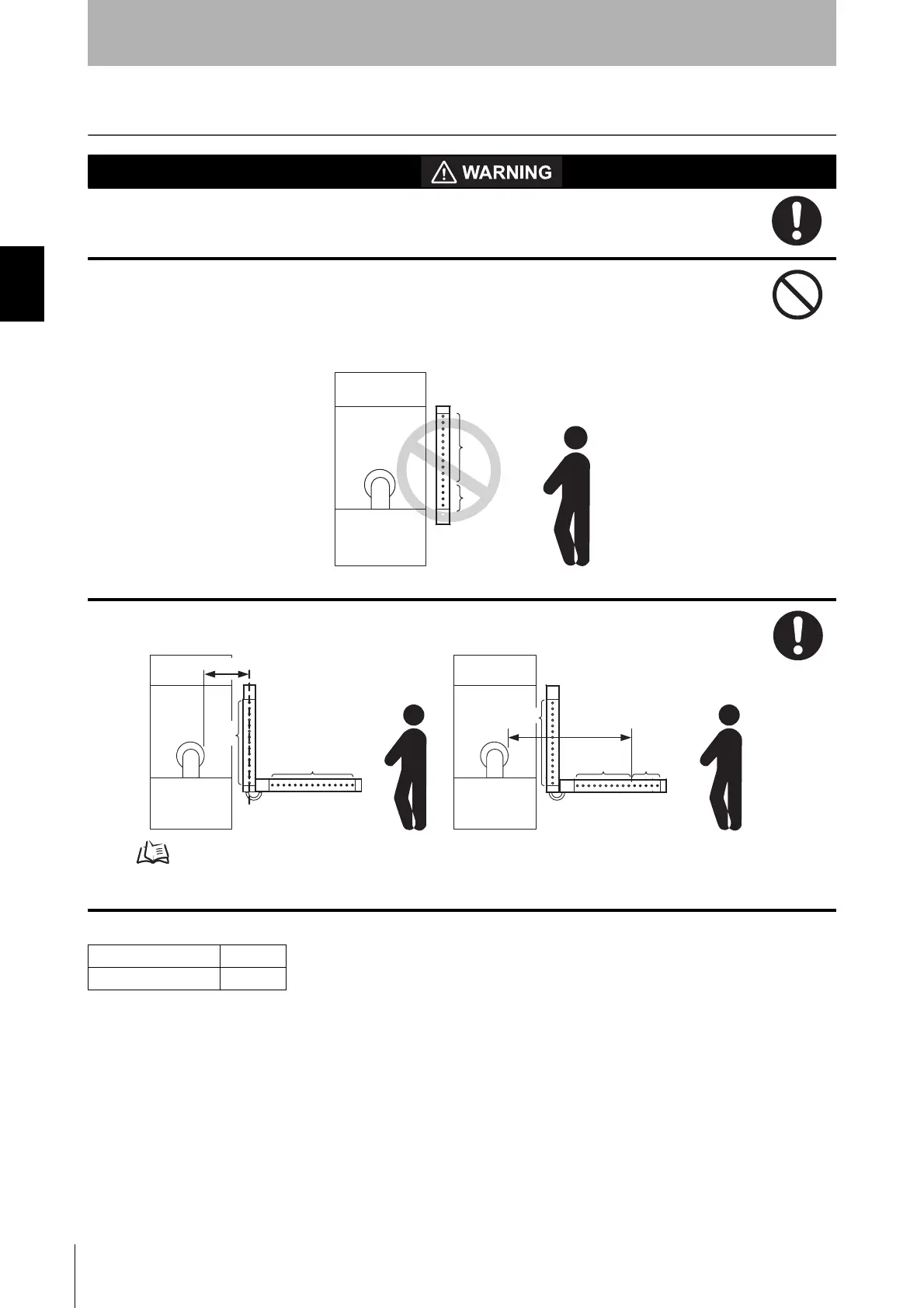

2-18. Warning Zone
When a warning zone is configured, you must attach labels that indicate a border between
normal detection zone and warning zone. Otherwise, the machine may not stop before a person
reaches to the hazardous part, resulting in serious injury.
A warning zone must not be used for safety applications. Always install your system so that a
detection zone should be passed before reaching a hazardous part of the machine. If access to
the hazardous part by reaching over the detection zone of a vertically mounted F3SG-SR cannot
be excluded, the height of the detection zone and the safety distance shall be determined in
consideration of such a risk.
A warning zone must be configured based on a safety distance.
Refer to 5-1-2. Safety Distance for more information on safety distance calculations for orthogonal and
parallel approaches.
2-18-1. Overview
Part of the detection zone can be set as a warning zone.
Example:
• When a person enters, indicator or buzzer should notify warning without stopping a machine.
F3SG-SRA 
F3SG-SRB 
Hazard
Detection zone
Warning zone
Warning zone
Detection
zone
Hazard
Warning zone
Detection Zone
Detection zone
Hazard
Safety distance (S)
Safety
distance (S)
