Chapter5 Mounting
F3SG-SR
User’s Manual
Wiring and Installation
5-3-3. Proper Mounting
5-3-3-1. Proper Mounting Orientation

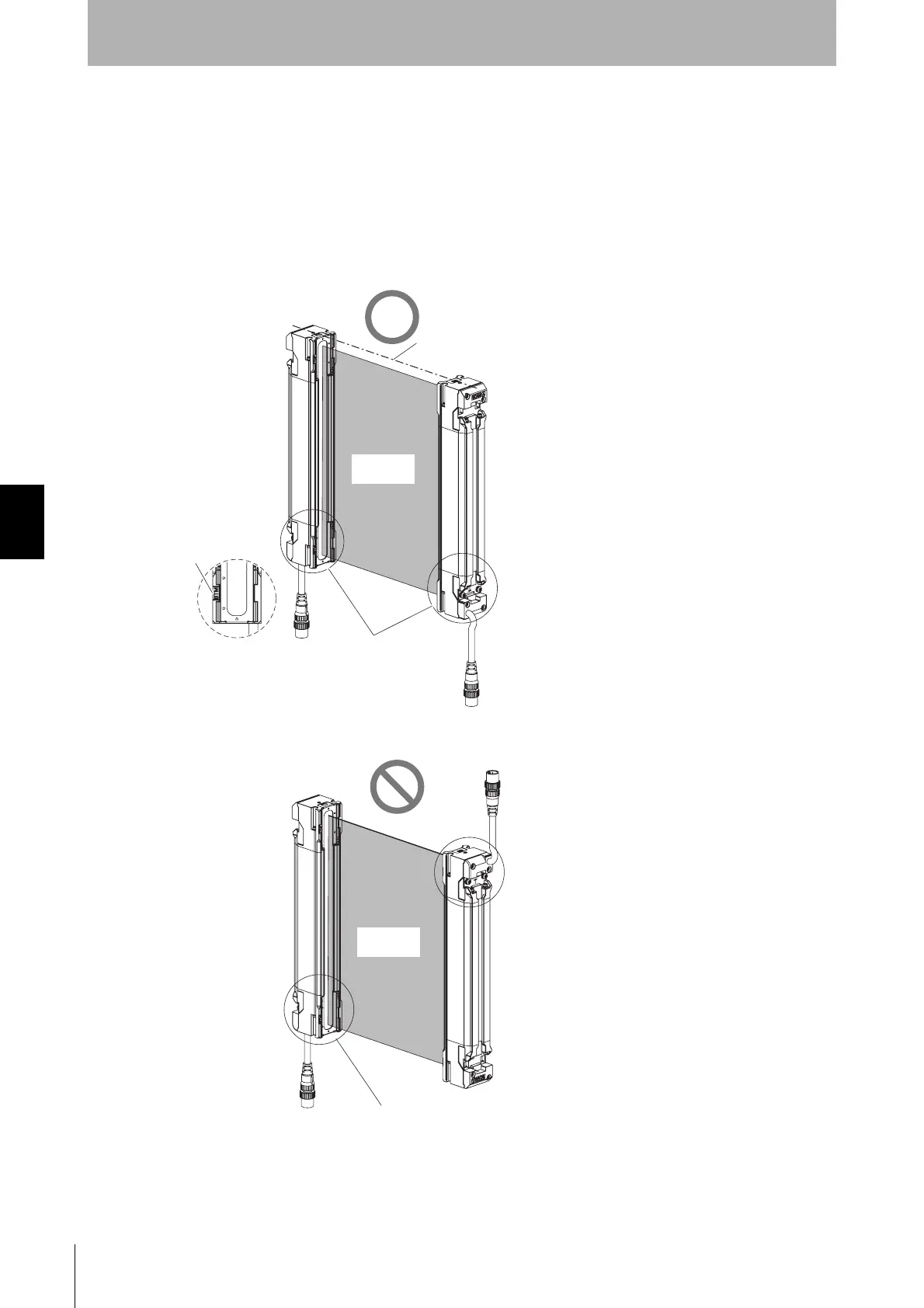

Mount the emitter and receiver so that the detection surfaces of the emitter and receiver face in parallel
to each other as shown below. The detection surfaces of the emitter and receiver not in parallel to each
other or misaligned may fail to operate properly.
 Proper orientation:
 Wrong orientation:
"BTM" mark
Align the resin parts with
the "BTM" mark to face
with each other
Detection
field
Align the heights of the F3SG-SR's
The positions of the "BTM" marks are misaligned.
Detection
field
