Chapter5 Mounting
Wiring and Installation
E
Mount the F3SG-SR on a flat surface. Mounting it on an inclined surface cause the orientation of the
beams to tilt with respect to the floor, resulting in misalignment of the beams of the emitter and
receiver. Mount the emitter and receiver on a level surface by checking the lean by a level.

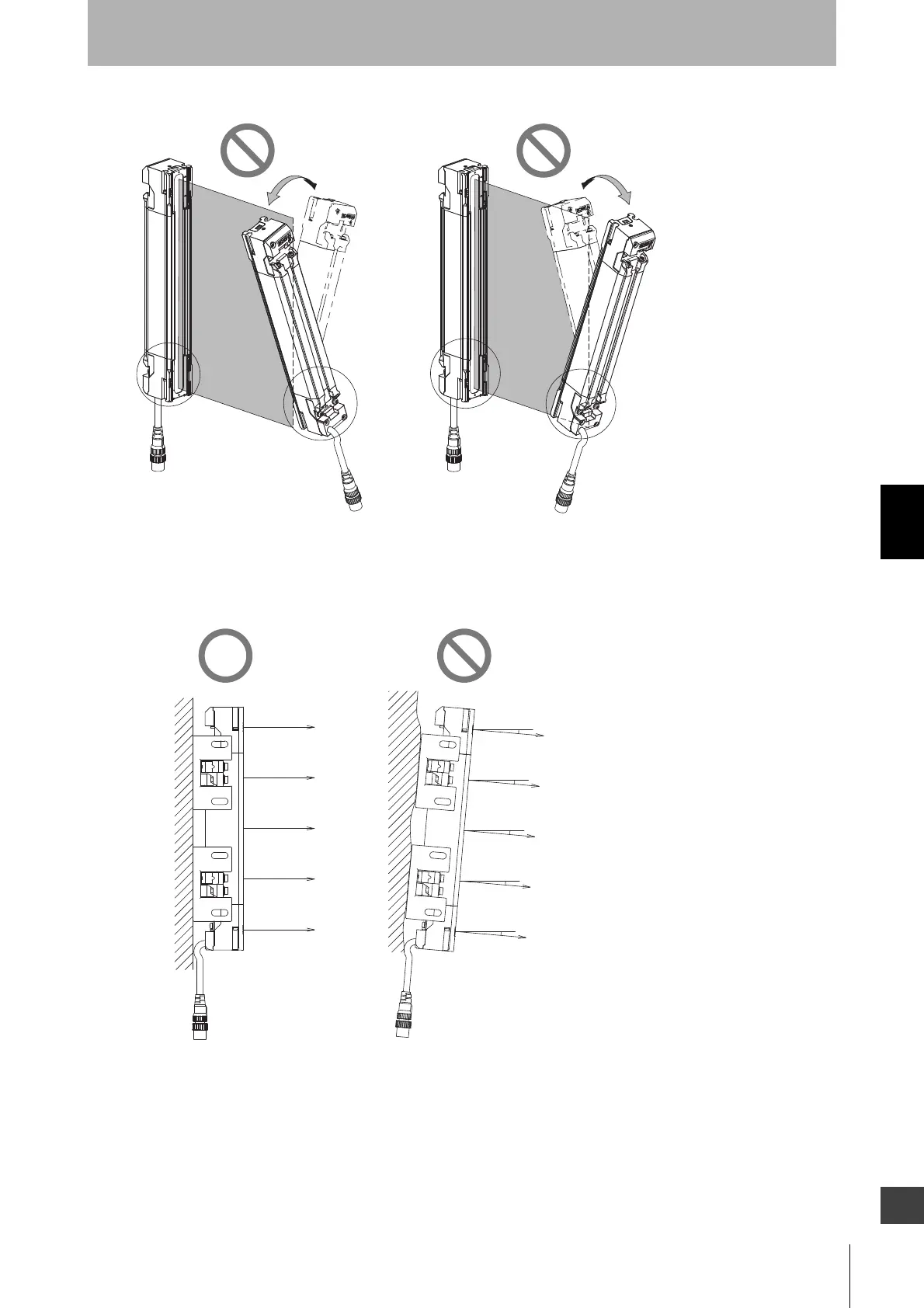

The detection surfaces of the emitter and receiver are not in parallel to each other.
Mounted on a level, flat surface. Mounted on an inclined, uneven surface.
