131
F3SG-SR
User’s Manual
Chapter3 Connection
Setting with Intelligent Tap
E
3-2. Connection

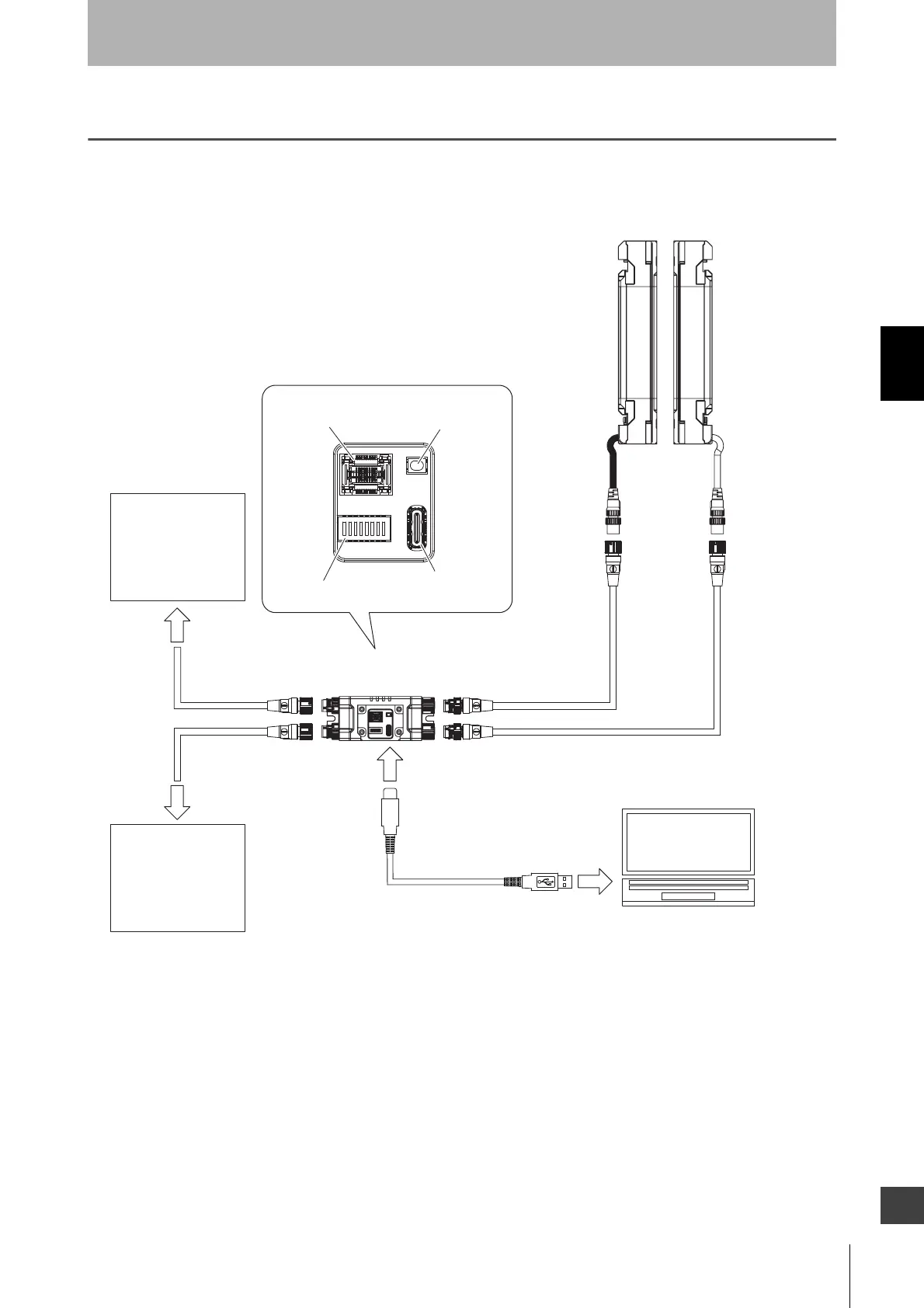

Shown below is a connection example of the Intelligent Tap, F3SG-SR, PC and IO-Link Master. For other
connection examples, refer to 4-1-3-1. Connection Patterns of F3SG-SR, Intelligent Tap, and Each Device.
For IO-Link master details, see the manual of the IO-Link to connect.
F3SG-SR
(Receiver)
F3SG-SR
(Emitter)
Black cable
F39-JGR3K-D
Intelligent Tap
USB Type-C
TM
PC
IO-Link
Master
Gray cable
F39-JGR3K-L
Power
Supply
F39-JGA-D
CN2
CN1
CN3
CN4
F39-JGB-L/
XS5F-D521-DJ0-IL
F39-JGB-D
Push swich
DIP swiches
Bluetooth
®
Communication Unit
Connector
USB Type-C
TM
Connector
F39-JGB-L
To Next Page
