Chapter5 Mounting
F3SG-SR
User’s Manual
Wiring and Installation
5-3-4-4. Mounting with Adjustable Top/Bottom Brackets (F3SJ, F3SN
Adapter) (F39-LSGTB-SJ) and Adjustable Side-Mount Brackets
(Intermediate Brackets) (F39-LSGA)
The mounting method of the Adjustable Top/Bottom Bracket (F3SG-RA/RE Adapter) (F39-LSGTB-RE) or the Adjustable
Top/Bottom Bracket (MS4800, F3SR Adapter) (F39-LSGTB-MS) are the same as that of the Adjustable Top/Bottom
Bracket (F3SJ, F3SN Adapter) (F39-LSGTBSJ).
1. Loosen the Alignment Screws (hexagon socket head cap screw (M4×7)) of the Top/Bottom Bracket (3)
and change the angle of the Top/Bottom Bracket (3) according to its mounting direction. Then loosen the
Mounting Screws (low head hexagon socket head cap screw (M4×7)) of Top/Bottom Bracket (2). (Fig. 1)

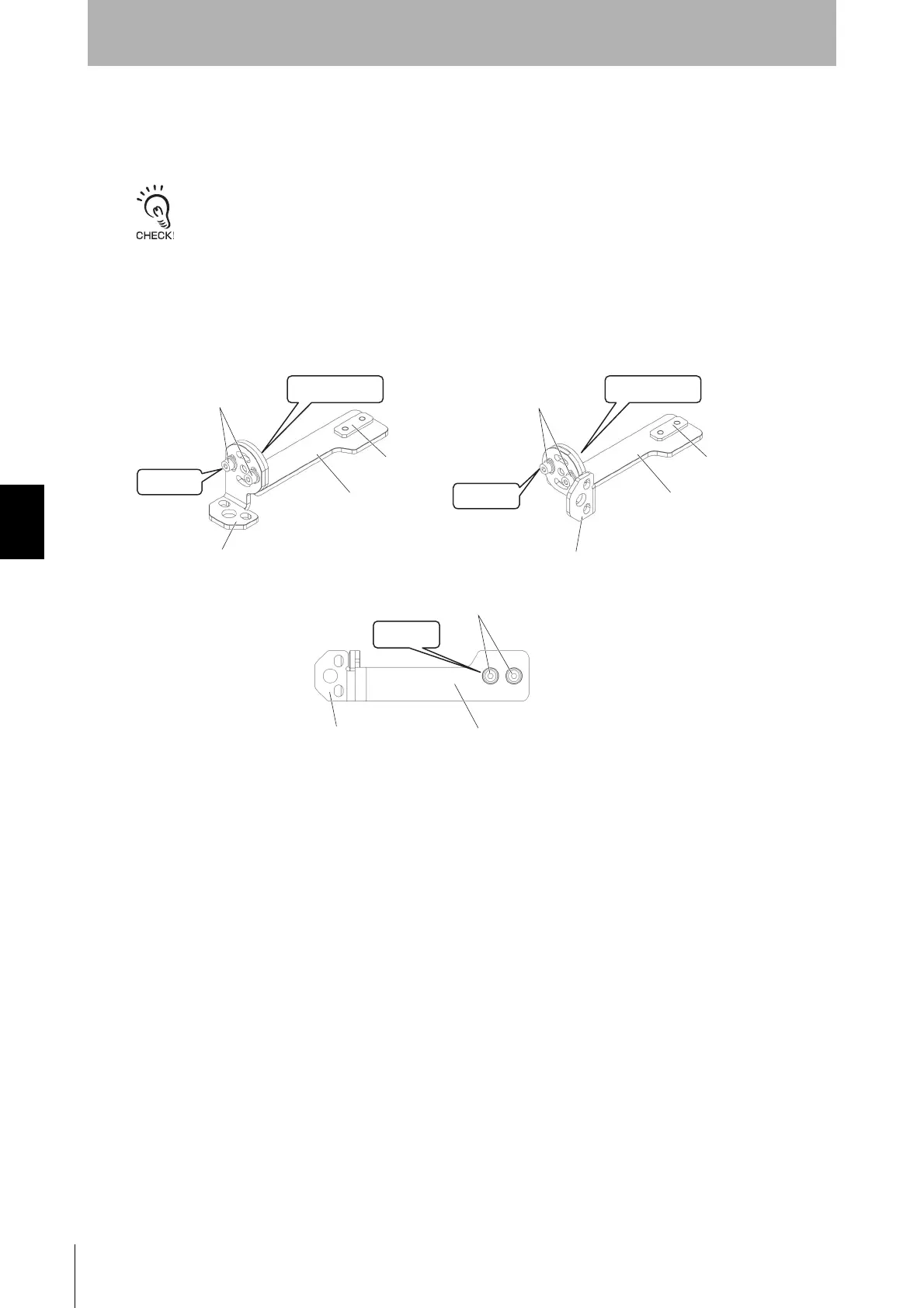

Fig. 1
<Sidemounting><Backsidemounting>
AlignmentScrew
(hexagonsockethead
capscrew(M4×7))
AlignmentScrew
(hexagonsockethead
capscrew(M4×7))
Top/BottomBracket(1)
Top/BottomBracket(2)
Top/BottomBracket(3)
2.Adjustangle
Top/BottomBracket(2)
Top/BottomBracket(3)
MountingScrew
(hexagonsocketheadcapscrew(M4×7))
Top/BottomBracket(2)
Top/BottomBracket(3)
1.Loosen
Top/BottomBracket(1)
3.Loosen
2.Adjustangle
1.Loosen
