242
Chapter4 Basic Operation of SD Manager 3 Mobile APP
F3SG-SR
User’s Manual
Setting with SD Manager 3
4-5-5. Monitoring with SD Manager 3
4-5-5-1. Incident/Ambient Light Level Monitoring

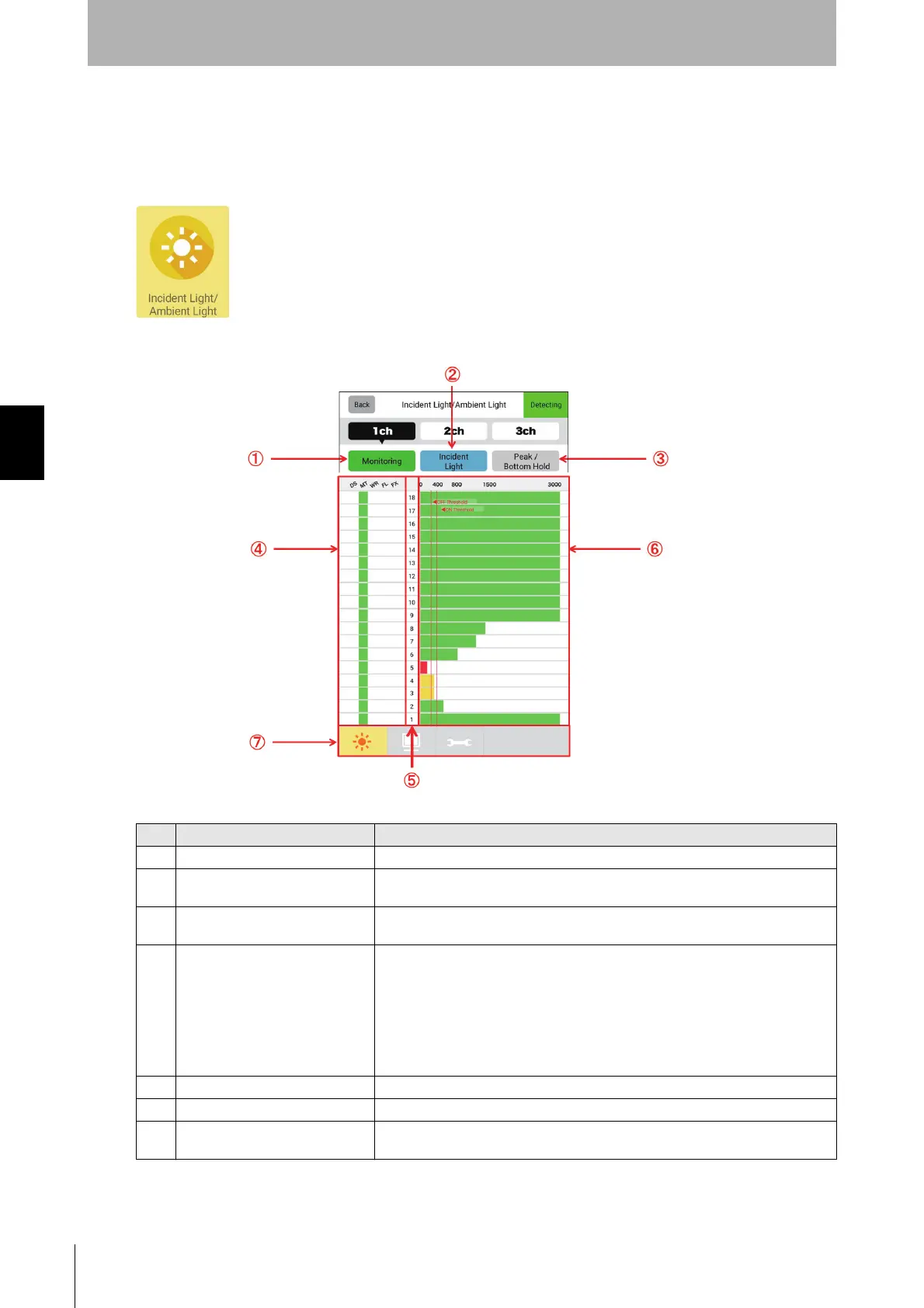

Tap the following icons on the main screen.
The screen below is displayed.
No. Function name Description
1 Light level monitoring operation Starts or stops monitoring of the selected function.
2 Incident light/ambient light
switching
Select either incident light or ambient light as the monitoring target.
3 Peak and bottom holding
operation
When setting the display, the maximum and minimum values of incident light are
displayed with a water-color and pink lines, respectively.
4 Zone display Displays the function assigned to the beam.
Each display means the following function.
• DS: Designated beam output zone
• MT: Muting zone
• WR: Warning zone
• FL: Floating blanking zone
or RR: Reduced resolution zone
• FX: Fixed blanking zone
5 Beam display Displays the beams of the F3SG-SR being monitored.
6 Light level display Displays the light level and ON/OFF threshold of the selected function.
7 Function switching The icon of the function which is being monitored is highlighted. Tapping the icon of
the other function switches to the display of the corresponding function.
To Next Page
