271
F3SG-SR
User’s Manual
Chapter5 Dimensions
Wiring and Installation
E
5-2-5. Bluetooth
®
Communication Unit
Bluetooth
®
Communication Unit (F39-SGBT, sold separately)

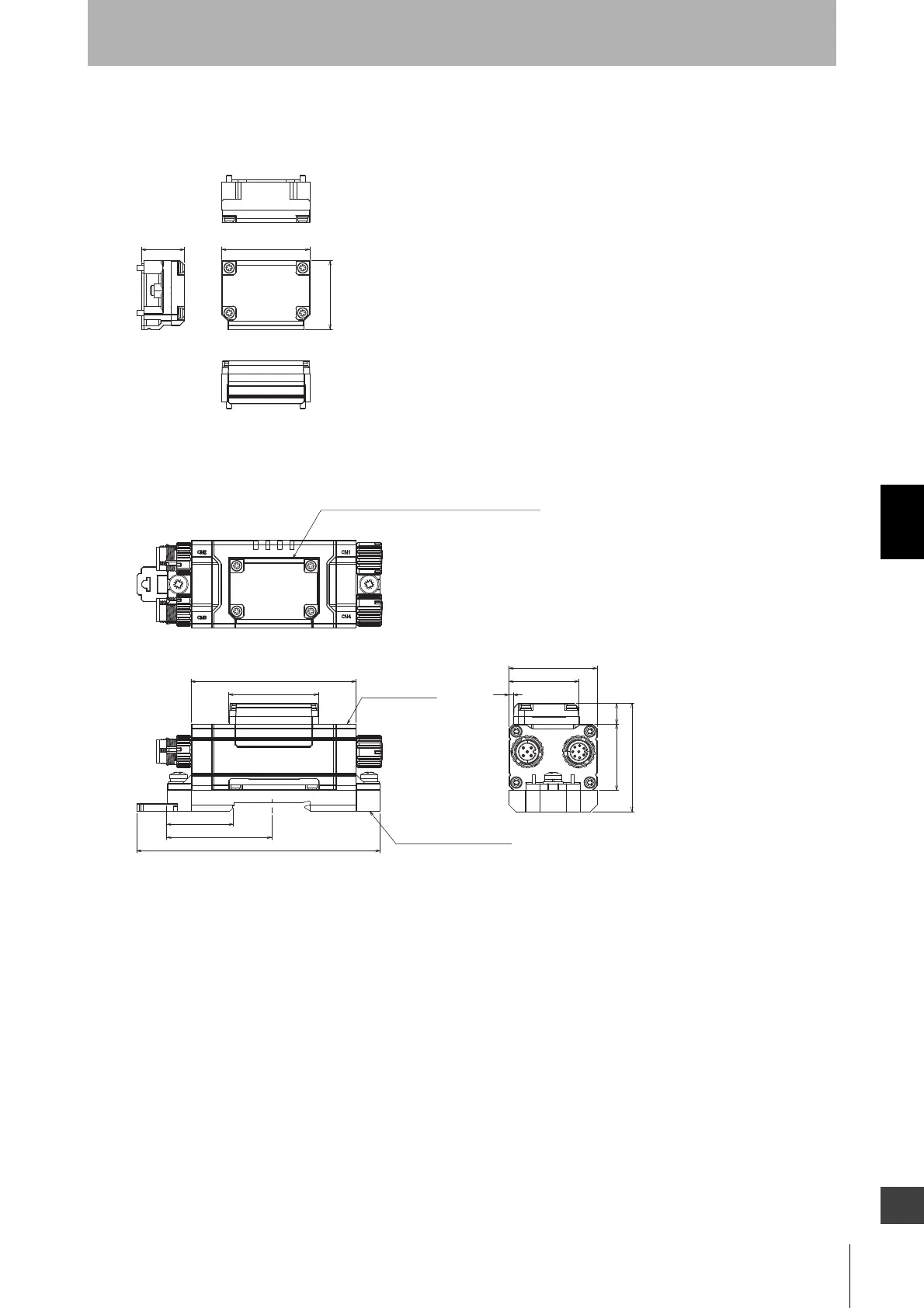

Assembly Dimensions (Intelligent Tap/Bluetooth
®
Communication Unit/Intelligent Tap
Bracket, sold separately)
Material: PBT resin (Body parts)
[Unit: mm]
31.9
40.7
19.7
[Unit: mm]
75
40.7
49.1
30
（9.4）
31.9
40
2
111
30.3
47.8
Intelligent Tap Bracket
F39-LITF1
Intelligent Tap
F39-SGIT-IL3
Bluetooth
®
Communication Unit F39-SGBT
