Chapter6 Wiring Examples (for F3SG-SR)
Input/Output Circuit and Applications
E

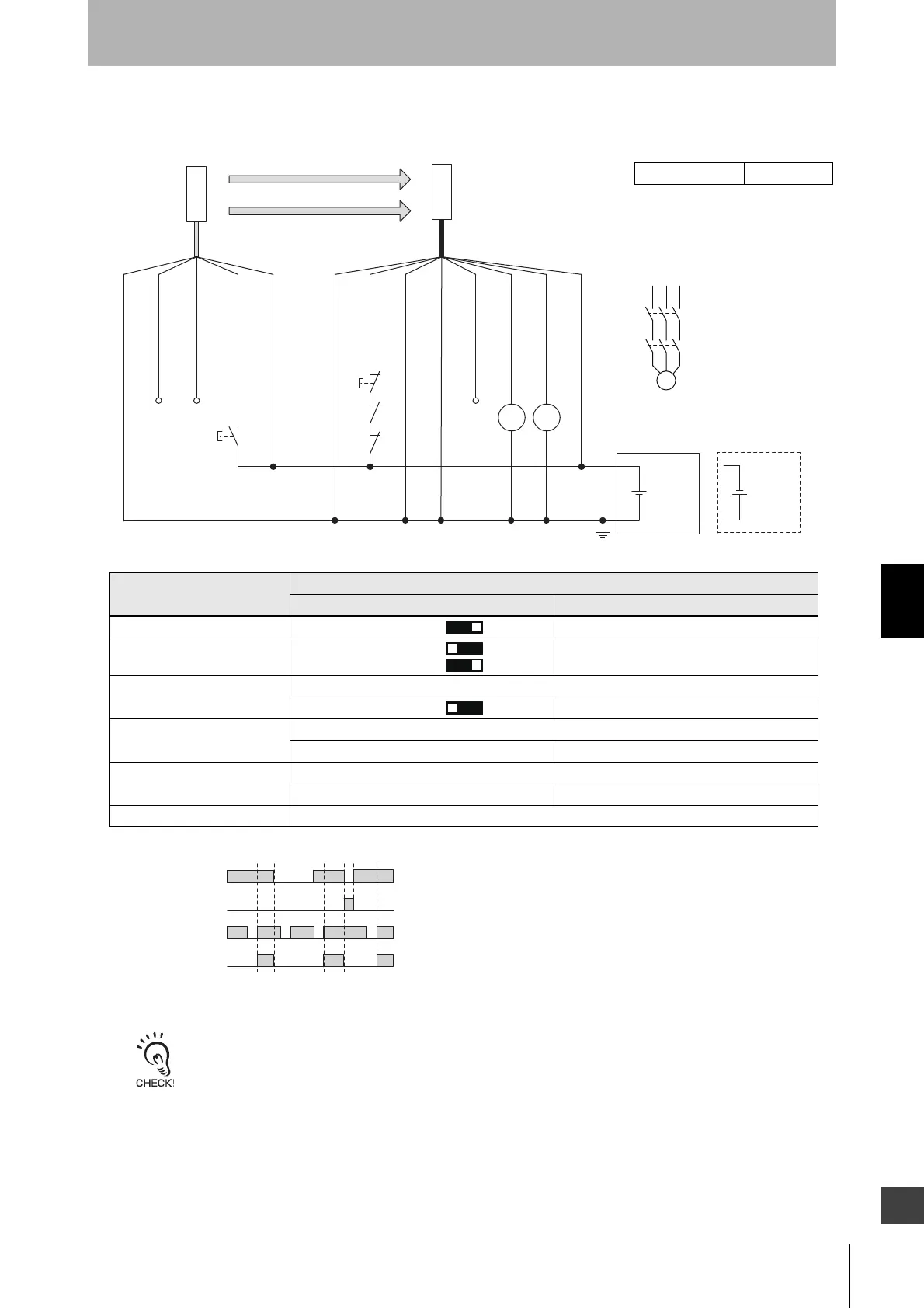

6-2-1-4. Manual Reset Mode with EDM
[Wiring Example]
When a functional earth is necessary, wire an earth cable according to the example in 6-2-1-1. Auto Reset Mode with
Optical Synchronization and EDM Unused. Also refer to 5-4-4. Functional Earth Connection for more information.
KM1
KM2
M
F39-JGC-L
F39-JG
C-D
Timing chart
24 VDC
Wiring for NPN *1
*3
24 VDC
KM1
KM2
S2
S1
KM1 KM2
S1: Test switch
S2: Lockout/interlock reset switch
KM1, KM2: Safety relay with forcibly guided contacts (G7SA) or magnetic contactor
M: Motor
Beam state: Unblocked
Blocked
Test switch (S1)
Reset switch (S2)
OSSD
Receiver
Emitter
OSSD 1 (Black) OSSD 2 (White) 24V/0V (Brown)
OPERATING RANGE SELECT INPUT (Yellow) *2
TEST (Black) Not used (White) 24V/0V (Brown) 0V/24V (Blue) 0V/24V (Blue) AUX (Red) MUTE B (Pink) MUTE A (Gray) RESET/EDM (Yellow)
*1. Reverse the polarity of the power supply when using in the NPN system.
*2. Connect the line to 0 VDC if Operating Range Selection is used in Short Mode.
*3. This is the case for a PELV circuit.
*4. Set the function with the DIP Switches on the Intelligent Tap or the SD Manager
3, restore the settings to the F3SG-SR, and perform wiring according to the
wiring diagram.
*5. This wiring example shows light emission stop when connected to 24 VDC with
PNP setting, and light emission stop when connected to 0 VDC with NPN
setting. If TEST switch is not needed, refer to 2-6. External Test.
: Indicates a switch position.
Function
Setting
DIP switch SD Manager 3
EDM *4 EDM Enabled
[Externaldevicemonitoring]:Enable
Interlock *4 Manual Reset [Start interlock] : Enable
[Restart interlock] : Enable
Operating Range Selection
Long : Open the OPERATING RANGE SELECT INPUT line of the emitter or connect the line to 24 VDC.
Long *4 [Operating Range Selection] : Long mode *4
Non-Muting system Perform wiring according to the wiring diagram.
N/A [Muting] : Disable *4
External Test used Connect the TEST line of the emitter to 24V/0V of the emitter via a test switch (NO contact). *5
N/A [External test signal inversion] : Disable
Optical Synchronization Do not connect the COM(+) and COM(-) lines of the of emitter and receiver with each other.
㻟㻻㻺
㻠㻻㻺
㻡㻻㻺
㻤㻻㻺
Intelligent Tap Needed
