4-3-2-3. Teach-in Input
First, carry out 4-3-1. Preparing to Change Settings.
Next, on the Top page, click the icon below.

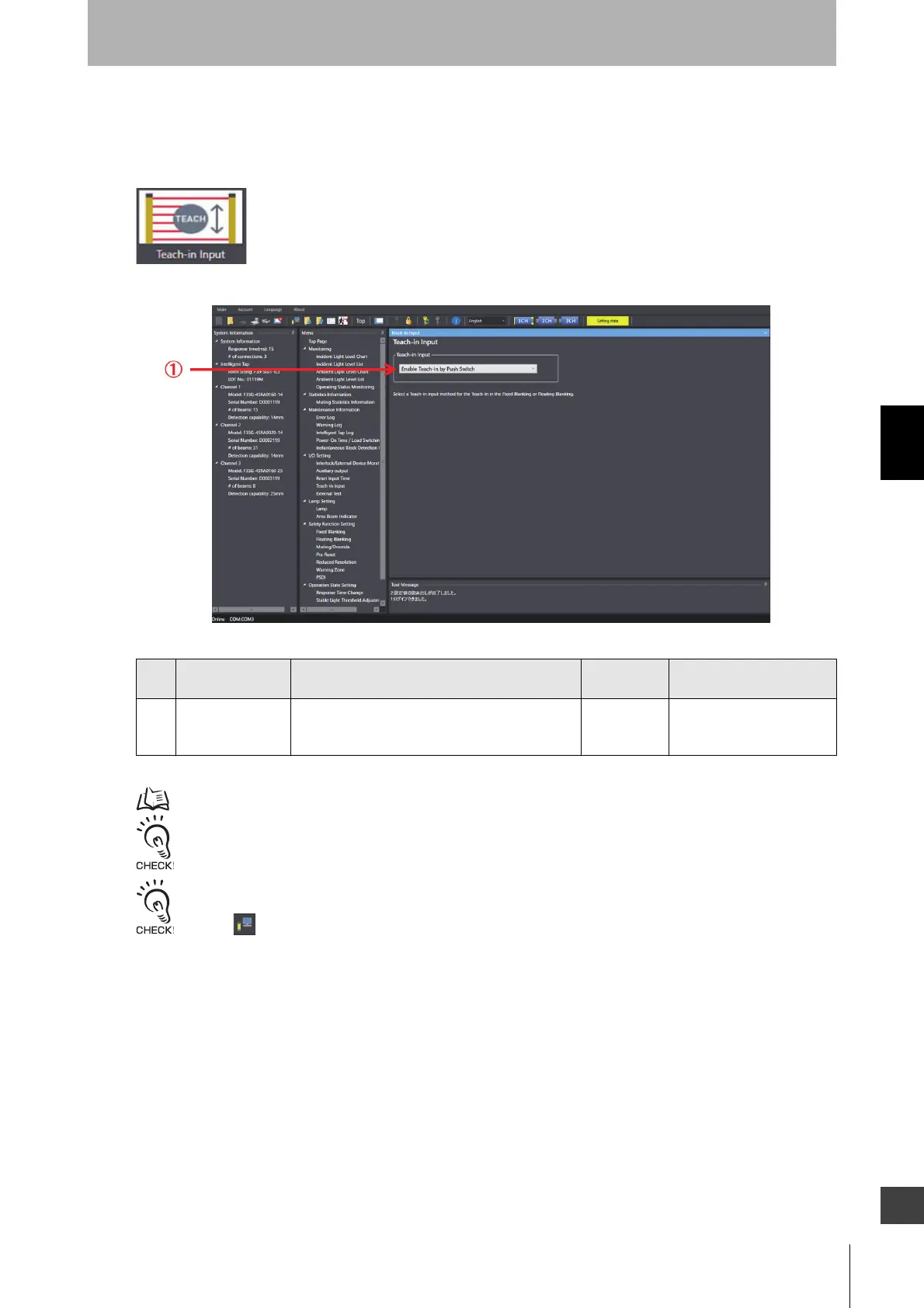

The setting screen below is displayed.
For more information on teach-in, refer to 3-7. Teach-in (Fix Blanking / Floating Blanking).
When changing the settings is complete, confirm the settings and write the configuration to the F3SG-SR.
To enable the written configuration, refer to 4-2-7-3. Writing Configuration into Intelligent Tap.
When connecting the Intelligent Tap to a F3SG-SR and trying to return the F3SG-SR to [Detecting], follow step 4 of
4-1-3-2. Connection Procedure When Using USB Connector to restart the F3SG-SR and Intelligent Tap, or click the
[Monitor] button.
No. Function name Description Initial value
Configurable value or
numerical range
1 Teach-in Input Select the method of the teach-in input when
conducting teach-in of fixed blanking or floating
blanking.
Enable
Teach-in by
Push Switch
Disable/Enable Teach-in by
Push Switch/Enable Teach-
in by Push Switch or wiring
