Omron F3SG-SRB Series User Manual

294
Chapter5 Wiring
F3SG-SR
User’s Manual
Wiring and Installation
 Root-Plug Cable for Extended for Receiver (F39-JGRK-D, sold separately)

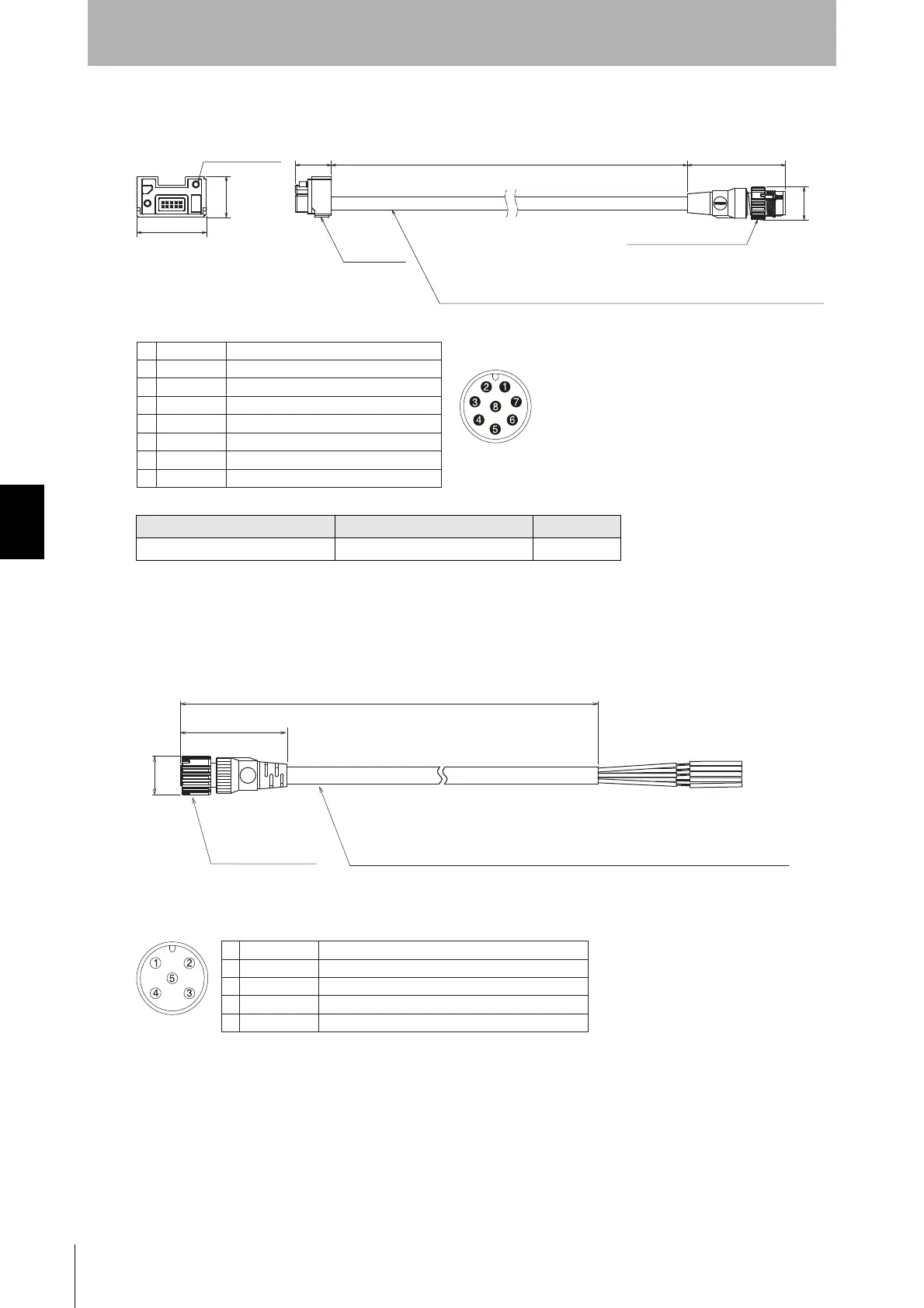

<Internal wiring diagram>
5-4-3-3. Extended Socket-Straight Cable
 Extended Socket-Straight Cable for Emitter (F39-JGA-L, sold separately)
<Internal wiring diagram>
Emitter cable (Gray) Receiver cable (Black) Length
F39-JGR3K-L F39-JGR3K-D 0.3 m
(Unit: mm)
Connector
M12 IP67 Connector
14.9 dia.
2-M2.5 screw
31.6
18.5
44.7
300
16.4
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending r
adius R5, 8-wire
(Cross section of conductor: 0.2 mm
2
/insulator diameter: dia. 1.1 mm)
Male
Brown 24V/0V2
Blue 0V/24V7
Black OSSD 15
White
OSSD 2
6
Yellow RESET/EDM1
Red AUX8
Gray MUTE A/PRE-RESET/PSDI/COM(+)3
Pink MUTE B/COM(-)4
40.7
L
Insulated vinyl round cable, dia. 6.6, minimum bending radius R36, 5-wire
(Cross section of conductor: 0.32 mm
2
/insulator diameter: dia. 1.2 mm/AWG22)
dia. 14.9
M12 IP67 connector
(Unit: mm)
Connected to root cable or
Extended Plug-Socket Cable
Brown
Black
Blue
White
Yellow
24V/0V
TEST
0V/24V
COM(+)
OPERATING RANGE SELECT INPUT/COM(-)
1
2
3
4
5
Female
