4-2-9. Safety Distance Calculation

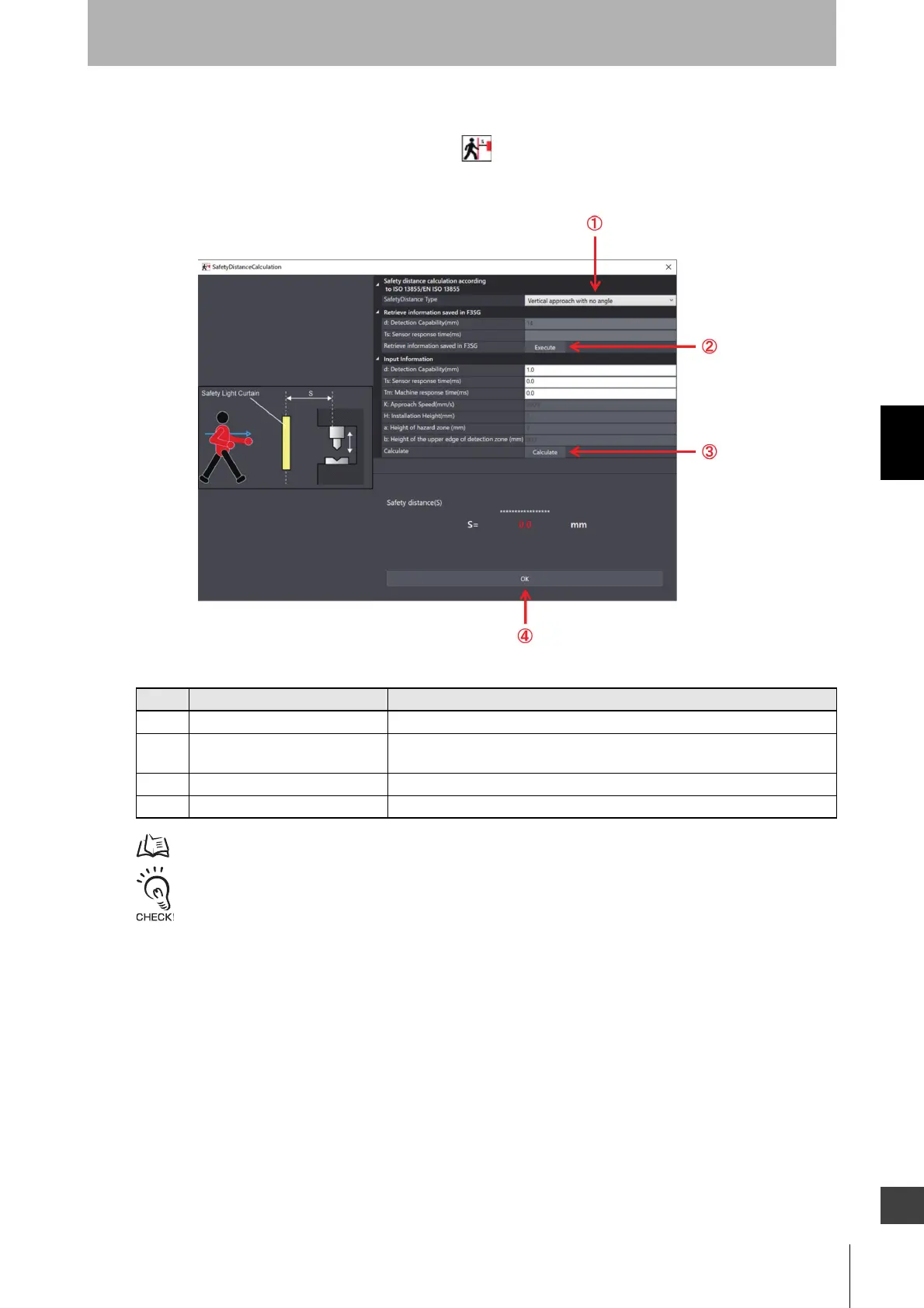

Click the [Safety Distance Calculation] button from the [Main] menu on the tool bar or directly
from the tool menu.
For safety distance, refer to 5-1-2. Safety Distance. The calculation is based on values entered in the screen.
To calculate on the actually connected F3SG-SR, execute [Retrieve information saved in F3SG] to update the numerical
values.
No. Function Description
1 Types of safety distance Select a type of safety distance to be calculated.
2 Retrieve information from sensor Update the data in [Input Information] to reflect the information in [Retrieve
information stored in sensor].
3 Calculate Calculates safety distance according to the specified condition.
4 OK Closes the [Safety Distance Calculation] window.
