By the zone display, the reduced resolution zone is displayed only when the applicable function is enabled.
4-5-5-2. Status Monitoring Information
 Sensor Status Information

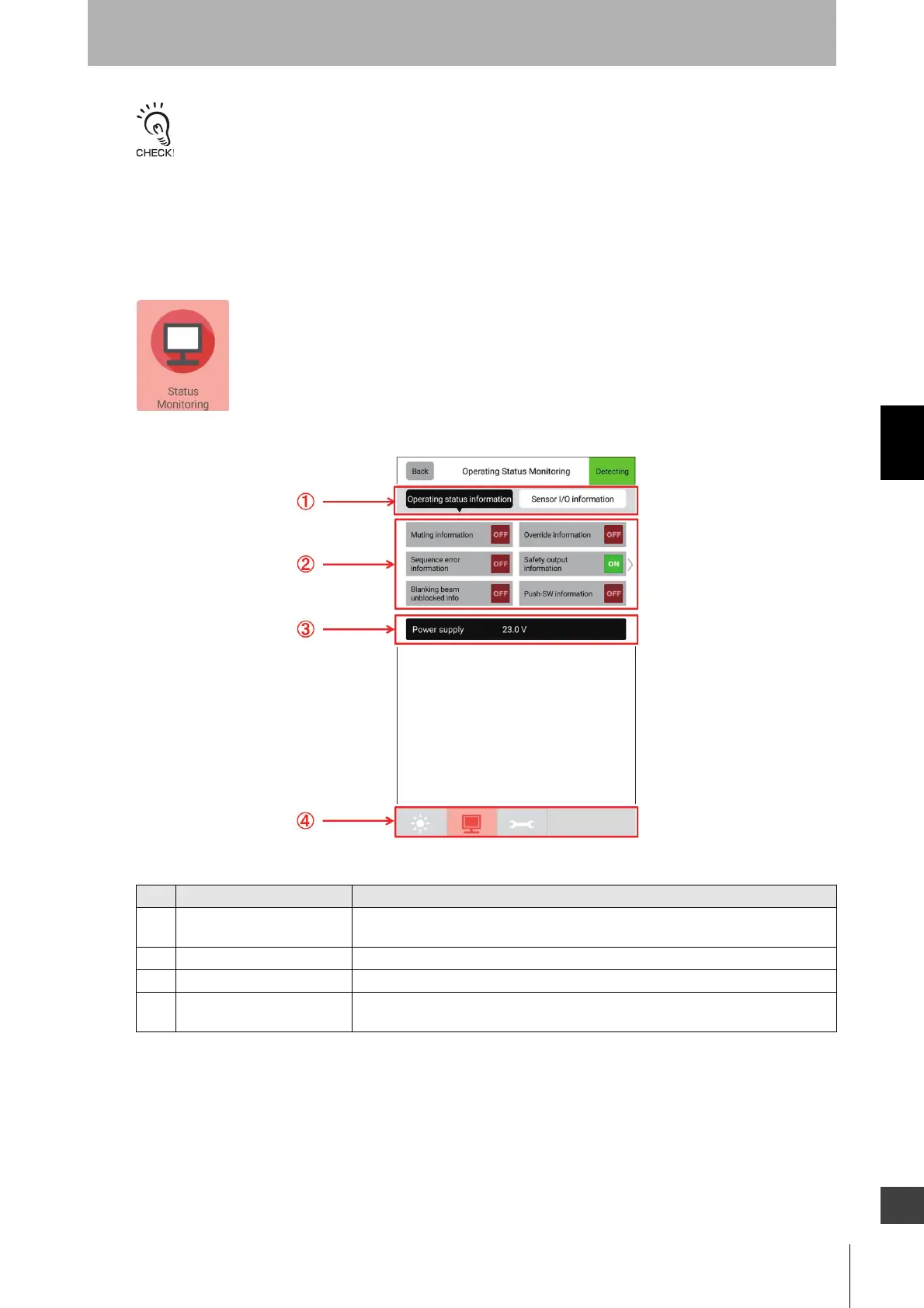

Tap the following icons on the main screen.
The screen below is displayed.
No. Function name Description
1 Status switching As the monitoring target, select either sensor status information or sensor I/O
information.
2 Sensor status display Displays the status of the sensor being monitored.
3 Power supply voltage display
Displays the power supply voltage of the sensor being monitored.
4 Function switching The icon of the function which is being monitored is highlighted. Tapping the icon of the
other function switches to the display of the corresponding function.
