Omron F3SG-SRB Series User Manual

257
F3SG-SR
User’s Manual
Chapter5 Installation Considerations
Wiring and Installation
E

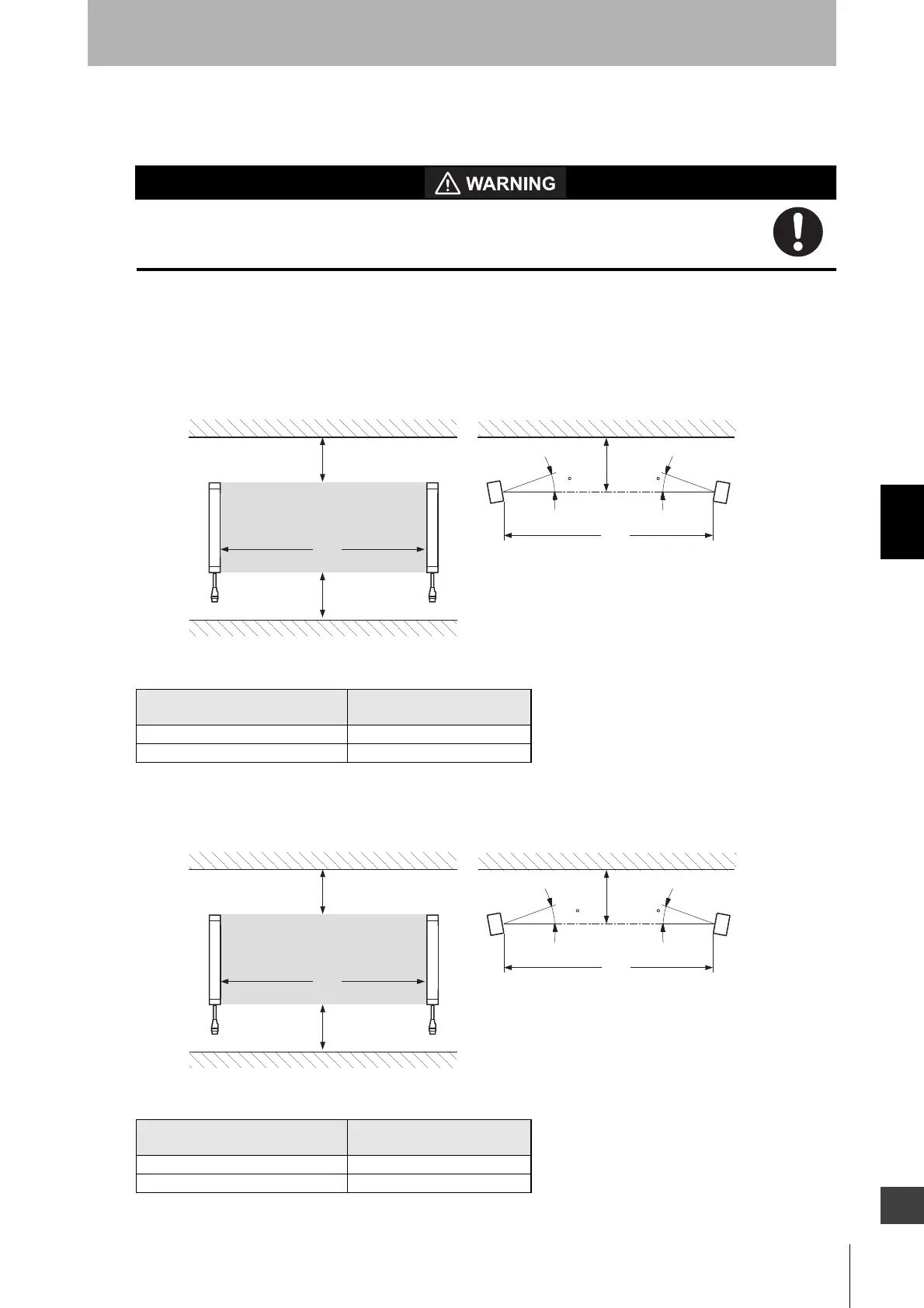

5-1-3. Distance from Reflective Surfaces
Install the F3SG-SR so that it is not affected by reflective surfaces. Failure to do so may
hinder detection, resulting in serious injury.
Install the sensor system at distance D or further from highly reflective surfaces such as metallic walls,
floors, ceilings, or workpieces, as shown below.
F3SG-SR (Type 4 ESPE)
5-1-3-1. F3SG-SR (Type 2 ESPE)
Distance between an emitter and a
receiver (operating range L)
Allowable installation distance
D
0.3 to less than 3 m 0.13 m
3 m or more L/2 x tan5 ° = L x 0.044 m
Distance between an emitter and a
receiver (operating range L)
Allowable installation distance
D
0.3 to less than 3 m 0.26 m
3 m or more L/2 x tan10 ° = L x 0.089 m
L
D
D
L
D
5
5
Detection zone
Emitter
Receiver
Reflective ceiling
Reflective floor
Emitter
Receiver
Reflective surface
L
D
D
L
D
10
10
Detection zone
Emitter
Receiver
Reflective ceiling
Reflective floor
Emitter
Receiver
Reflective surface
