239
F3SG-SR
User’s Manual
Chapter4 Basic Operation of SD Manager 3 Mobile APP
Setting with SD Manager 3
E

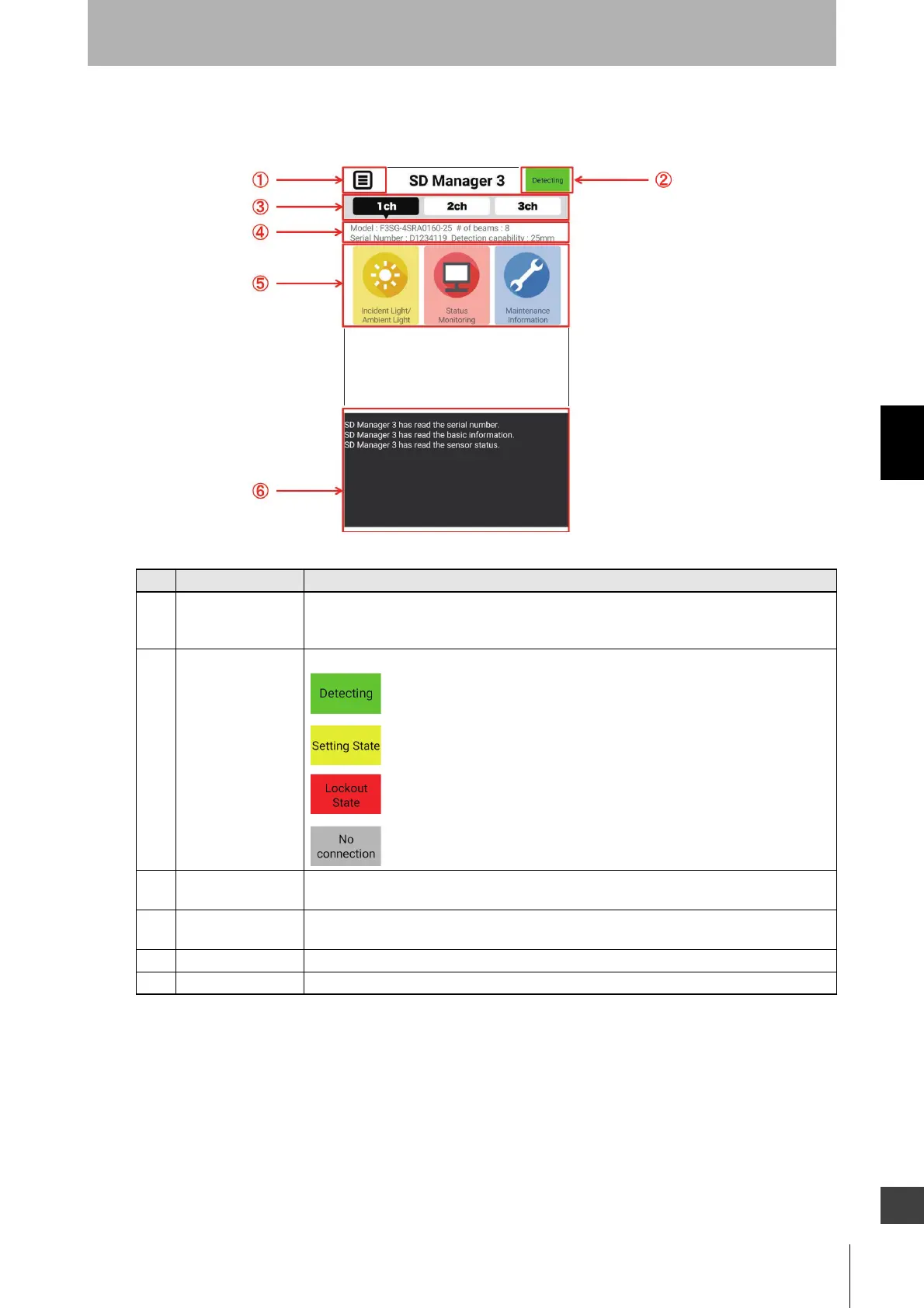

4-5-4-2. Main Screen
This section describes each icon of the main screen.
No. Function name Description
1 Menu button Displays the menu screen.
From this menu screen, you can confirm the app version or shut down the app. For details, refer
to 4-5-4-3. Version Information and 4-5-4-4. Shutting Down.
2 Sensor operating
state display
Shows the following statuses of the F3SG-SR.
Operating: The F3SG-SR keeps normal operation.
Setting state: It is possible to read configuration from the F3SG-SR. The safety
outputs of the F3SG-SR are in the OFF state.
Lockout state: The F3SG-SR is in the LOCKOUT State.
No connection: The F3SG-SR and SD Manager 3 Mobile APP are disconnected
or not properly connected.
3 Channel switching Select the channel monitored.
The display changes according to the cascade connection of the F3SG-SR.
4 Sensor basic
information display
Shows information on the F3SG-SR connected.
5 Function icon display Displays the function capable of displaying the monitored information on the screen.
6 Log display Displays messages according to the user operations and connection states.
To Next Page
