270
Chapter5 Dimensions
F3SG-SR
User’s Manual
Wiring and Installation

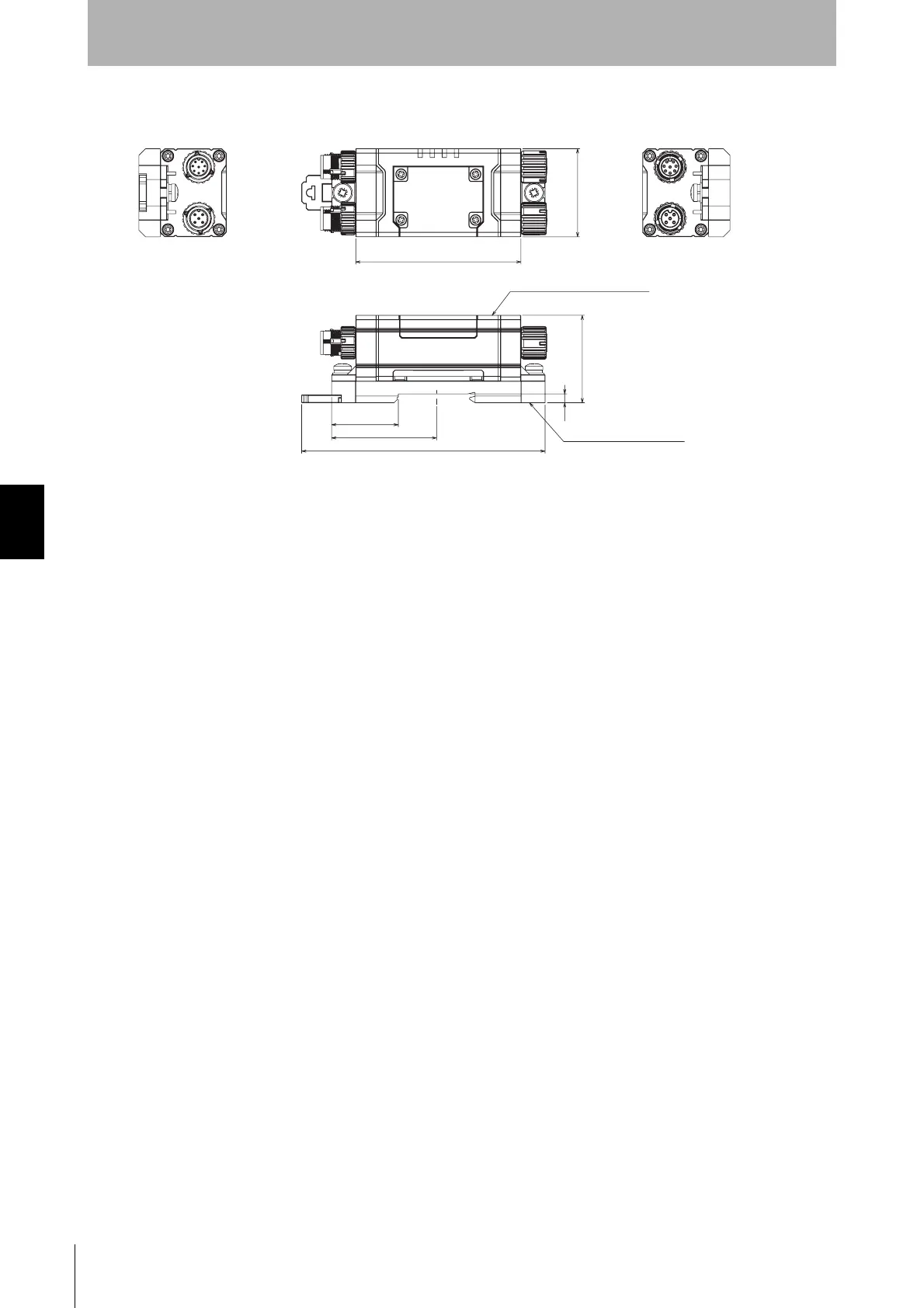

Assembly Dimensions (Intelligent Tap/ Intelligent Tap Bracket)
Intelligent Tap F39-SGIT-IL3
Intelligent Tap Bracket
F39-LITF1
Material: PBT resin (Body parts)
[Unit: mm]
75
40
39.7
4
111
30.3
47.8
<Mounting on DIN track>
