F3SG-SR
User’s Manual
Chapter5 Mounting
Wiring and Installation
E

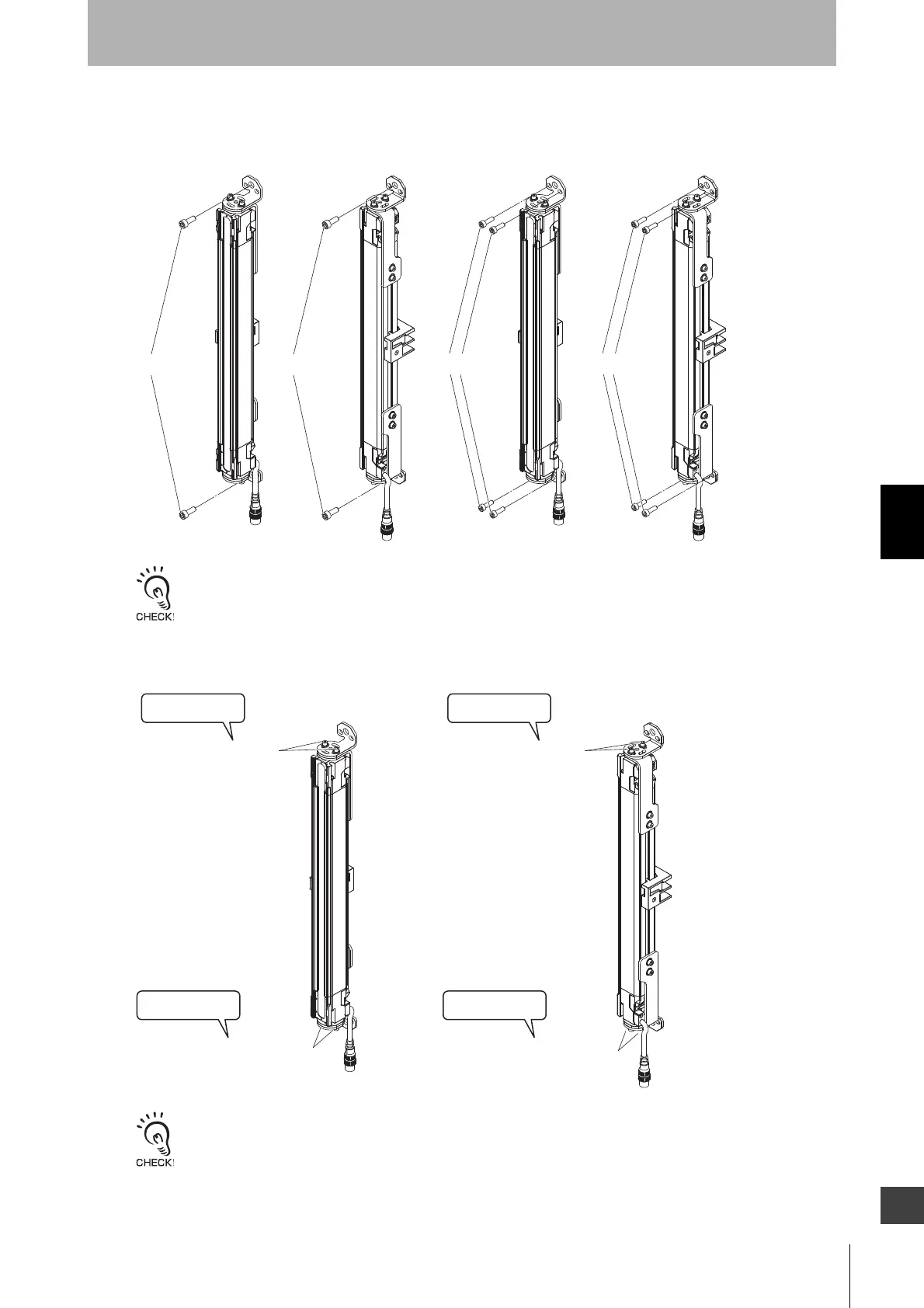

6. Securely tighten screws to fix the Top/Bottom Bracket to the mounting position of the wall surface. (Fig.7)
Screws to mount the brackets to the wall are not included.
7. Securely tighten the Alignment Screw of the Top/Bottom Bracket to fix the bracket to the sensor
housing. The recommended torque to tighten the Alignment Screw is 3.0 N•m. (Fig. 8)
Tightening screws with a torque that considerably exceeds the recommended torque may cause failure.
Fig. 7
Using one M8 screw
<Backside mounting> <Side mounting> <Backside mounting> <Side mounting>
Using two M5 or M6 screws
M8 M8
M5/M6 M5/M6
<Backsidemounting> <Sidemounting>
Fig. 8
AlignmentScrew
(Top/BottomBracket)
AlignmentScrew
(Top/BottomBracket)
Securelytighten
Securelytighten
AlignmentScrew
(Top/BottomBracket)
Securelytighten
AlignmentScrew
(Top/BottomBracket)
Securelytighten
