Chapter5 Wiring
F3SG-SR
User’s Manual
Wiring and Installation
F3SJ-B/A Conversion Cable for Receiver (F39-JGR3K-SJ-D, sold separately)

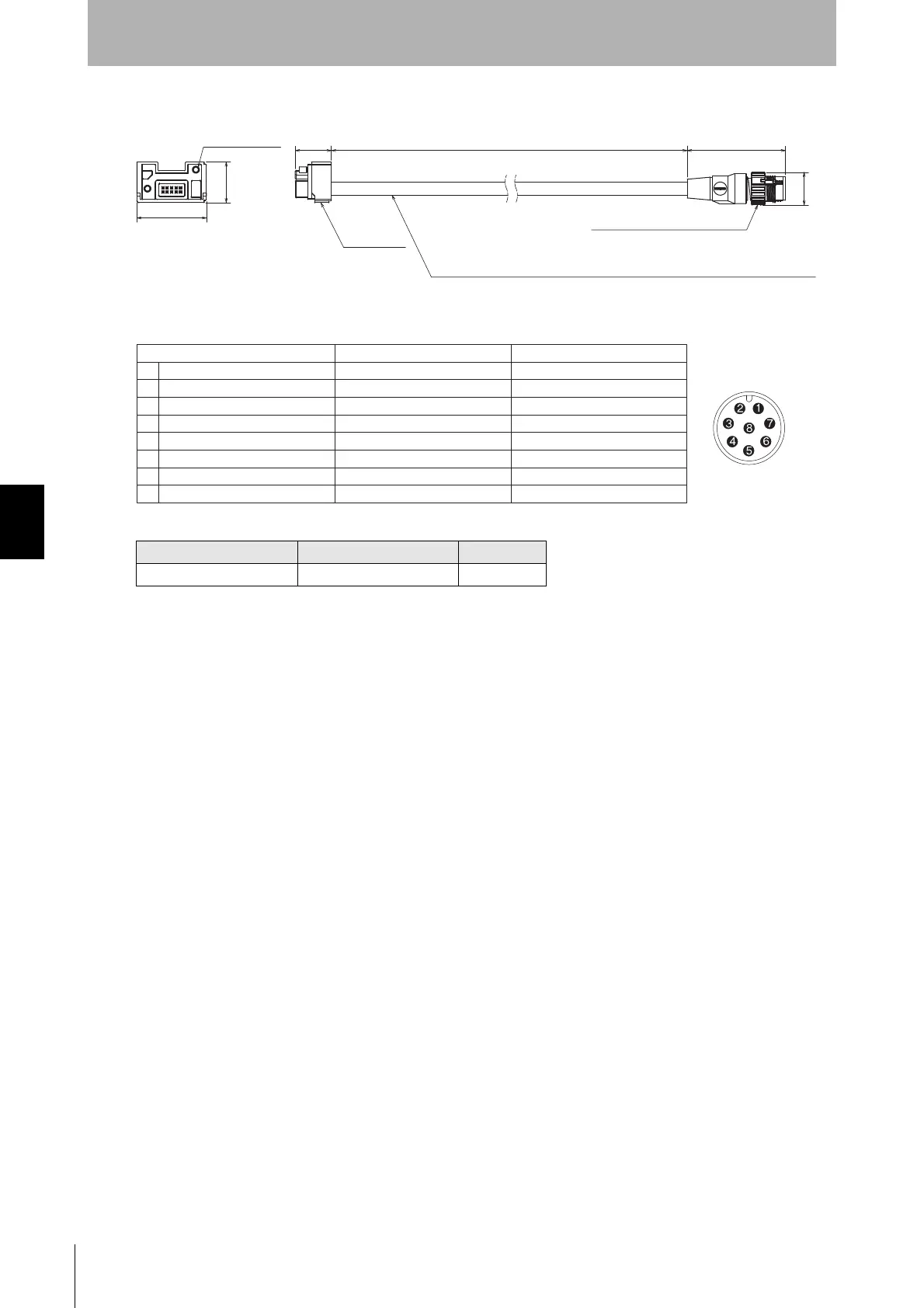

<Internal wiring diagram>
Emitter cable (Gray) Receiver cable (Black) Length
F39-JGR3K-SJ-L F39-JGR3K-SJ-D 0.3 m
Connector
M12 IP67 connector, 8-wire
14.9 dia.
2-M2.5 screw
31.6
18.5
44.7
300
16.4
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5
(Cross section of conductor: 0.2 mm
2
/insulator diameter: dia. 1.1 mm)
(Unit: mm)
Connected to connector of F3SJ-A/-B, F3SR-B or F3SN receiver cable
F3SJ-A/-B
F3SR F3SN
1
2
3
4
5
6
7
8
Safety output 2
+24 VDC
Safety output 1
Auxiliary output 1
Communication line (+)
Communication line (-)
0 VDC
External device monitoring input
Safety output 2
+24 VDC
Safety output 1
Operating range select input
Communication line (+)
Communication line (-)
0 VDC
External device monitoring input
OSSD2
+24 VDC
OSSD1
Auxiliary output
RS-485(A)
RS-485(B)
0 VDC
EDM input
