Chapter5 Dimensions
F3SG-SR
User’s Manual
Wiring and Installation
 Side Mounting
5-3-4-2. Mounting with Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)
- Use the brackets of specified quantities and locations according to the dimensions. The other brackets than described
above may not meet the specified ratings and performance.
- When you use the sensor in a situation where the sensor is under a load, increase the number of the brackets used.
- The Adjustable Side-Mount Bracket allows beam alignment after fixing the bracket to a wall surface. The angle
adjustment range of the Adjustable Side-Mount Brackets is ±15°.

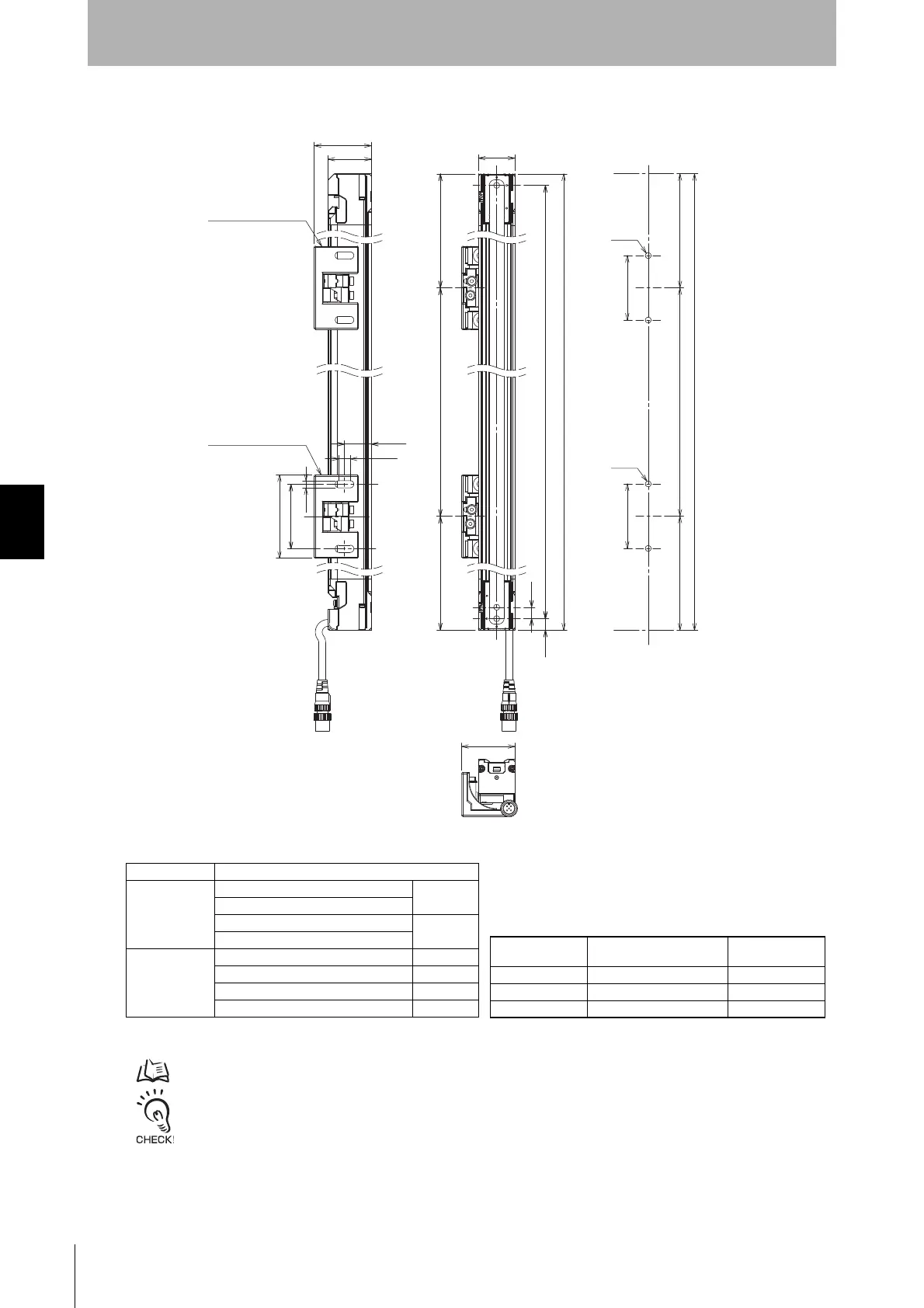

250 max. 250 max. F
10
P
D
56.5
23.5
250 max. F 250 max.
C
56.5 56.5
<Screw: M5 or M6>
38
6.3
73
50
10
46.7
C(Protective height)
32
2-M5
or M6
Adjustable
Side-Mount
Bracket
(F39-LSGA)
Adjustable
Side-Mount
Bracket
(F39-LSGA)
2-M5
or M6
[ Unit : mm ]
*The number of brackets required to mount either one of emitter and receiver.
Dimension C
4-digit number of the type name (Protective height:  )
Dimension D
F3SG-SR-14
C-20
F3SG-SR-25
F3SG-SR-45
C-40
F3SG-SR-85
Dimension P
F3SG-SR-14
10
F3SG-SR-25
20
F3SG-SR-45
40
F3SG-SR-85
80
Protective height
(Dimension C)
Number of Adjustable
Side-Mount Bracket *
Dimension F
0160 to 0280 1 1000 mm max.
0320 to 1440 2 1000 mm max.
1520 to 2480 3 1000 mm max.
