93
F3SG-SR
User’s Manual

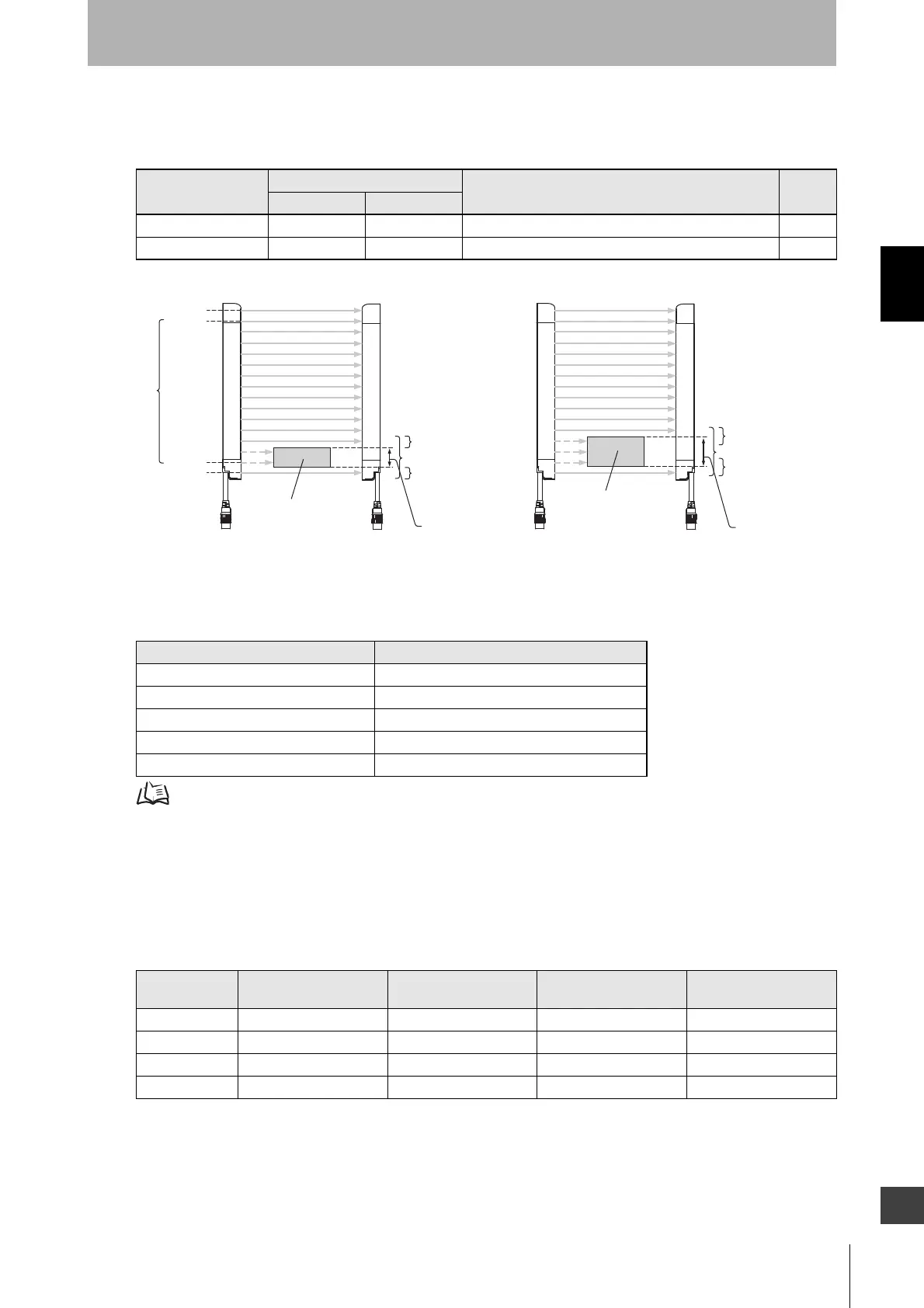

Chapter2 Fixed Blanking
System Operation and Functions
E
• When beams are blocked within the range from [1 beam next to bottom beam] to [1 beam next to top beam]
When beams are blocked within the range from [1 beam next to bottom beam] to [1 beam next to top beam],
allowable beams are configured as follows.
The table below lists the number of allowable beams when a fixed blanking zone and allowable beams
are configured with the SD Manager 3.
Number of allowable beams available for fixed blanking beams
Refer to 3-7-1. Setting Fixed Blanking by Teach-in for more information on Teach-in with the DIP Switch.
Refer to 4-3-4-1. Fixed Blanking for more information on setting a fixed blanking zone with the SD Manager 3.
For detection capability on the border between the blanking zone and normal detection zone when
allowable beam is configured, see next table.
Detection capability on the border between the blanking zone and normal detection zone when
allowable beam is specified.
[mm]
 LED indicator status
When the Fixed Blanking is being enabled, the CFG indicator turns on.
Number of blocked
beams
Number of allowable beams
Zone with allowable beam configured
Figure
No.
Upper Lower
1 or 2 1 1 Outside the blocked zone Fig. 5
3 or more 2 2 1 beam each for outside and inside the blocked zone Fig. 6
Number of fixed blanking beams Maximum number of allowable beams
1 Setting not possible
21
32
43
n n-1
Allowable beam
on one end
F3SG-SR-14 F3SG-SR-25 F3SG-SR-45 F3SG-SR-85
Disable 14 (same as nominal) 25 (same as nominal) 45 (same as nominal) 85 (same as nominal)
1 beam 24 45 85 165
2 beams 34 85 125 245
n beams 14+(10×n) 25+(20×n) 45+(40×n) 85+(80×n)
1 or 2 beams
are blocked
Fig. 5
Allowablebeam
(1beamoutside
theblockedzone)
Fixed blanking zone
Blocked zone
Upper
Lower
3 or more beams
are blocked
Fig. 6
Fixed blanking zone
Blocked zone
Bottom beam
1beam
nextto
top
beam
Blocked
within
thisrange
Top beam
1beam
nextto
bottom
beam
Allowablebeam
(1beamoutside
theblockedzone)
Allowable beams
(1 beam each for
outside and inside
the blocked zone)
Allowable beams
(1 beam each for
outside and inside
the blocked zone)
