145
F3SG-SR
User’s Manual
Chapter3 Teach-in (Fix Blanking / Floating Blanking)
Setting with Intelligent Tap
E
Others
• When the Teach-in is performed with the all Fixed Blanking zone being unblocked, the Fixed
Blanking is configured as Disabled. Teach-in is available under cascade connection as well. In such
a case, use the Push Switch on the Intelligent Tap or the muting input A to perform Teach-in with the
similar steps.

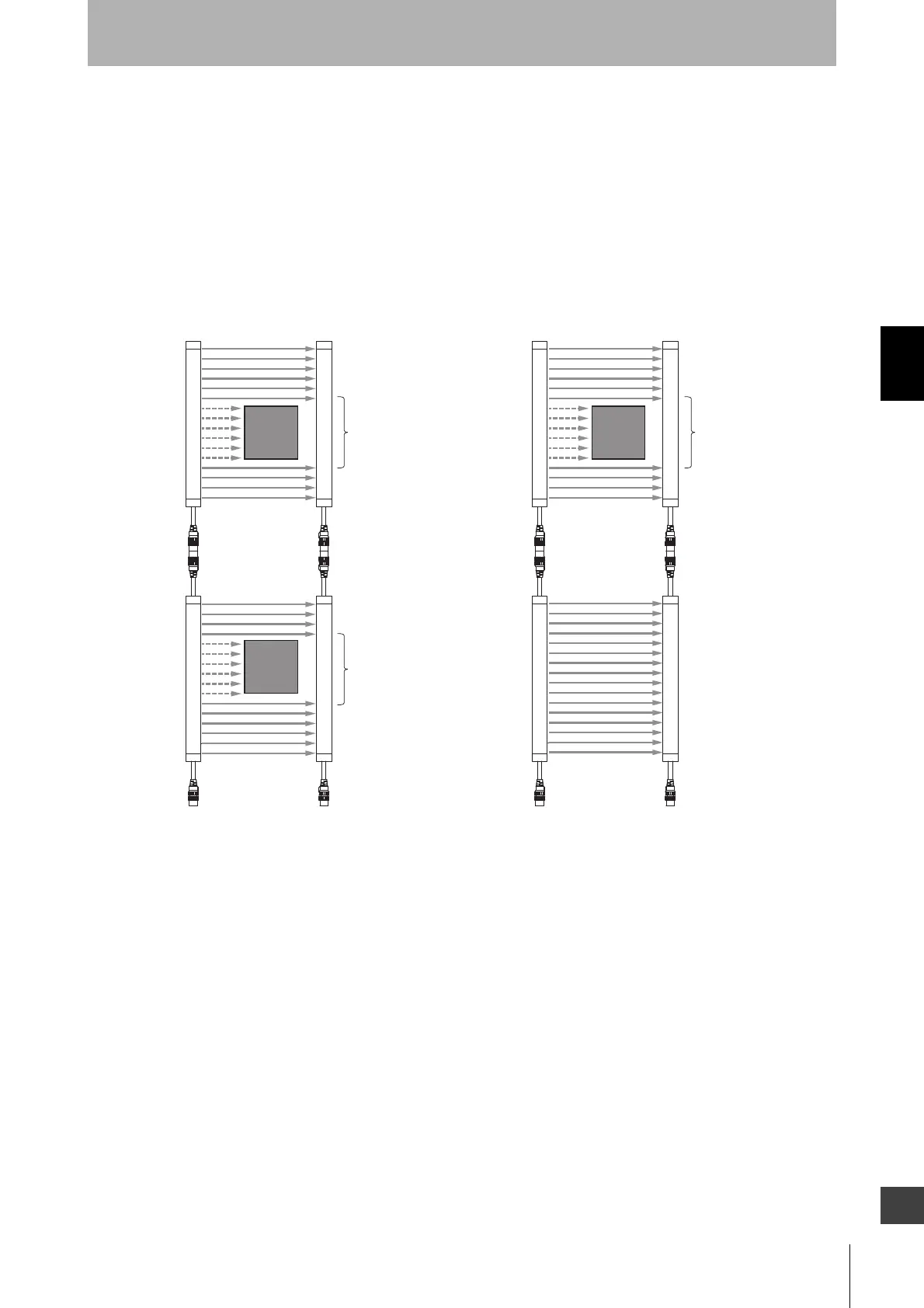

• When the F3SG-SR is in the cascade connection, the Teach-in setting is performed for each channel
independently. This allows different F3SG-SR's to have different Teach-in settings depending on the
position or size of the blocking object. For example, when the secondary sensor (Channel 2) of the
F3SG-SR is blocked, that secondary sensor (Channel 2) only has the Fixed Blanking setting.
• The Teach-in result for Fixed Blanking and Floating Blanking cannot be saved together. When the
Teach-in is ferformed for Floating Blanking, the result of the Teach-in for Fixed Blanking is cleared.
Upper Upper
Lower
11th beam
10th beam
Fixed Blanking zone
Secondary sensor
(Channel 2)
Secondary sensor
(Channel 2)
Primary sensor
(Channel 1)
Primary sensor
(Channel 1)
5th beam
4th beam
Lower
Upper Upper
Lower
13th beam
12th beam
Fixed Blanking zone
Fixed Blanking zone:
6th to 13th beams
Allowable beam:
2 lower beams/2 upper beams
6th & 7th beams
12th & 13th beams
Fixed Blanking zone:
4th to 11th beams
Allowable beam:
2 lower beams/2 upper beams
4th & 5th beams
10th & 11th beams
7th beam
6th beam
Lower
Upper Upper
Lower
11th beam
10th beam
Fixed Blanking zone
5th beam
4th beam
Lower
Upper Upper
Lower
Fixed Blanking: Disabled
Fixed Blanking zone:
4th to 11th beams
Allowable beam:
2 lower beams/2 upper beams
4th & 5th beams
10th & 11th beams
Lower
To Next Page
